Description
The Acouline Cell Hanging Acoustic Screen provides a patterned acoustic divider for open-plan offices, learning spaces and collaborative interiors. Its suspended vertical form helps mark the boundary between activities, while the PET material contributes sound absorption to a room that might otherwise contain predominantly hard surfaces.
The Cell design can be repeated between workstation groups or alongside communal tables to create a consistent visual boundary. Open sections retain light and sightlines, supporting separation without fully enclosing the area. Consider the width of the zone, furniture positions and circulation routes when planning the number and placement of screens.
Each screen is 1200mm wide, with 2400mm or 2700mm height options and a choice of 12mm or 24mm thickness. The 100% polyester (PET) material has a supplier-listed NRC of 0.85. Choose the dimensions to suit the available ceiling height and planned clearance, then coordinate the screen with other ceiling acoustic treatments where additional overhead absorption is part of the room design.
The 14-colour Habitat palette makes it easy to carry a consistent finish across the Acouline acoustic range. Rapidline lists a Group 1 fire classification under AS 5637.1 and a 10-year warranty. Ceiling-grid and solid-ceiling mounting options are available, with two saddle-clip kits matched to the selected panel thickness.
Key Features:
- Cell precision-cut hanging acoustic screen for commercial interiors
- Creates a visual boundary while allowing light and sightlines through
- Sound-absorbing construction made from 100% polyester (PET)
- 1200mm wide with 2400mm or 2700mm height options
- Choice of 12mm or 24mm panel thickness
- Supplier-listed acoustic rating: NRC 0.85
- 14 Habitat colours for coordinated office and education fitouts
- Optional ceiling-grid or solid-ceiling saddle clips, matched to thickness
- Each mounting option includes the two required hanging kits
- Group 1 fire classification under AS 5637.1, as listed by Rapidline
- Backed by a 10-year warranty
Specifications:
- Material: 100% polyester (PET)
- Width: 1200mm
- Heights: 2400mm or 2700mm
- Thicknesses: 12mm or 24mm
- Acoustic rating: Supplier-listed NRC 0.85
- Fire classification: Group 1 (AS 5637.1), tested to AS ISO 9705-2003 (R2016), as listed by Rapidline
- Sale unit: One screen
Mounting Options:
Each screen requires two hanging kits. Select No Mounts for the screen only, Ceiling Grid Saddle Clips for a suitable suspended grid, or Solid Ceiling Saddle Clips for a suitable solid-ceiling installation. The mounting option adds two matching kits to the screen price.
The 12mm screen options use AH-CGSAD12SL or AH-STASAD12SL. The 24mm options use AH-CGSAD24SL or AH-STASAD24SL. Fixings must suit the ceiling substrate and load requirements.
For rooms combining open work areas, meeting zones and displays, explore our acoustic solutions for shared spaces to plan the remaining treatment.

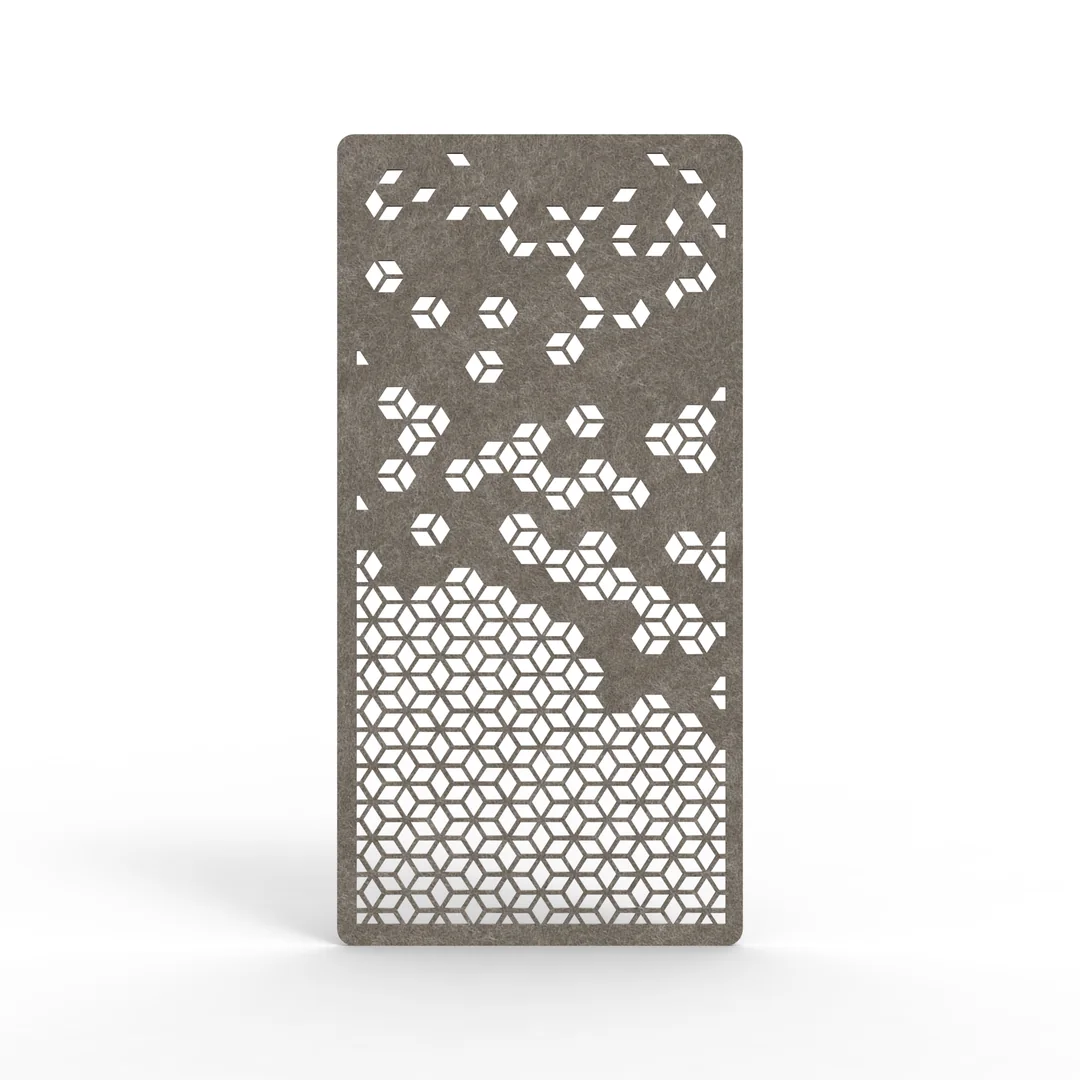

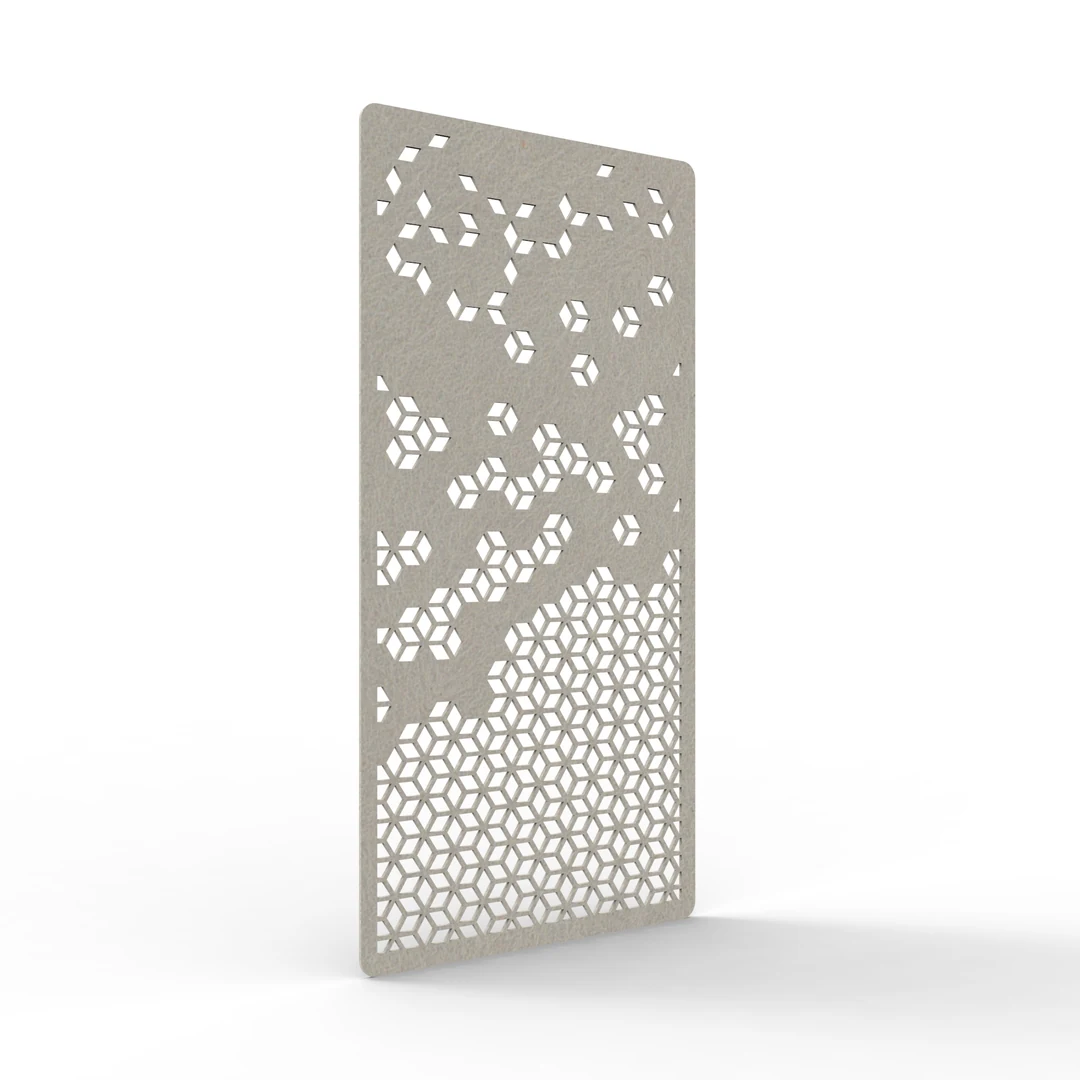

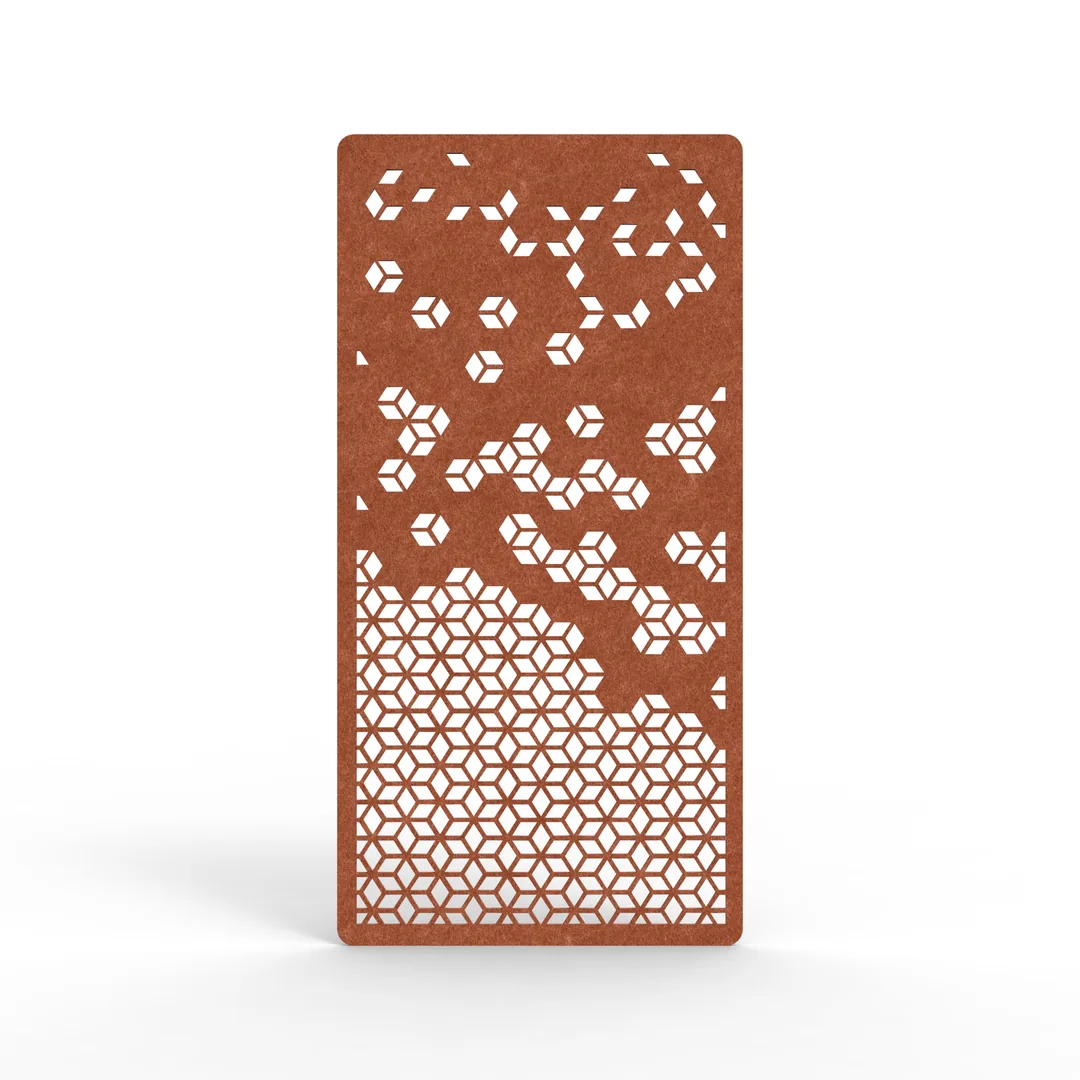

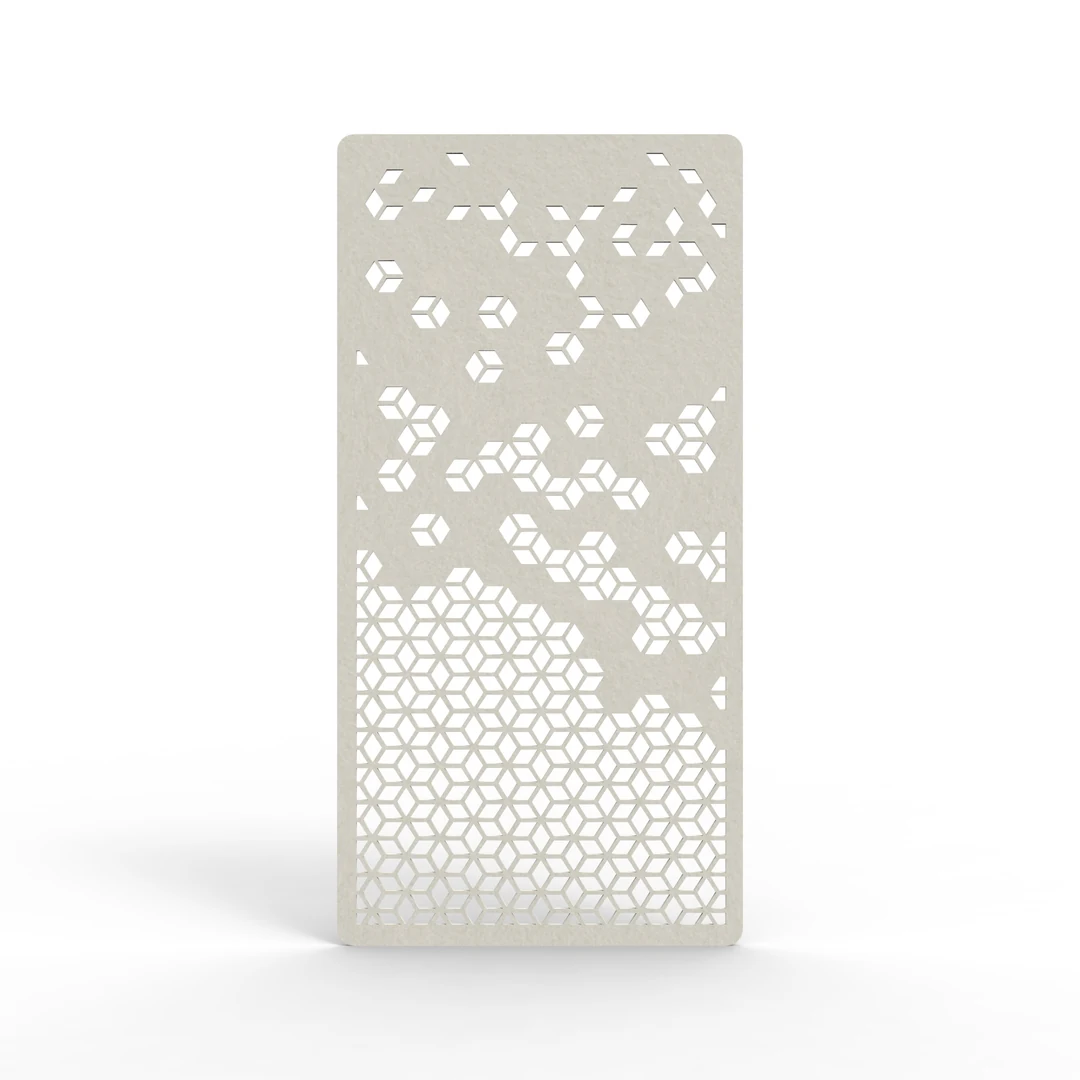

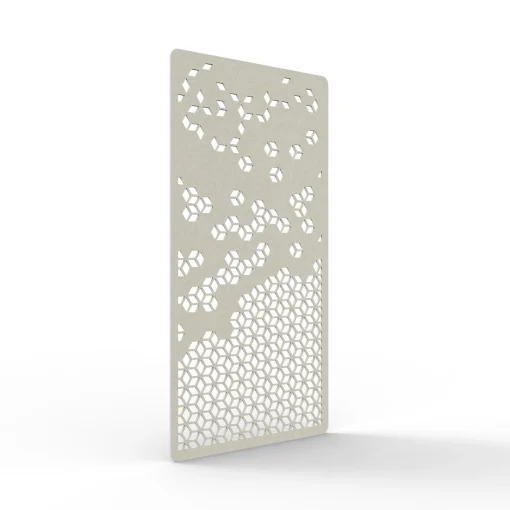

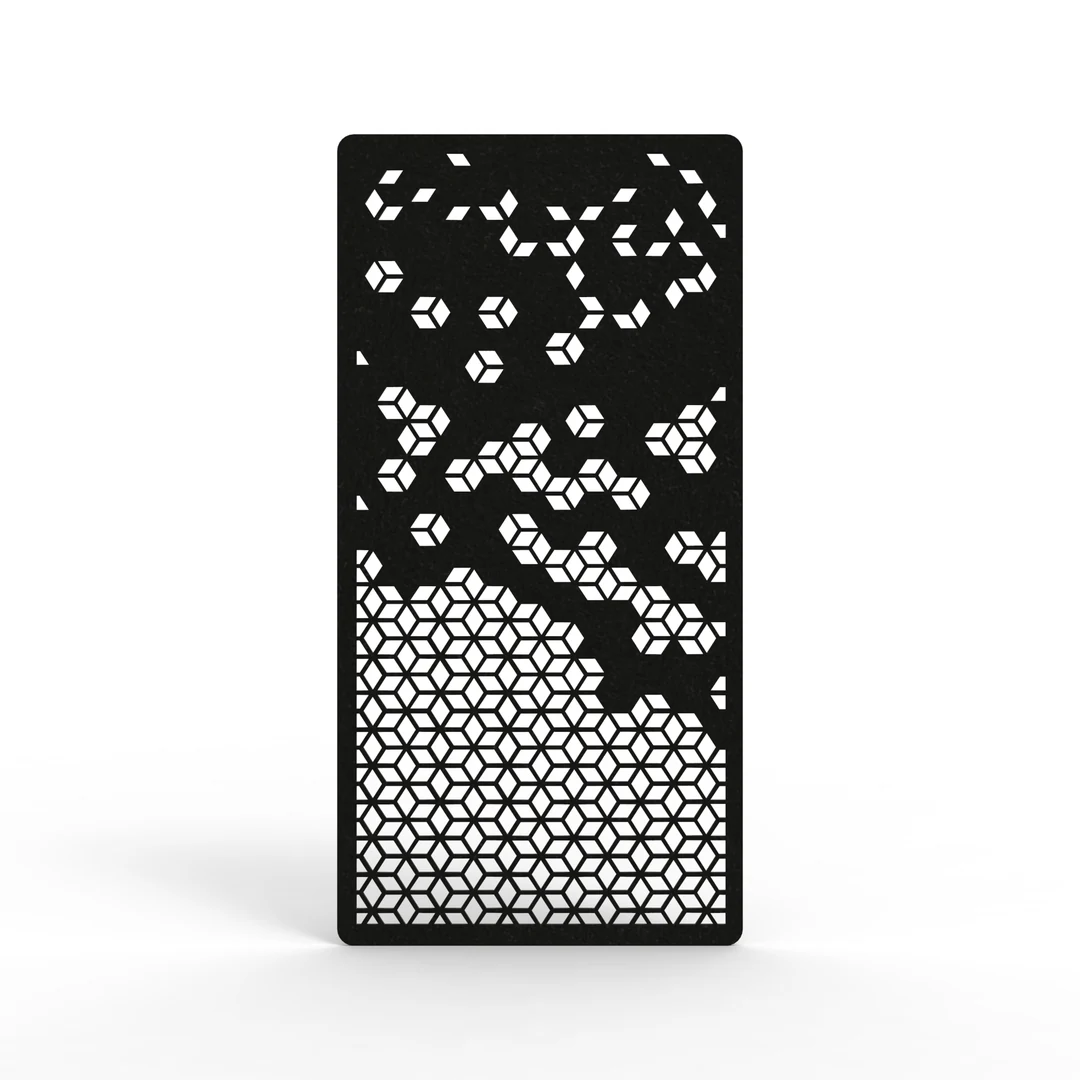

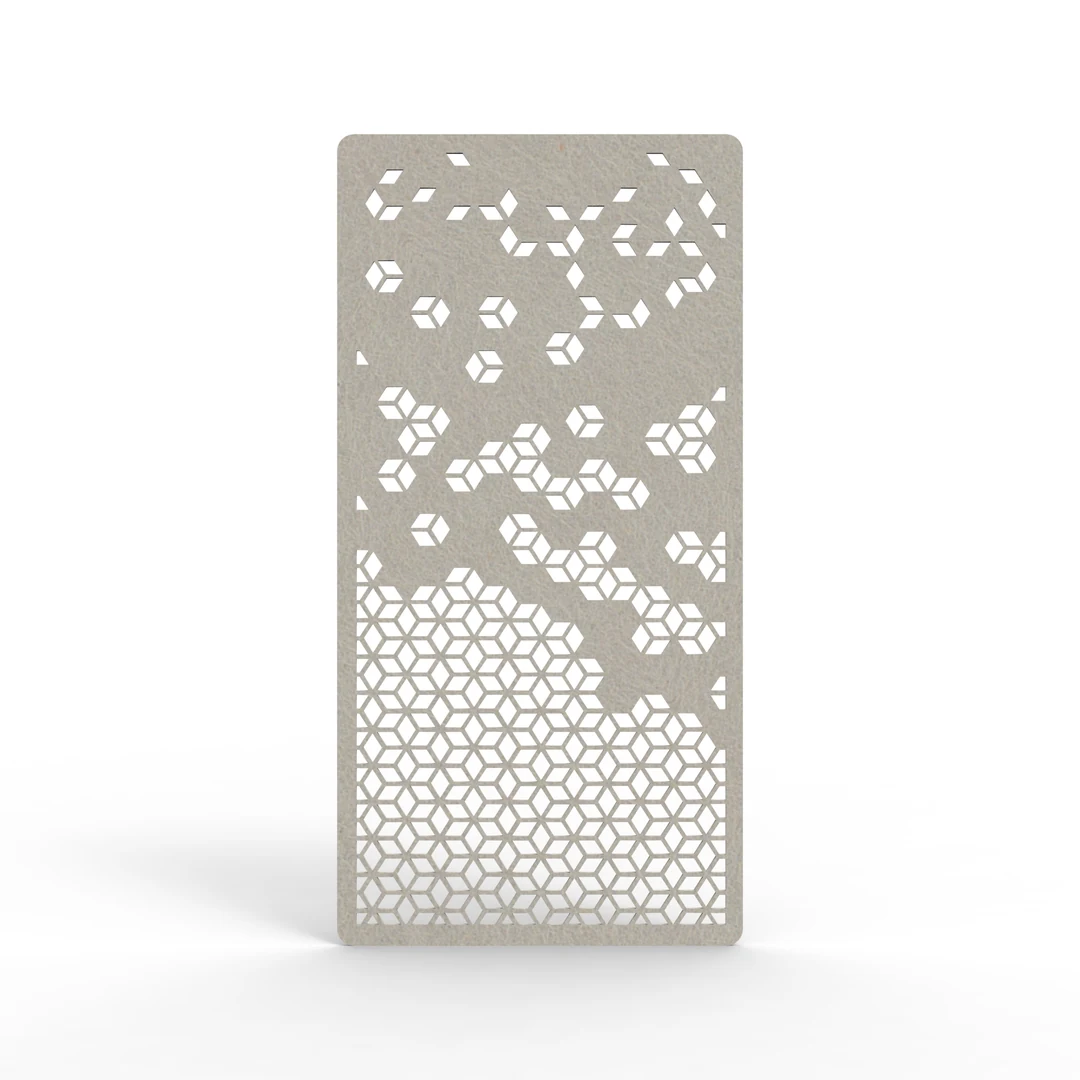

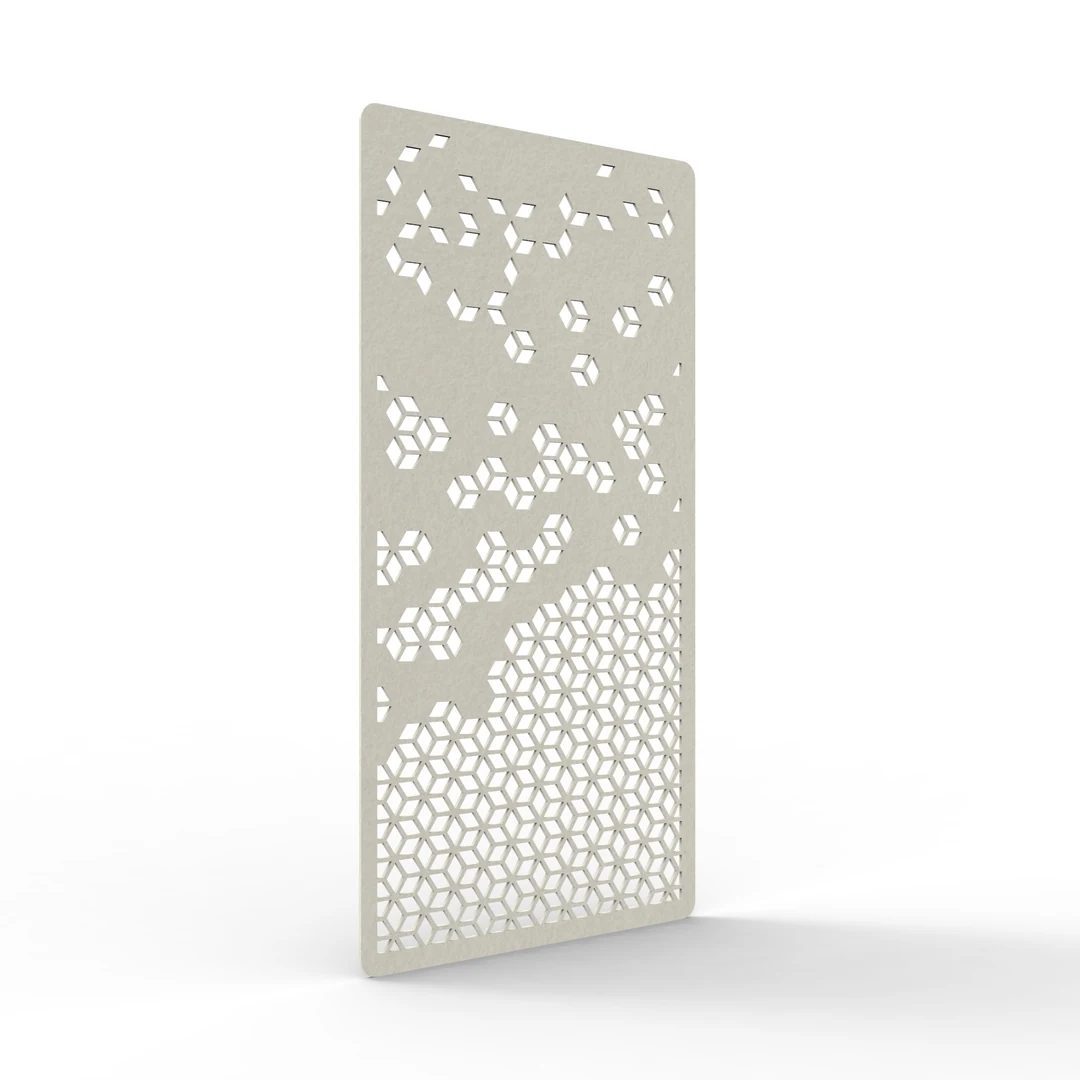

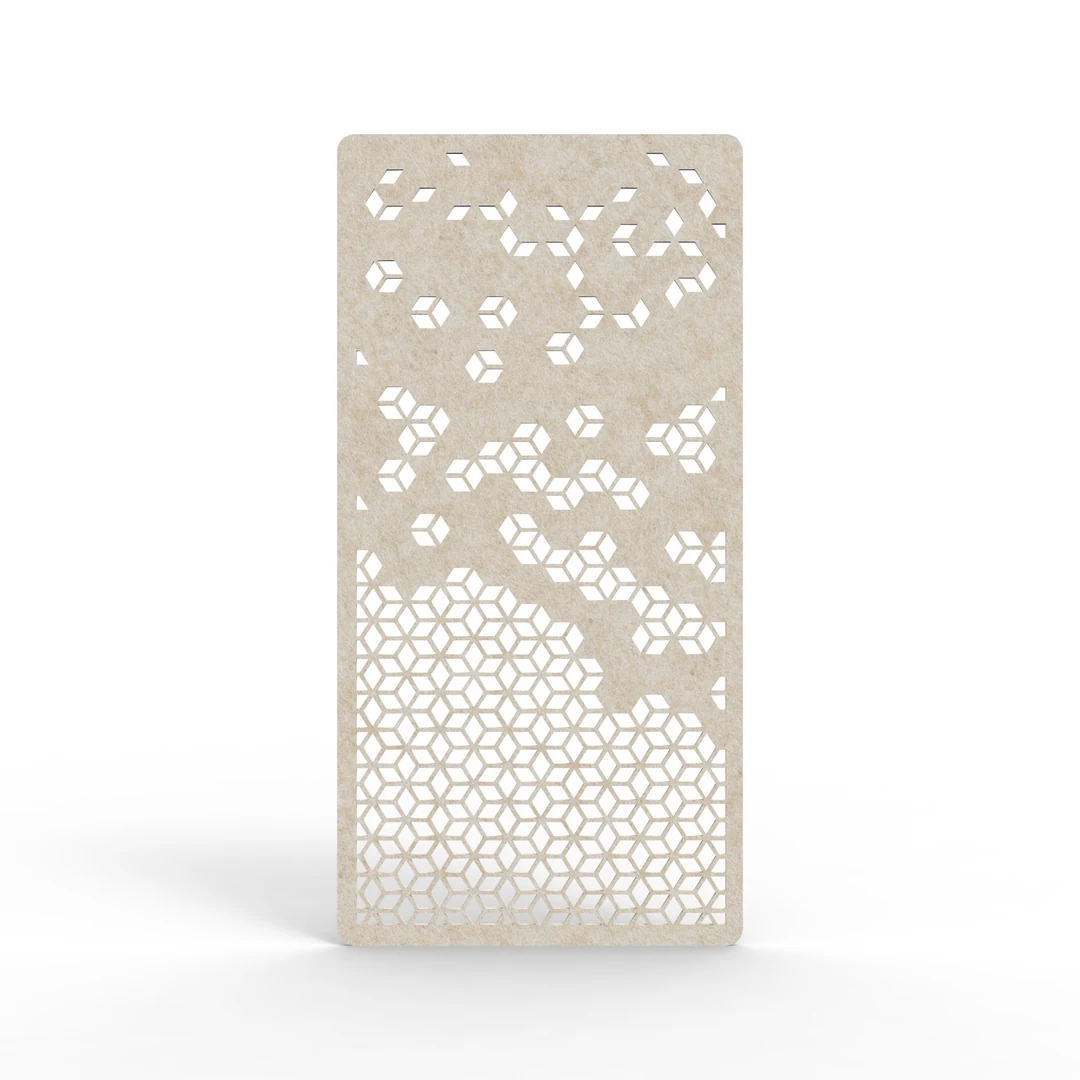

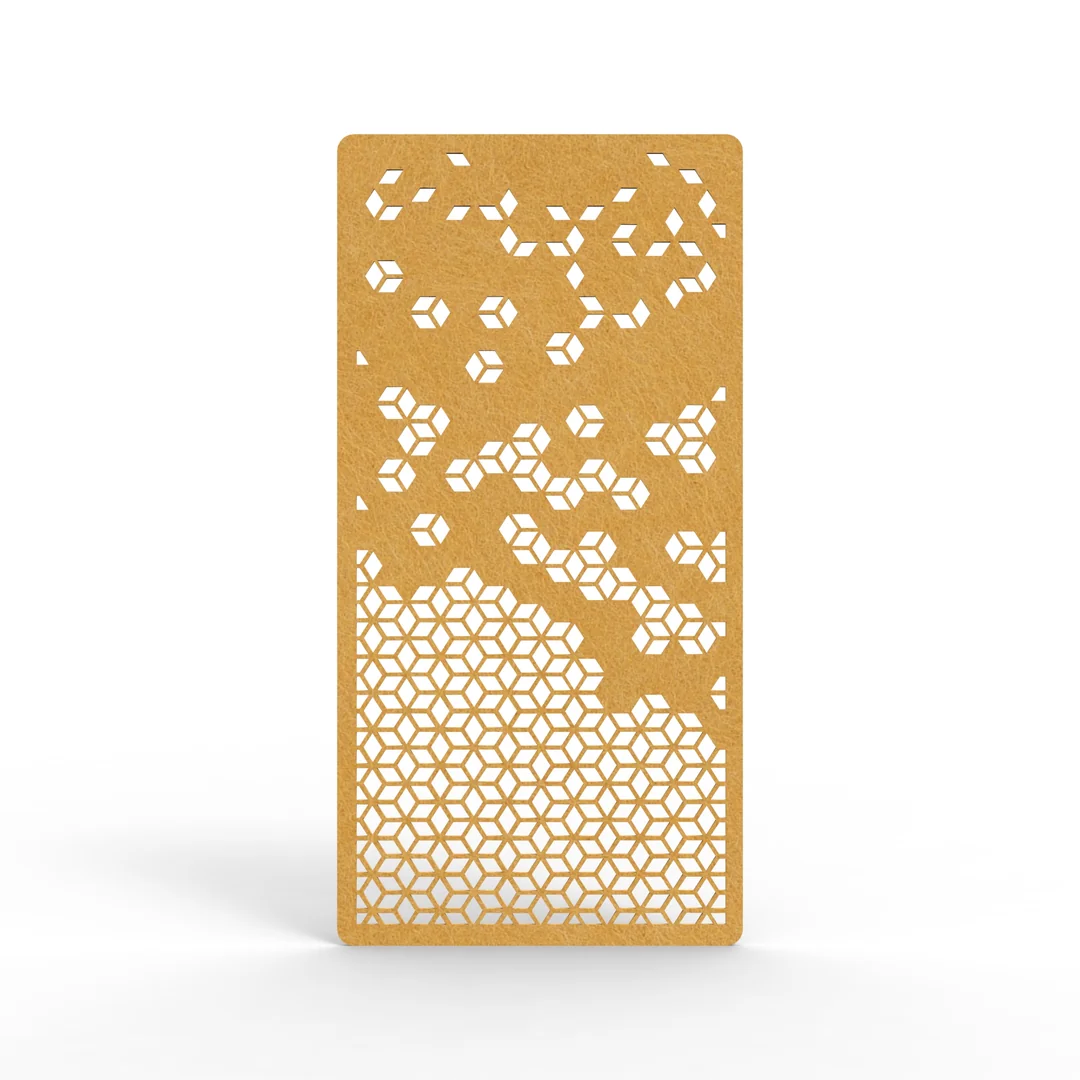

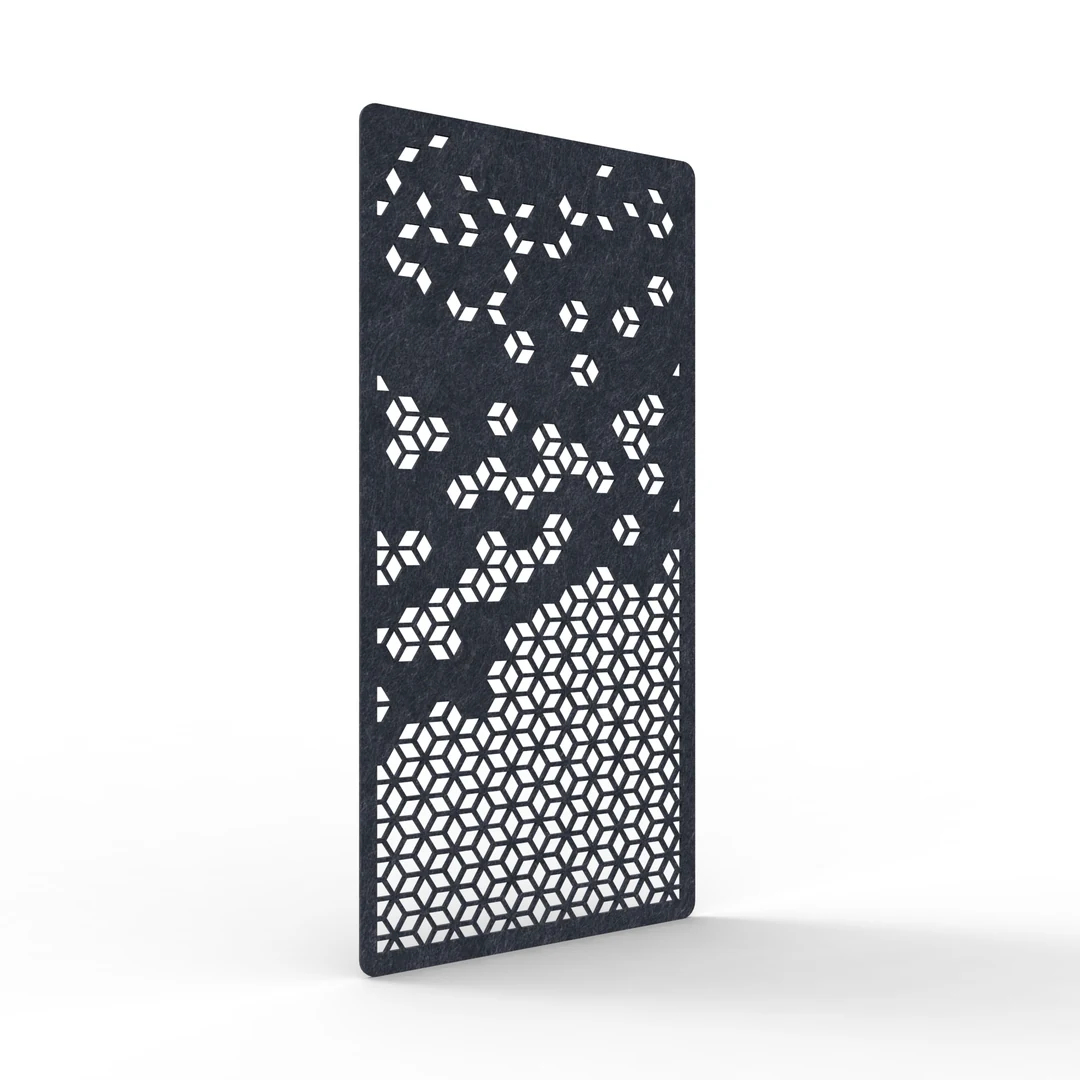

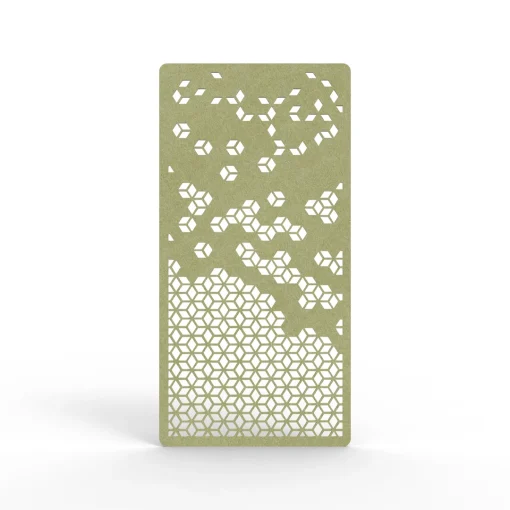

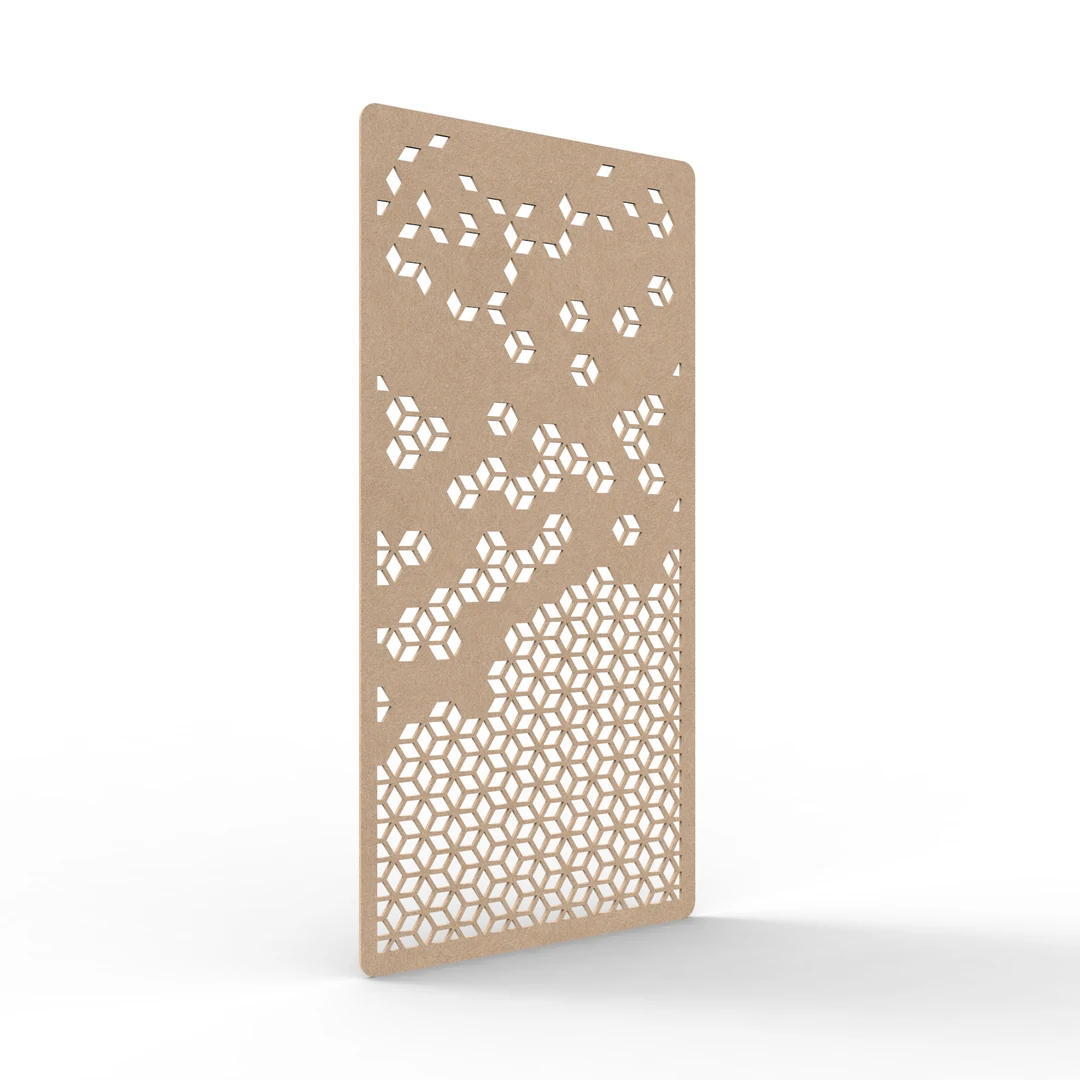

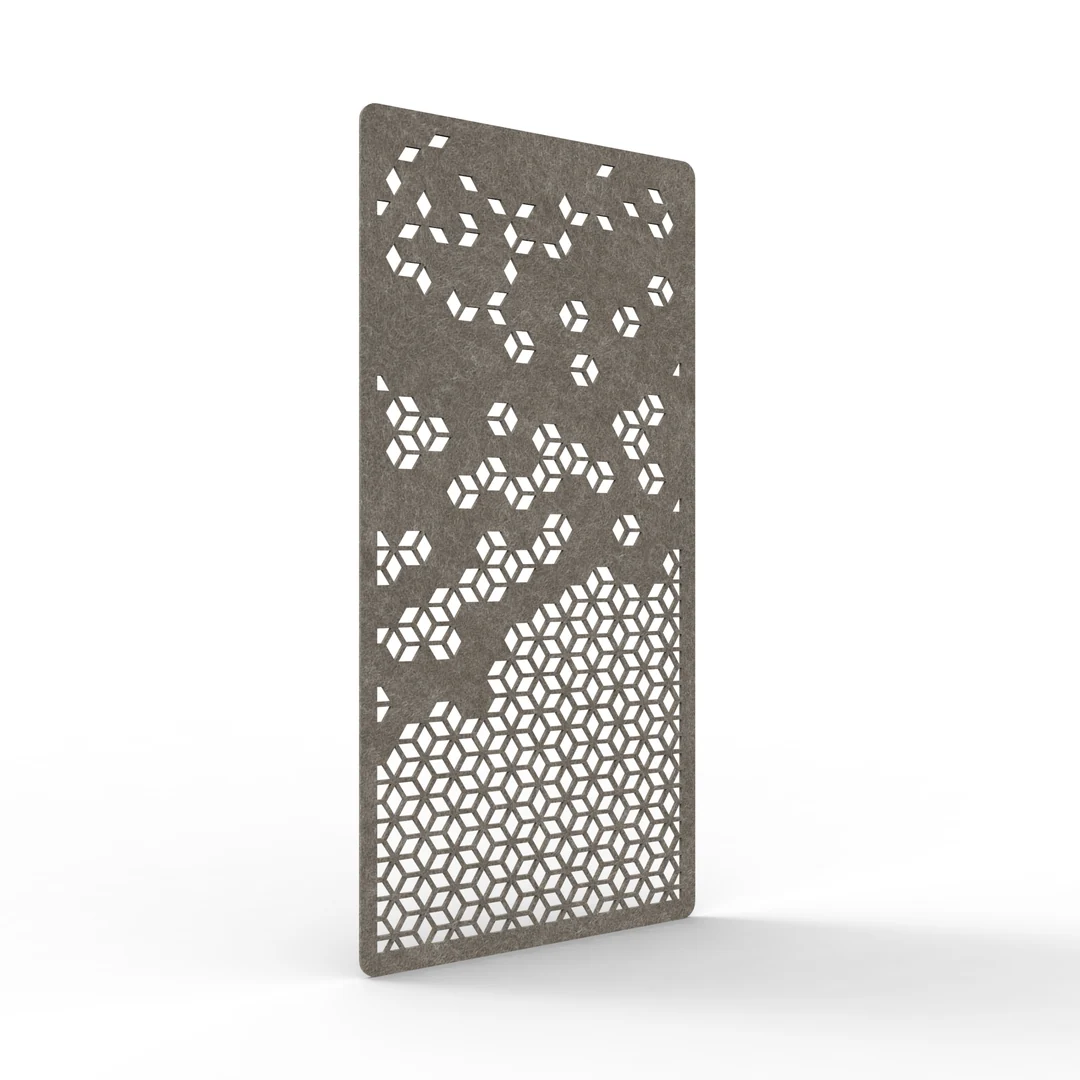

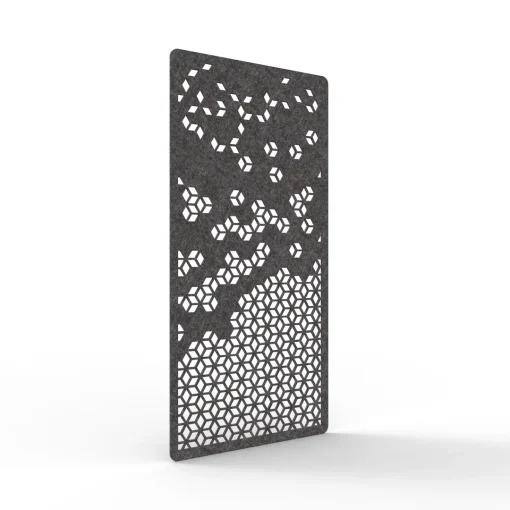

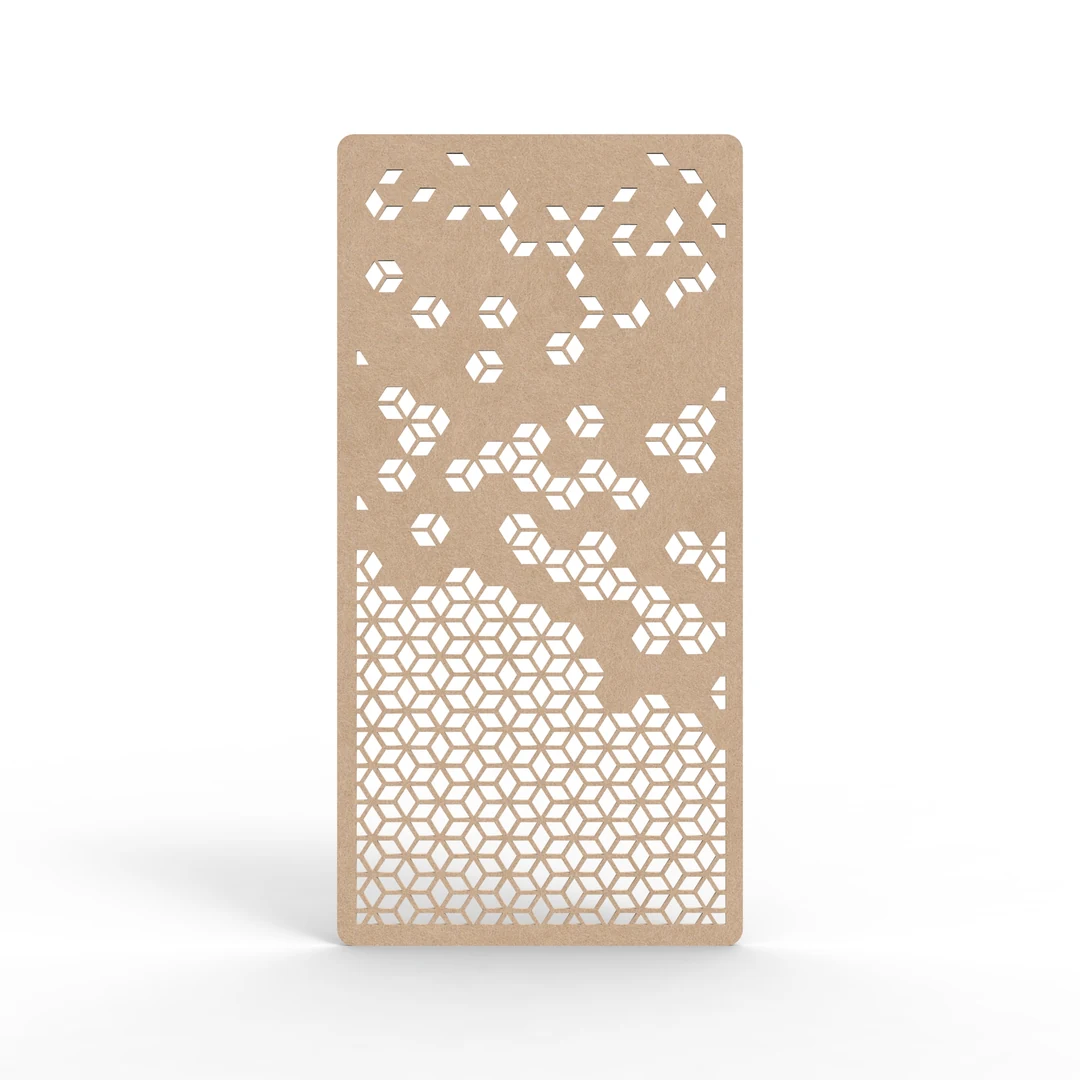

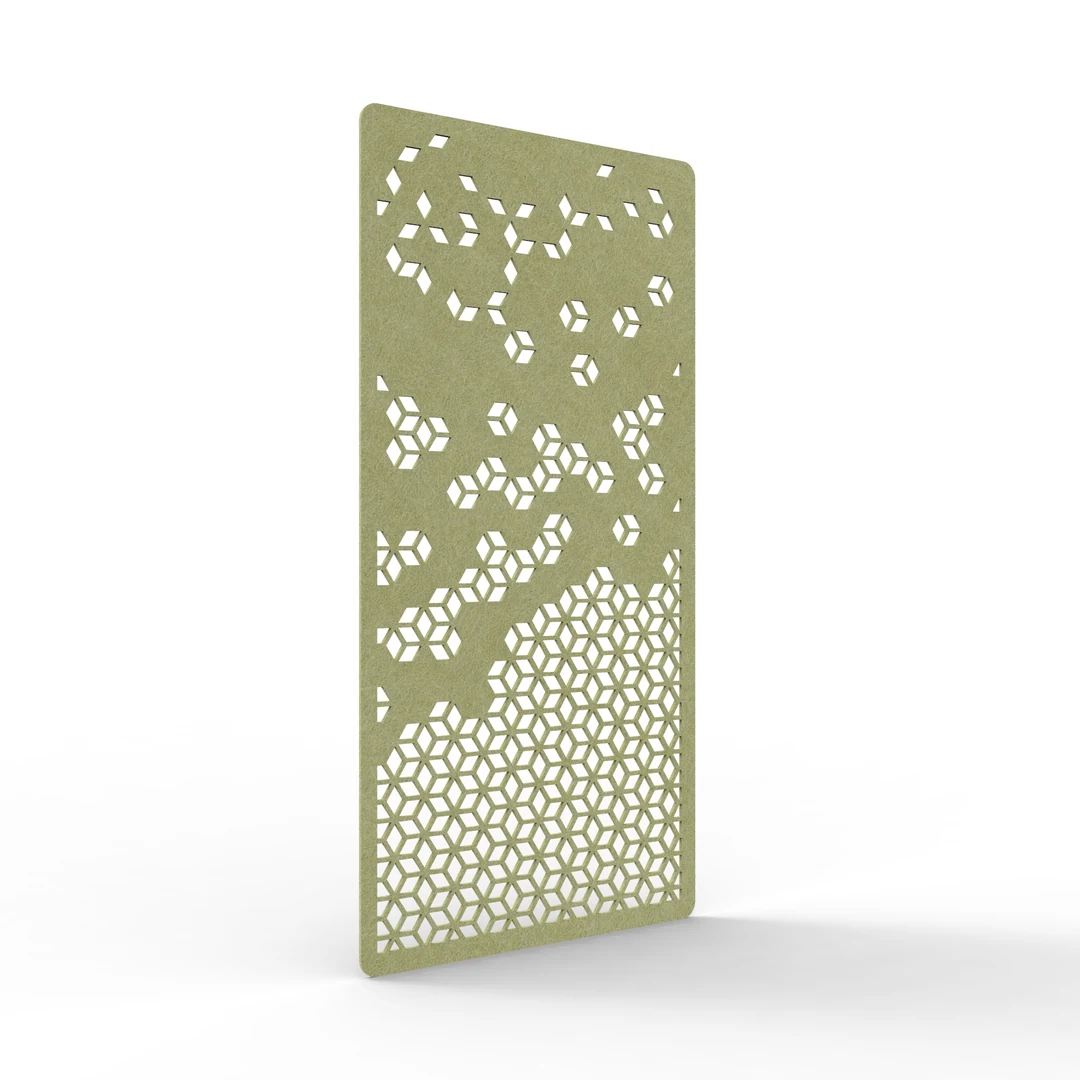

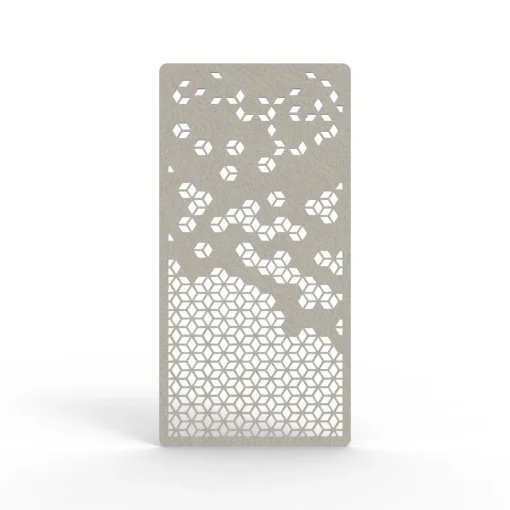

Images show representative sizes and colour examples from this product range. Refer to your selected dimensions when ordering.
