Description
The Acouline Frameless Acoustic Pinboard combines a practical noticeboard with sound-absorbing PET material for offices, classrooms and collaborative workspaces. Use the pinnable surface to display team updates, teaching resources, plans or project ideas while adding acoustic treatment to a wall that would otherwise reflect sound back into the room.

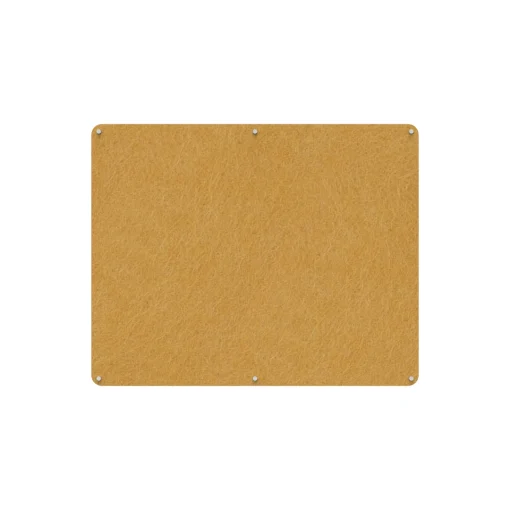

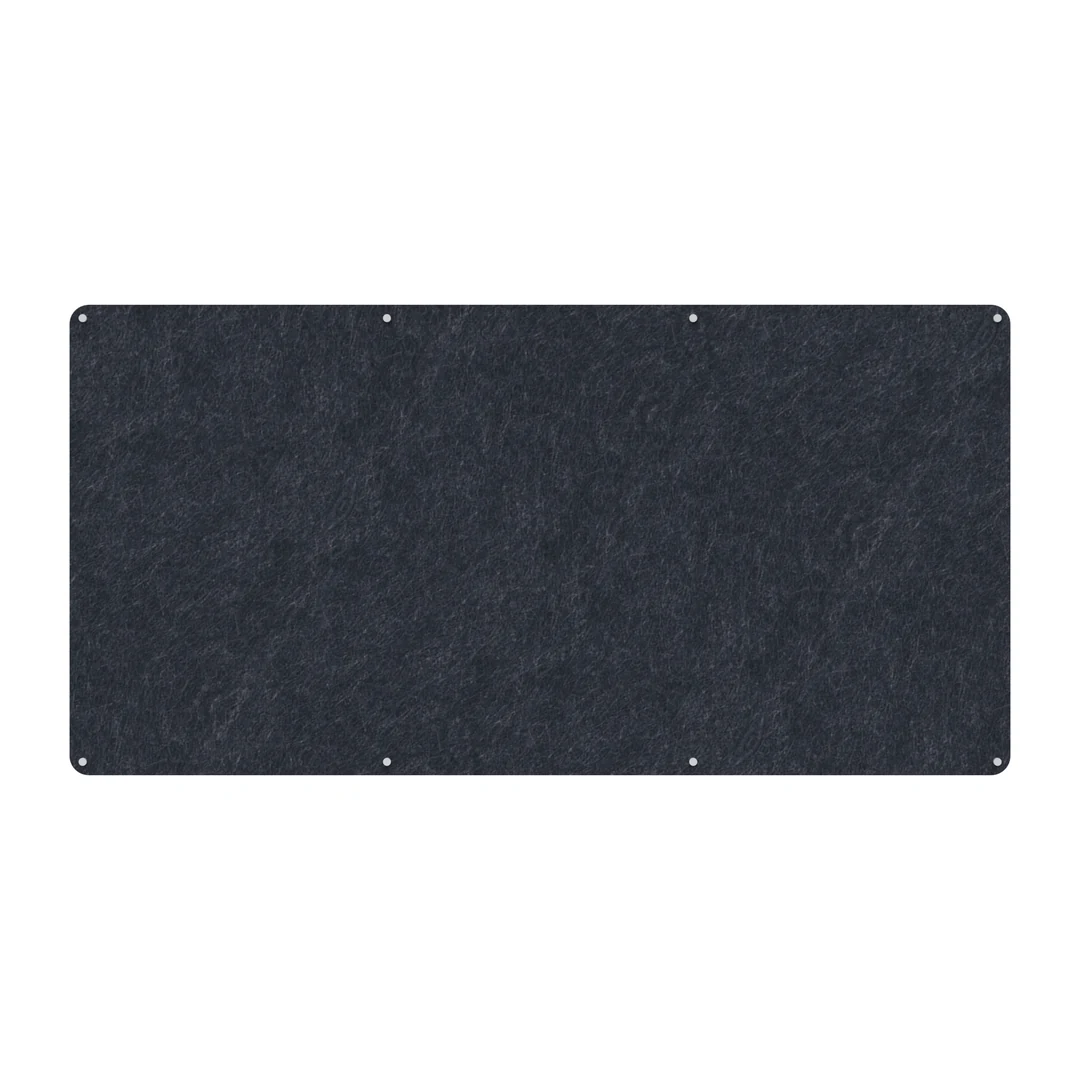

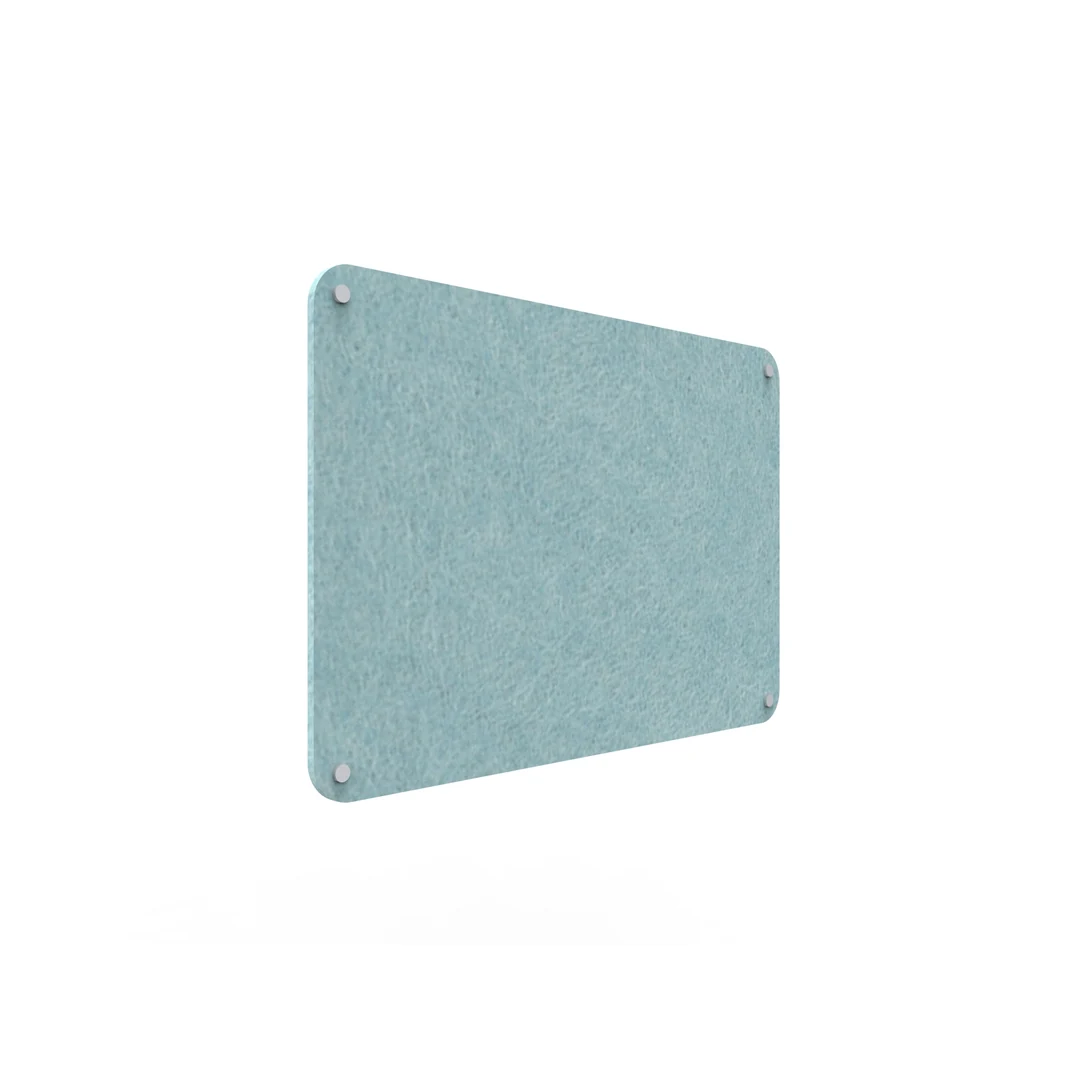

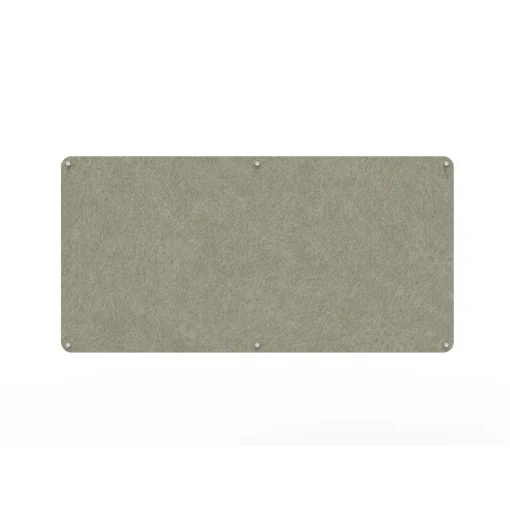

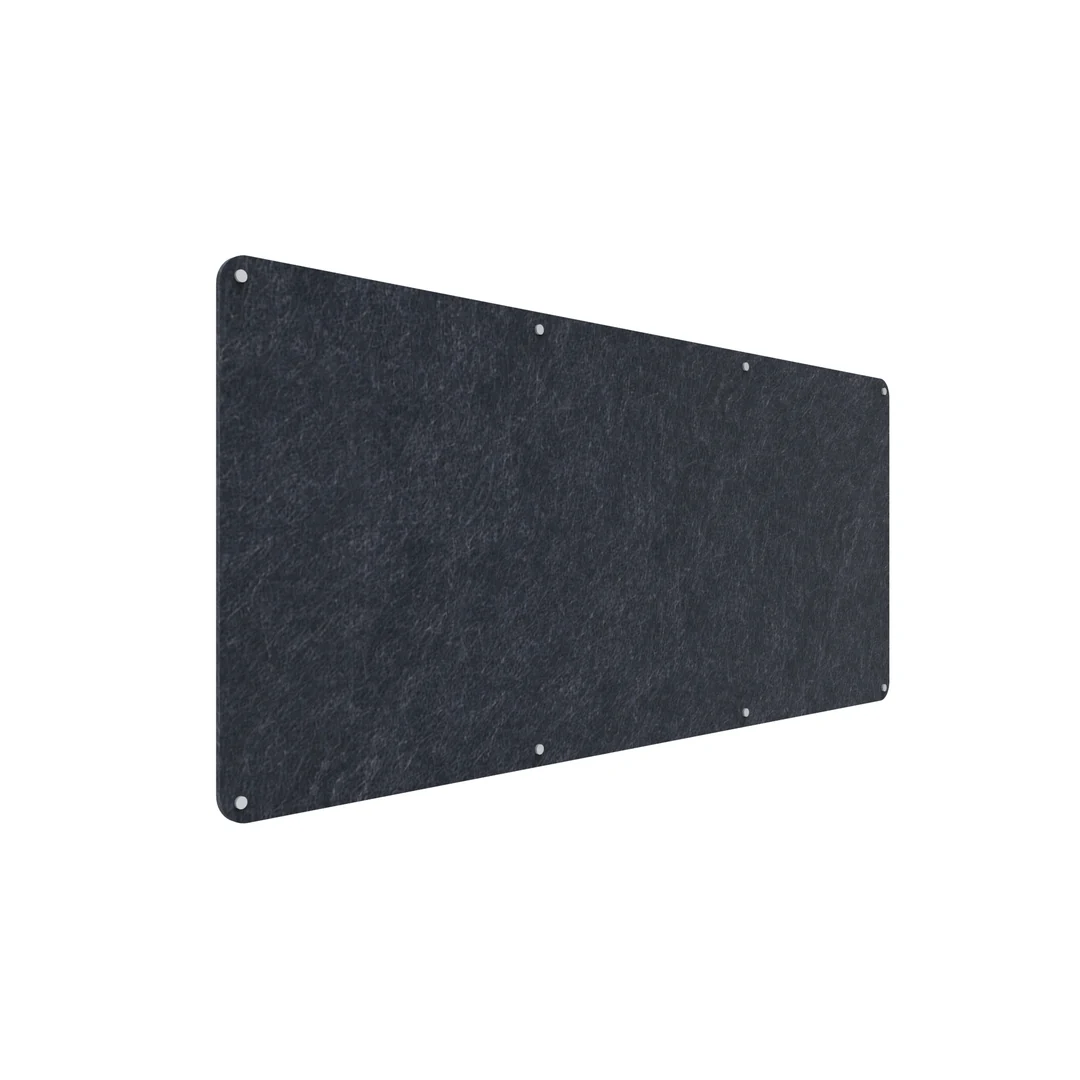

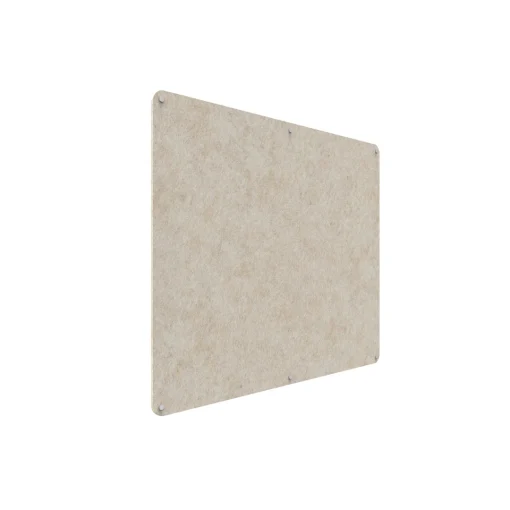

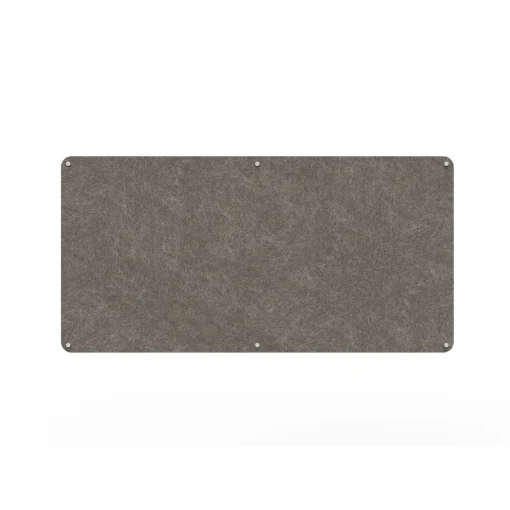

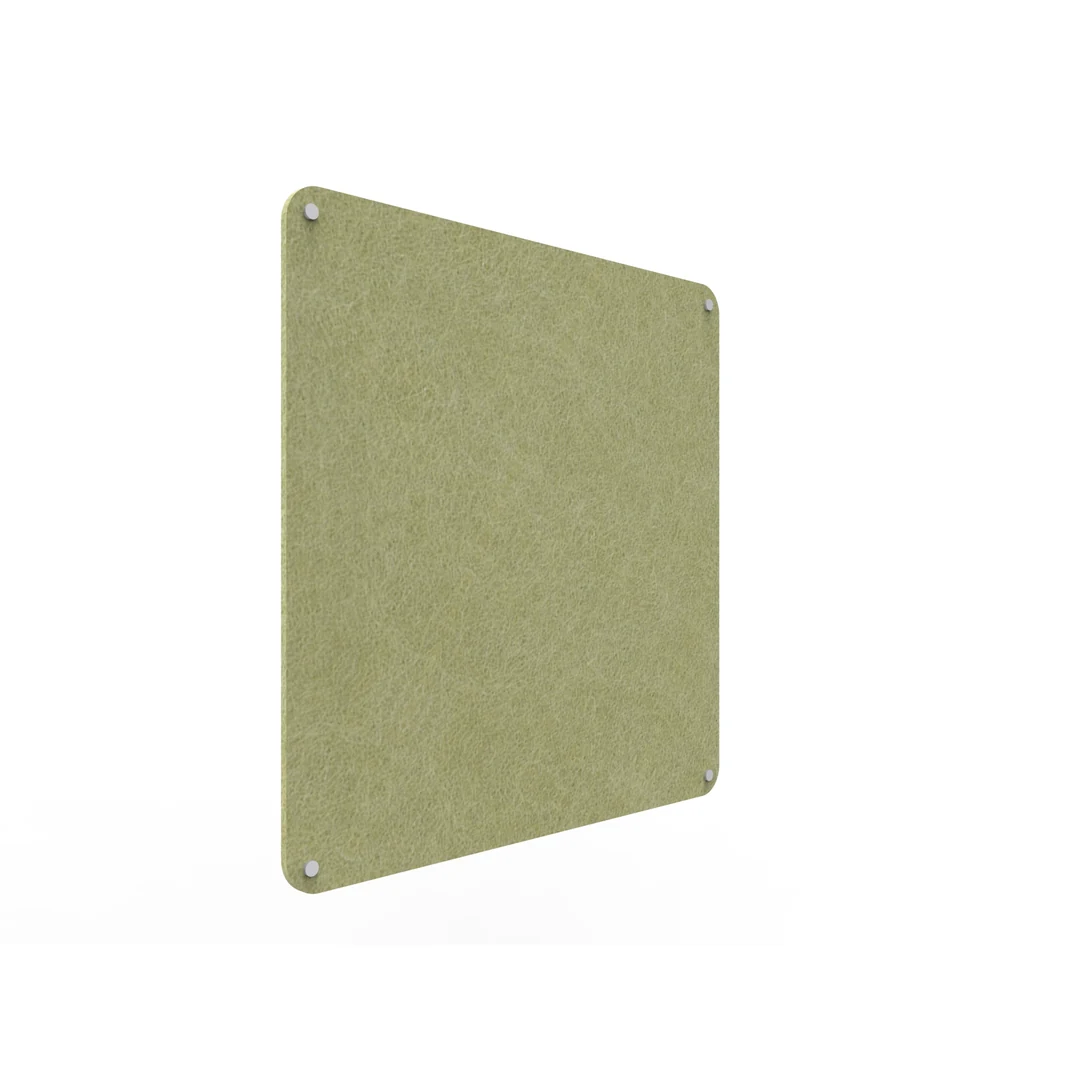

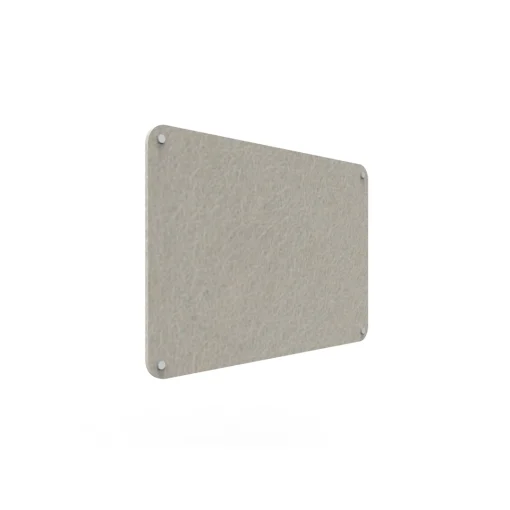

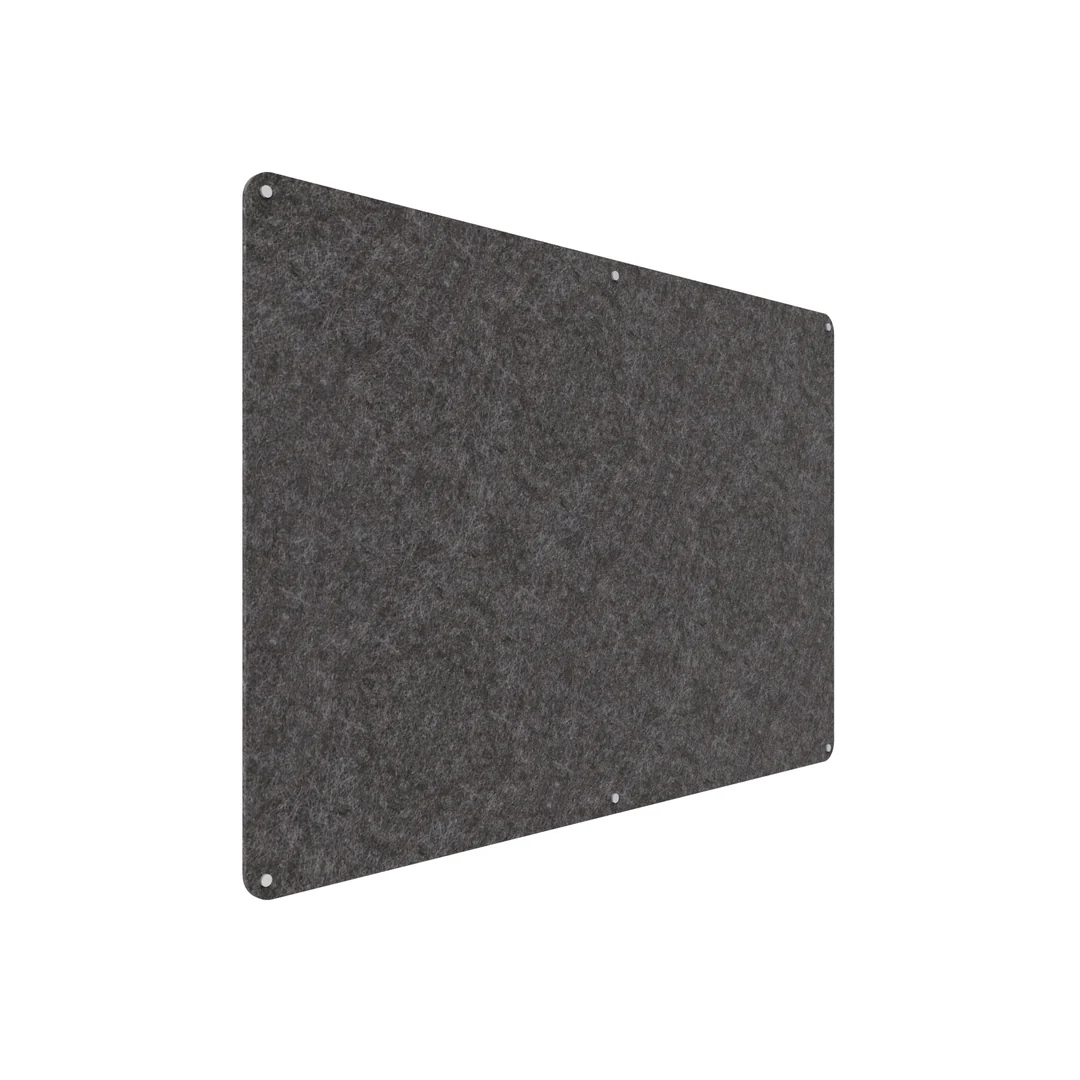

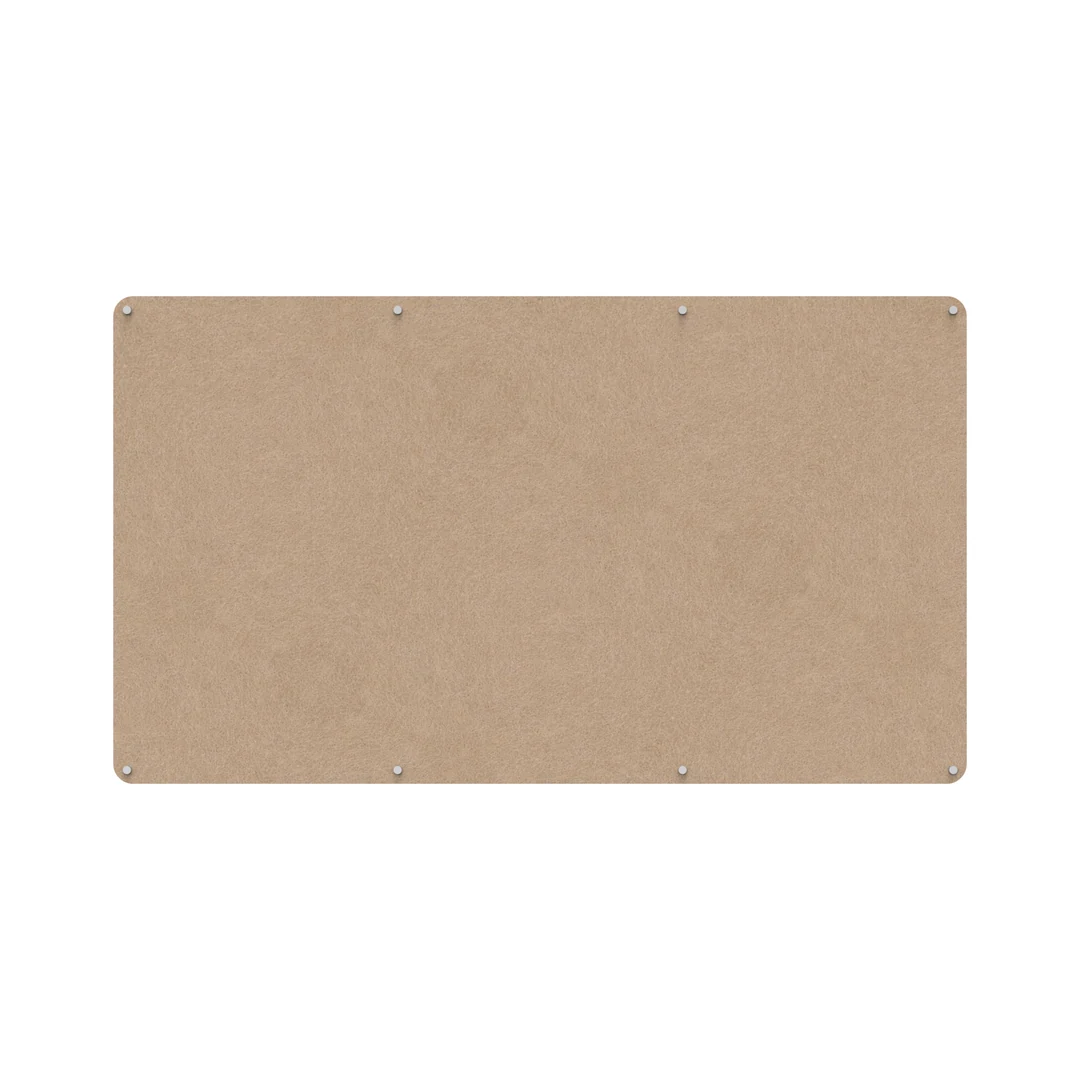

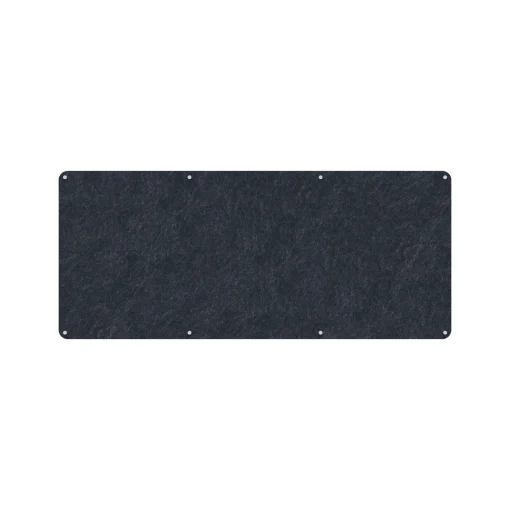

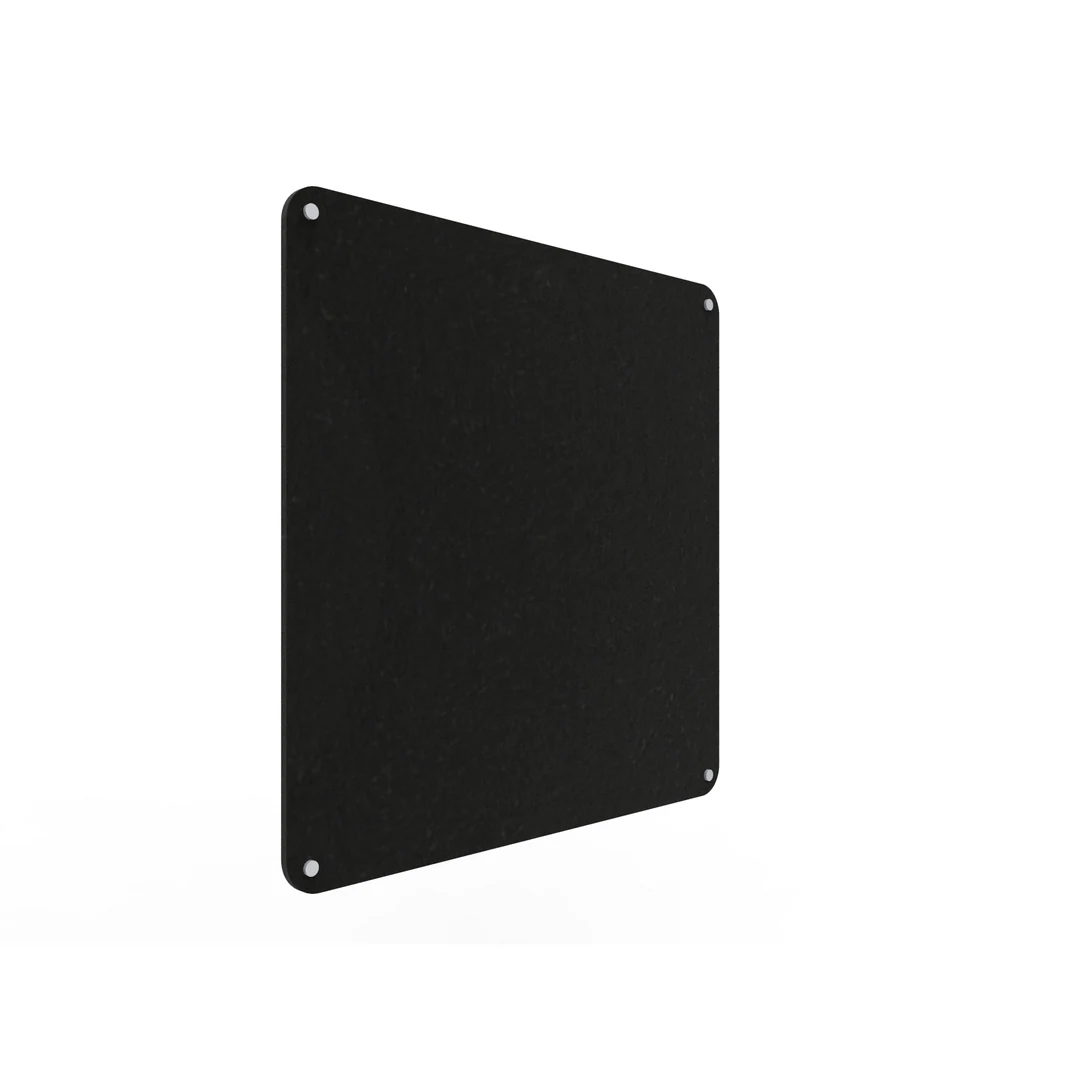

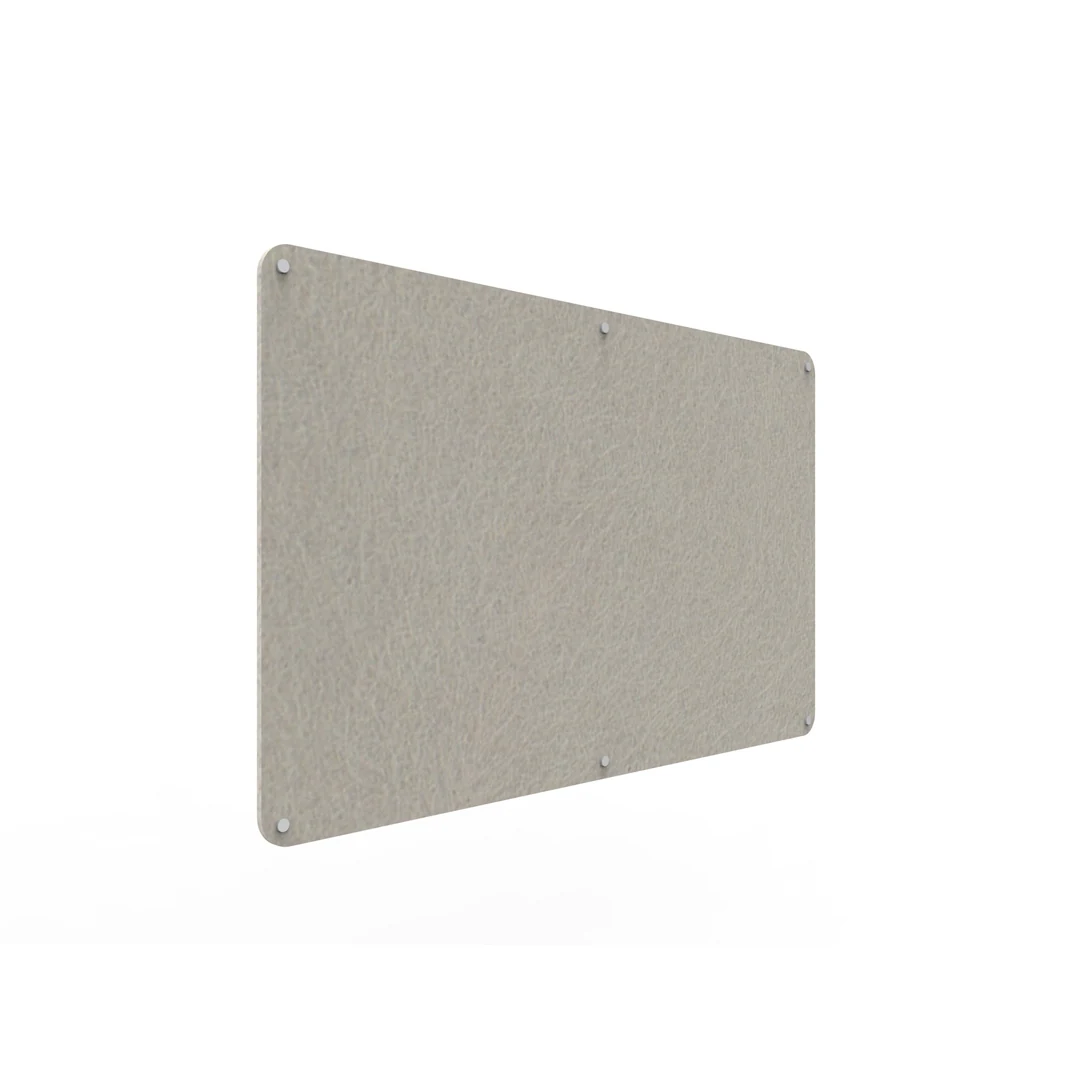

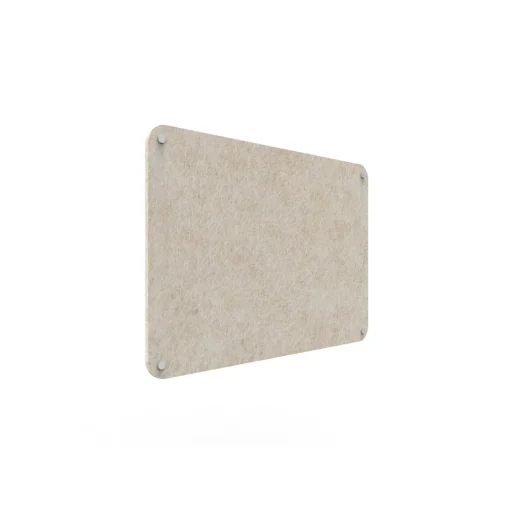

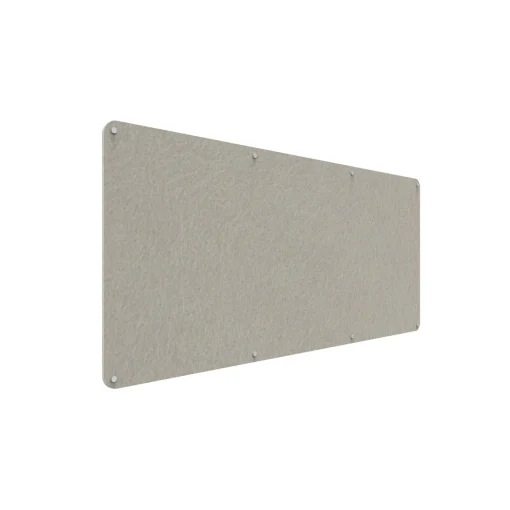

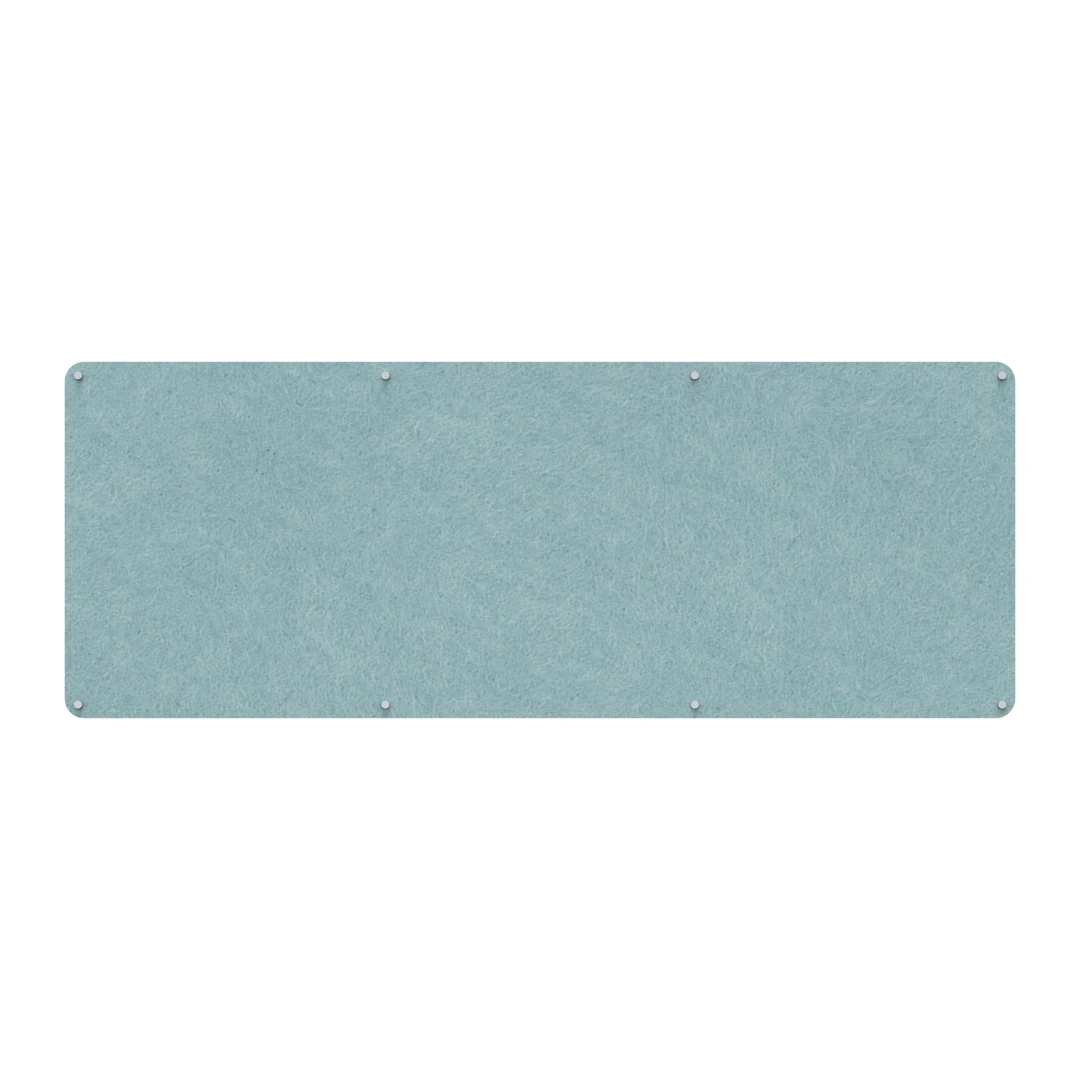

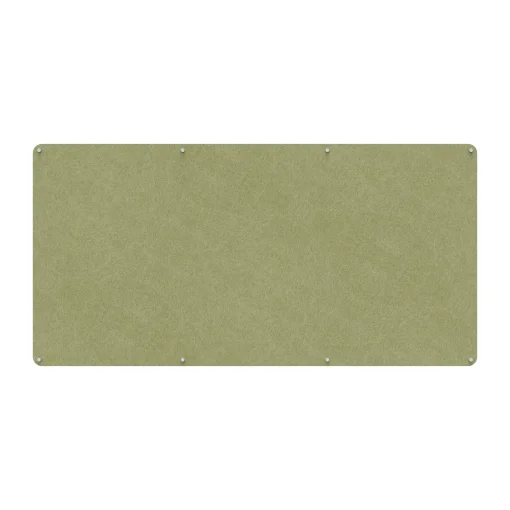

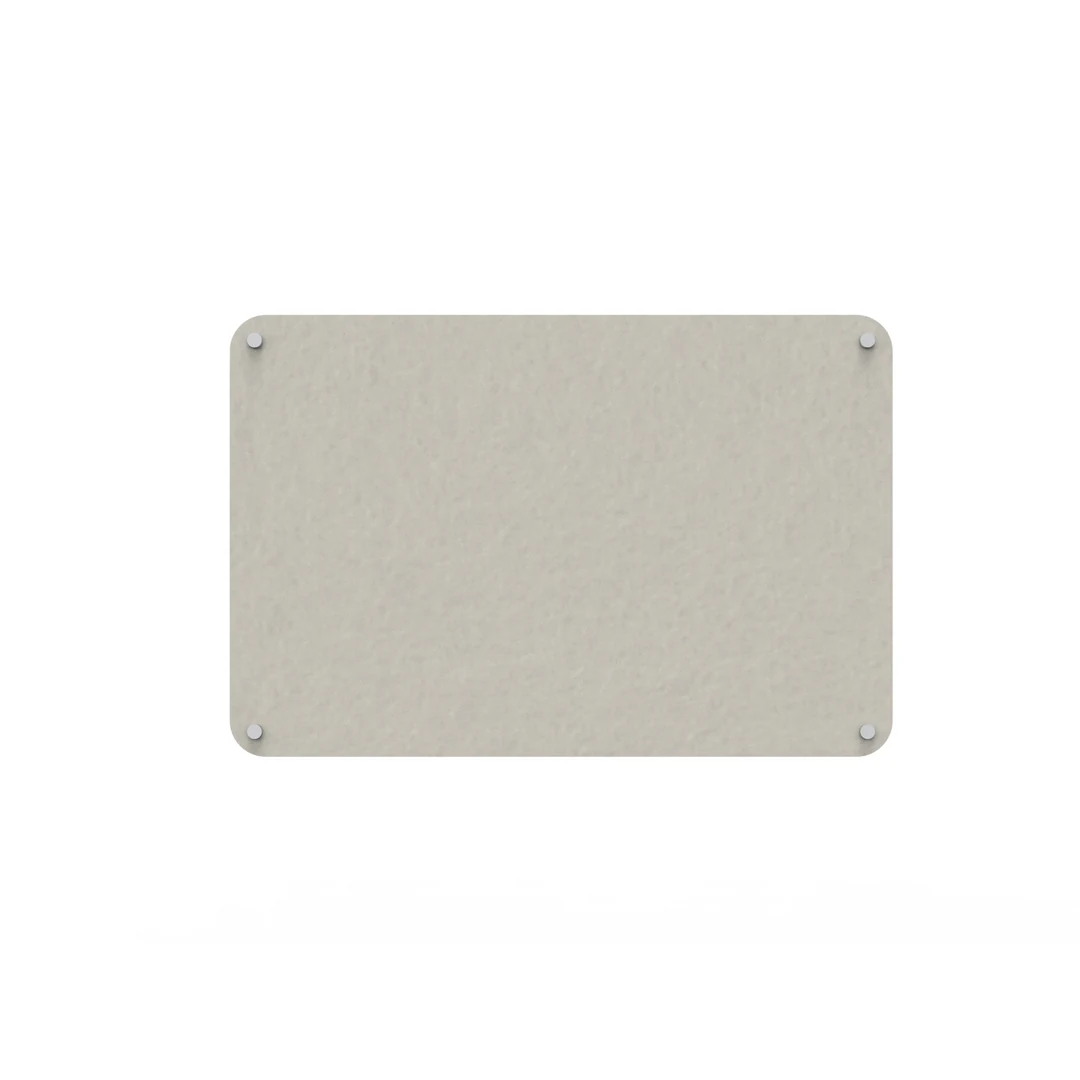

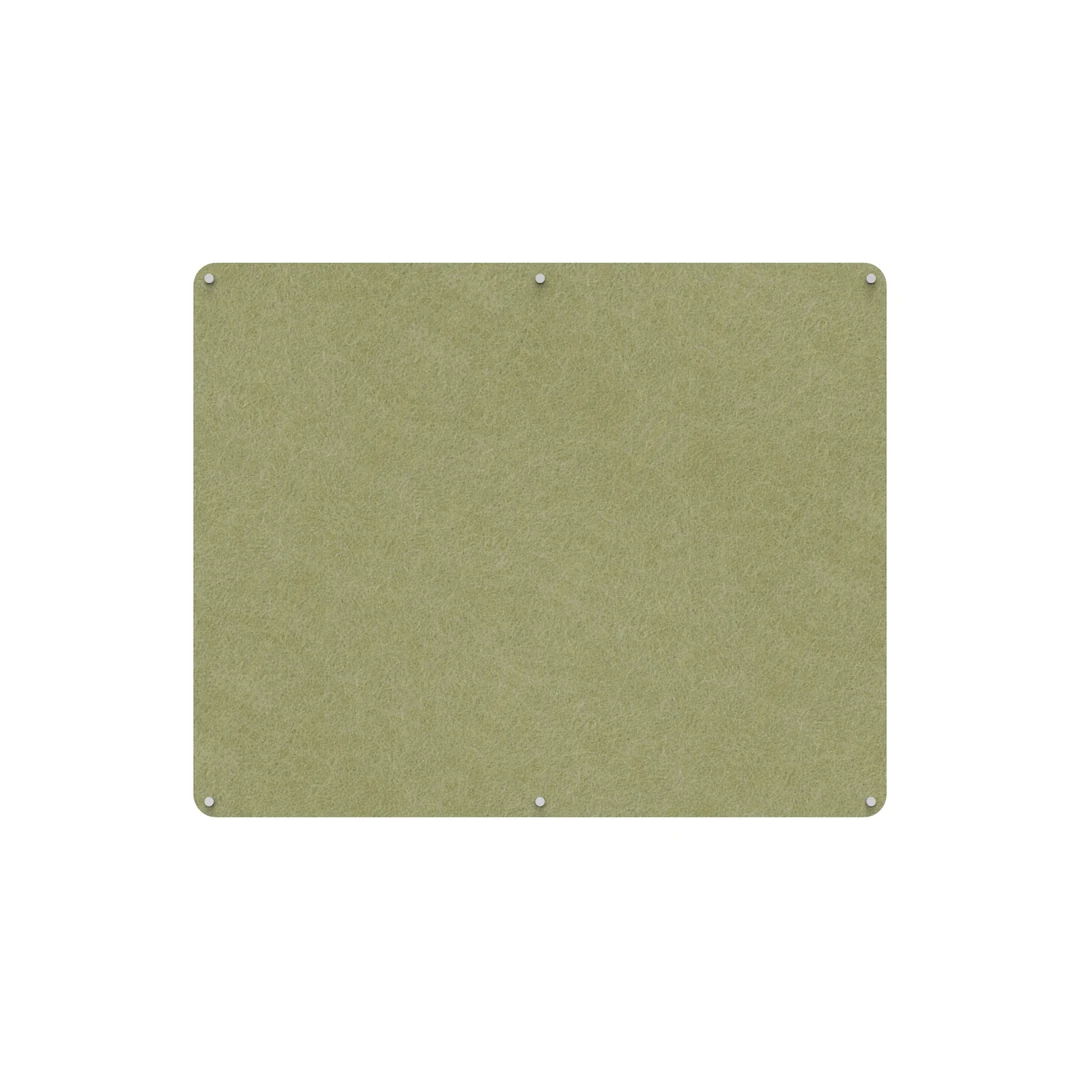

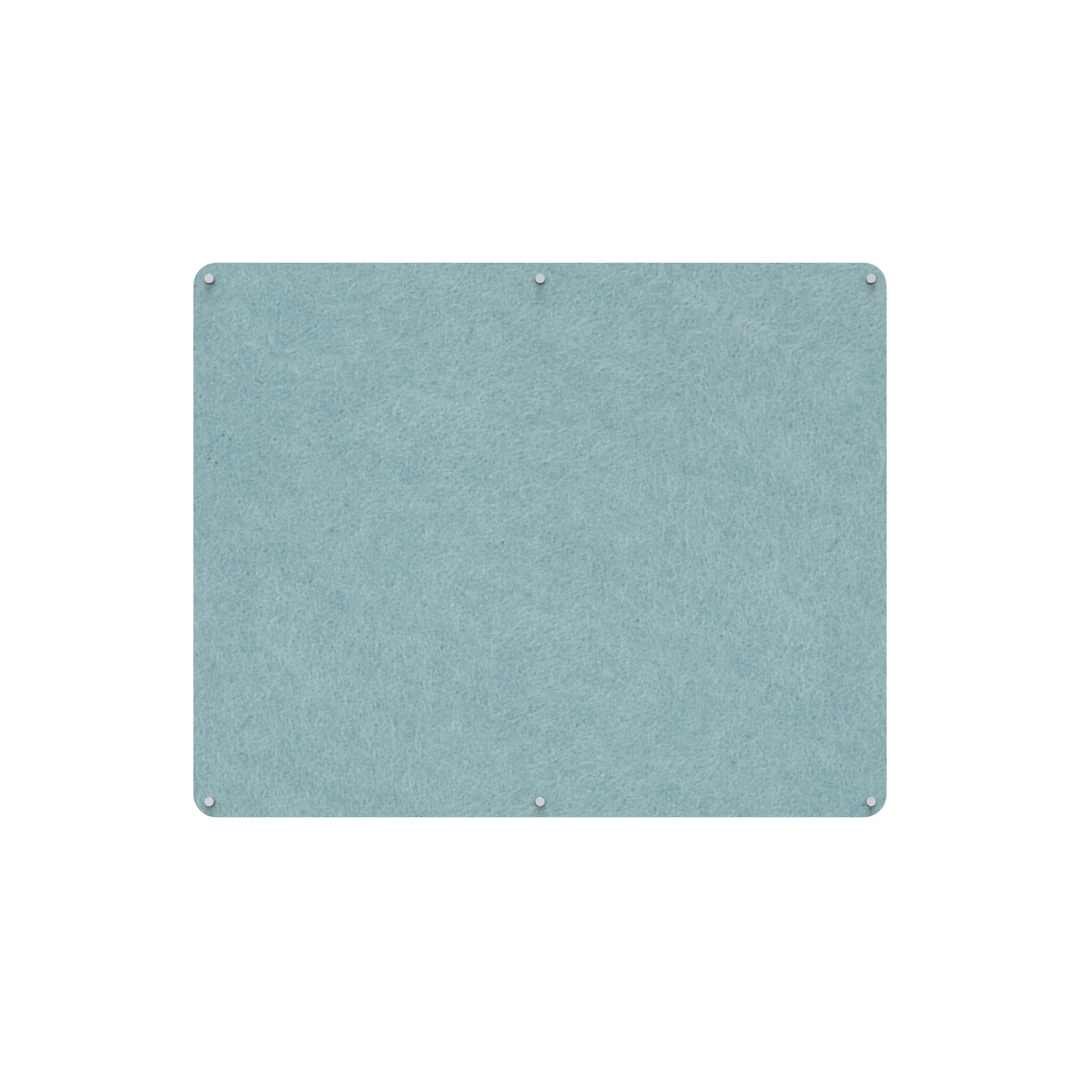

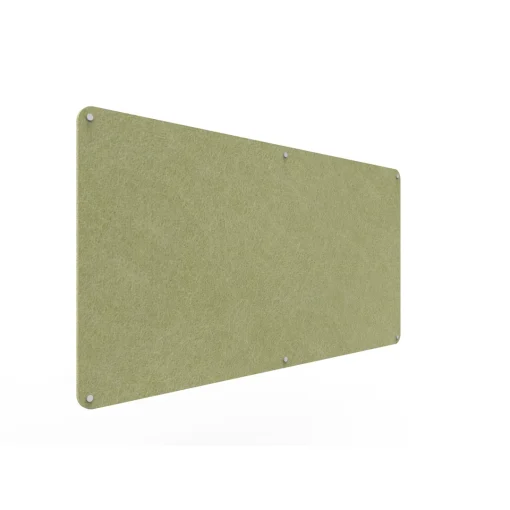

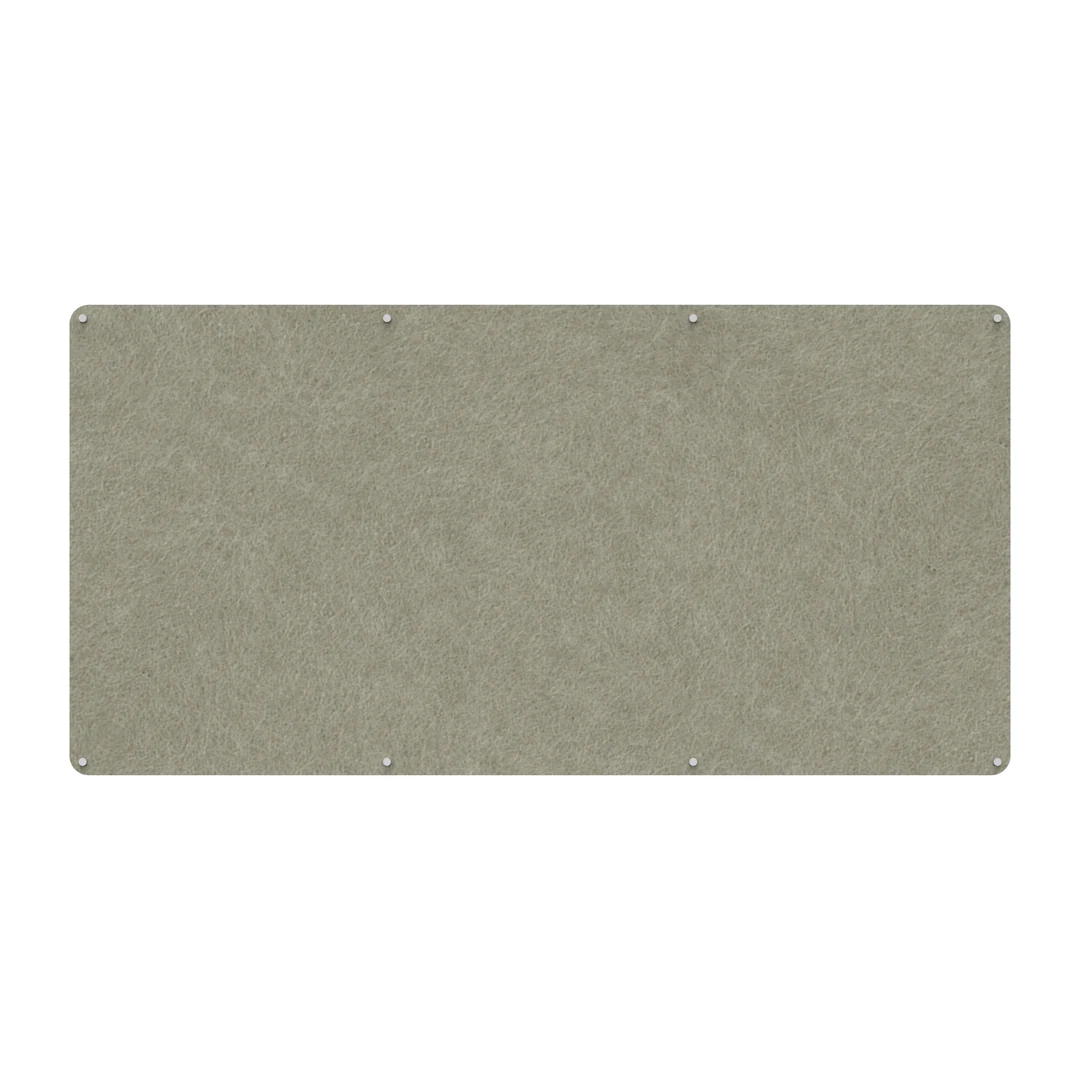

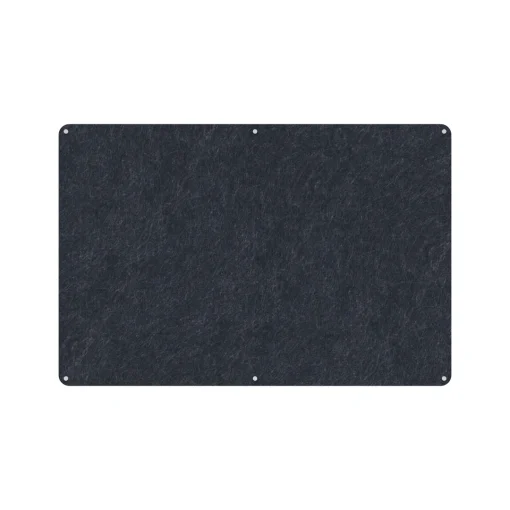

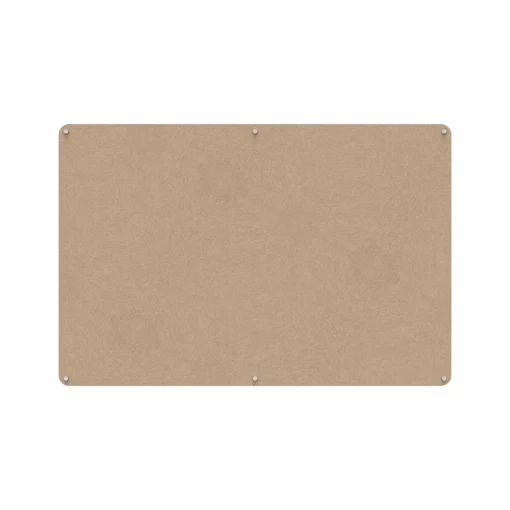

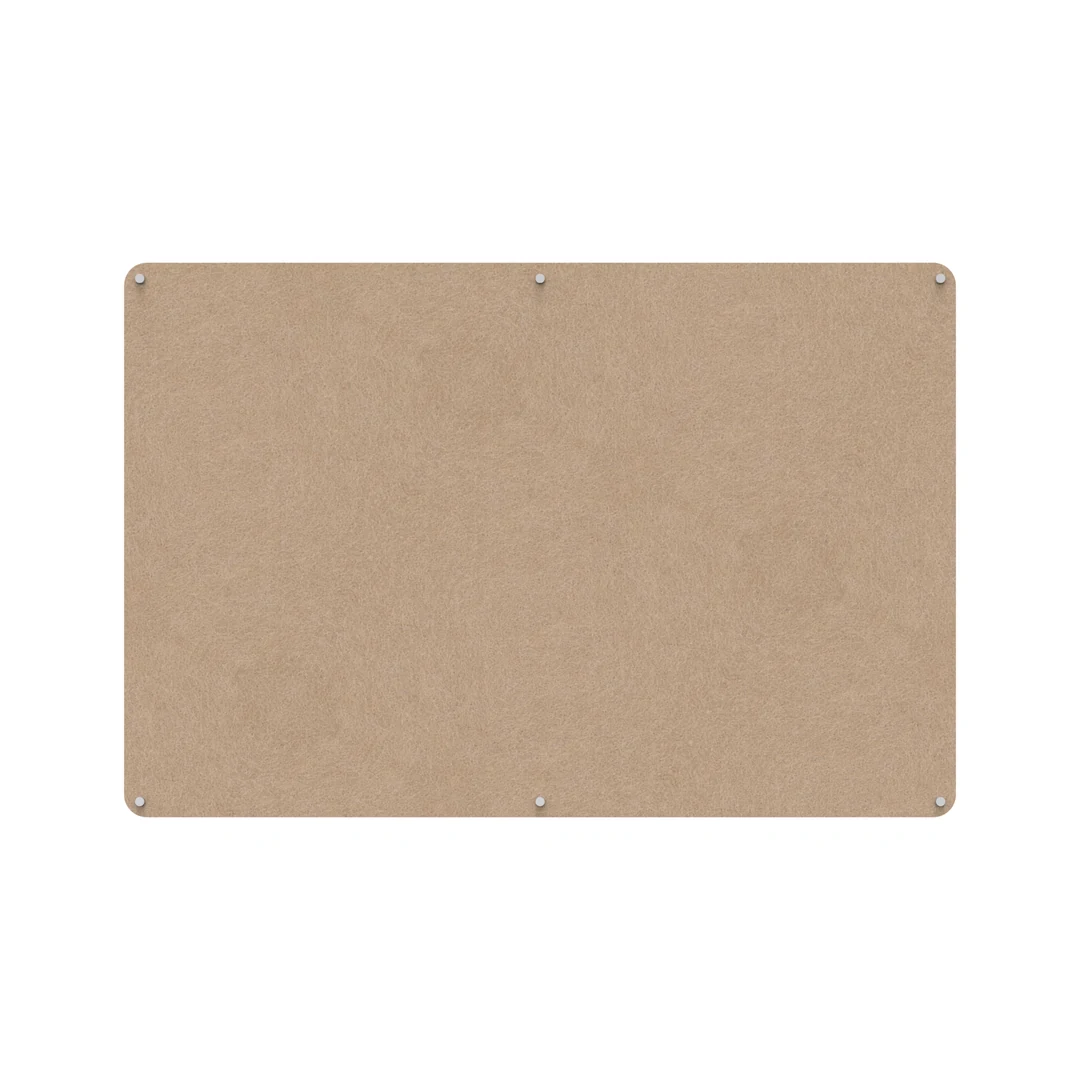

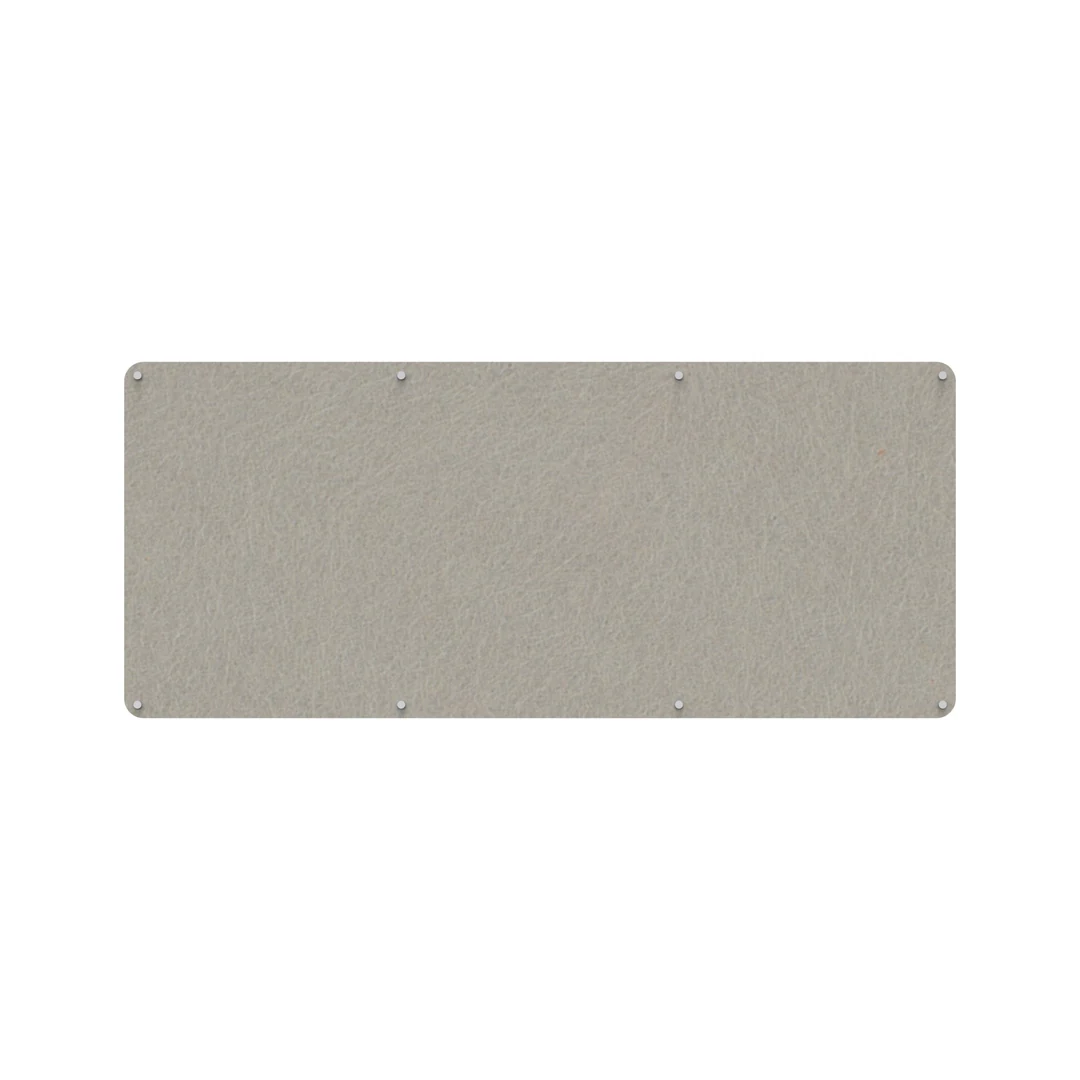

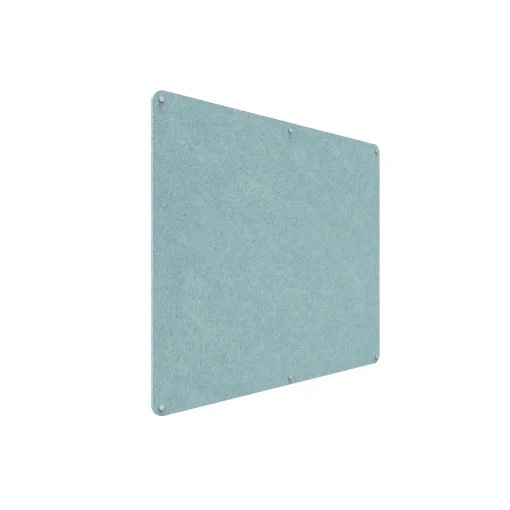

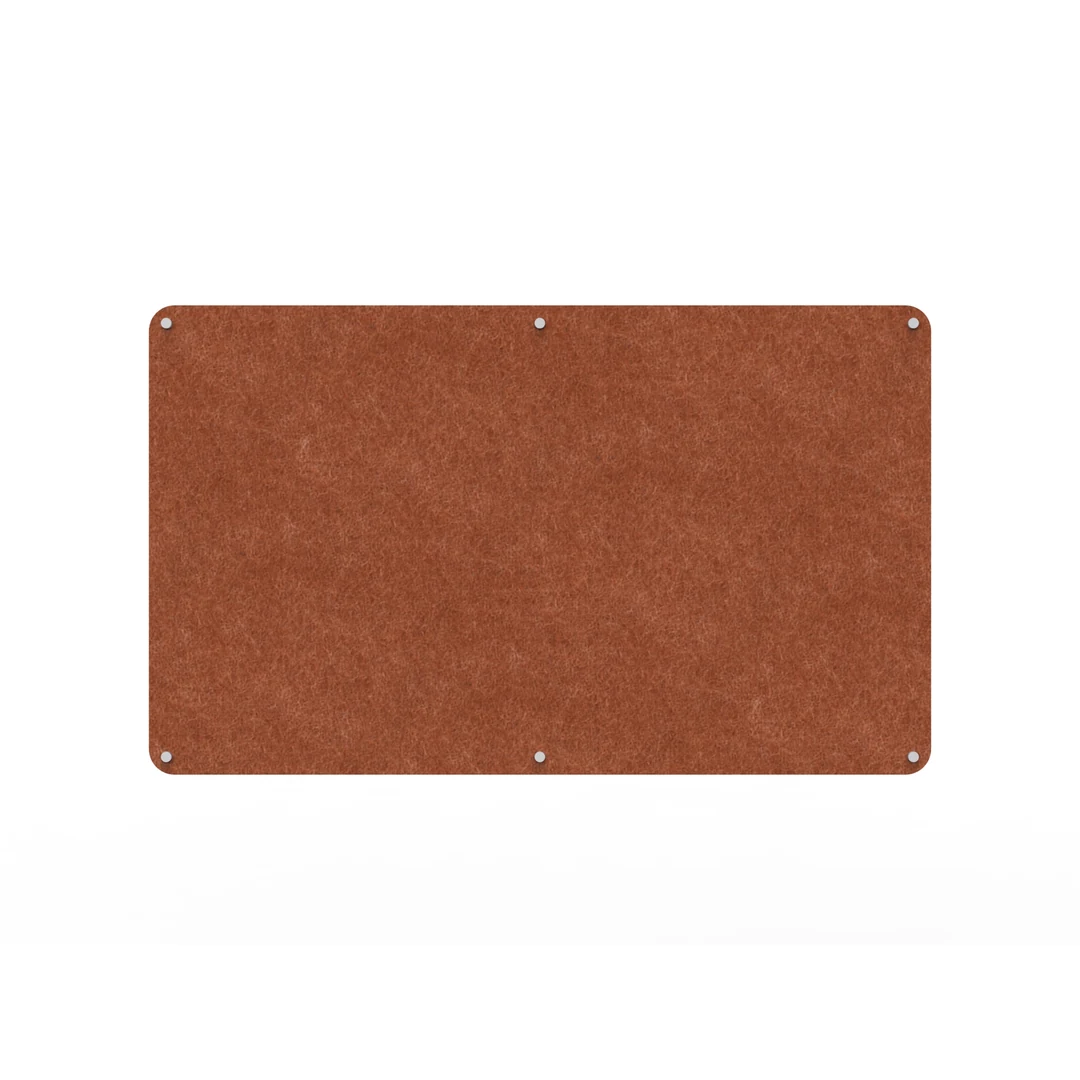

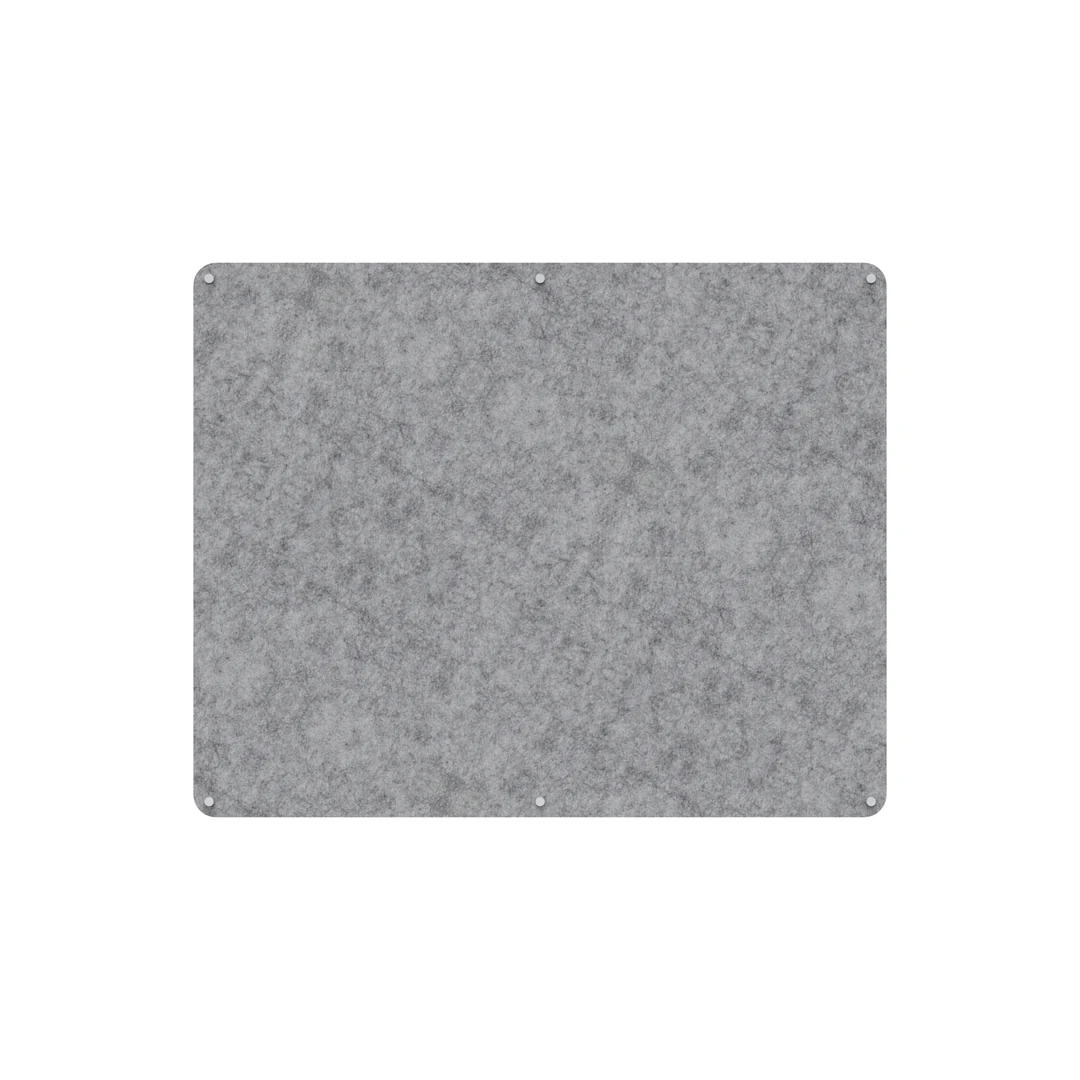

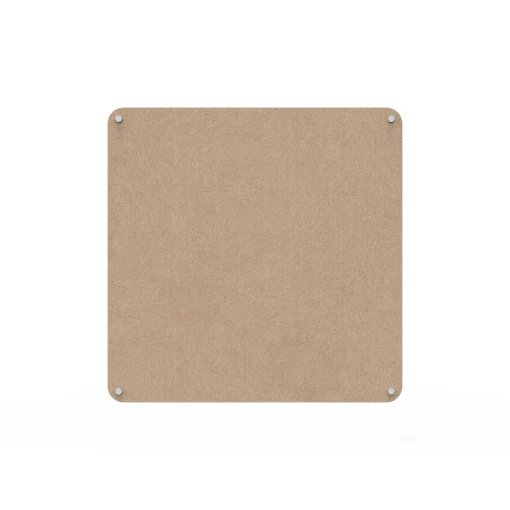

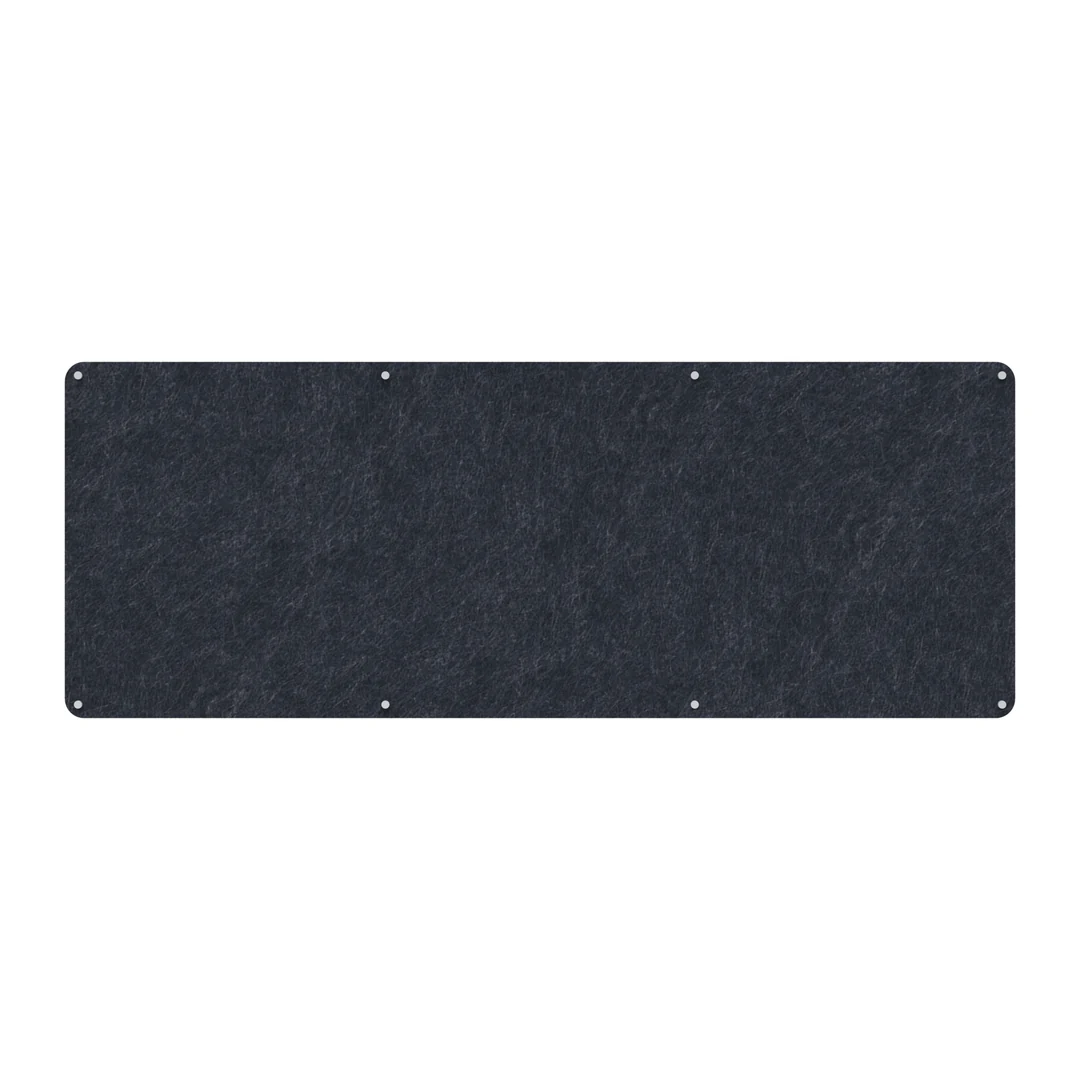

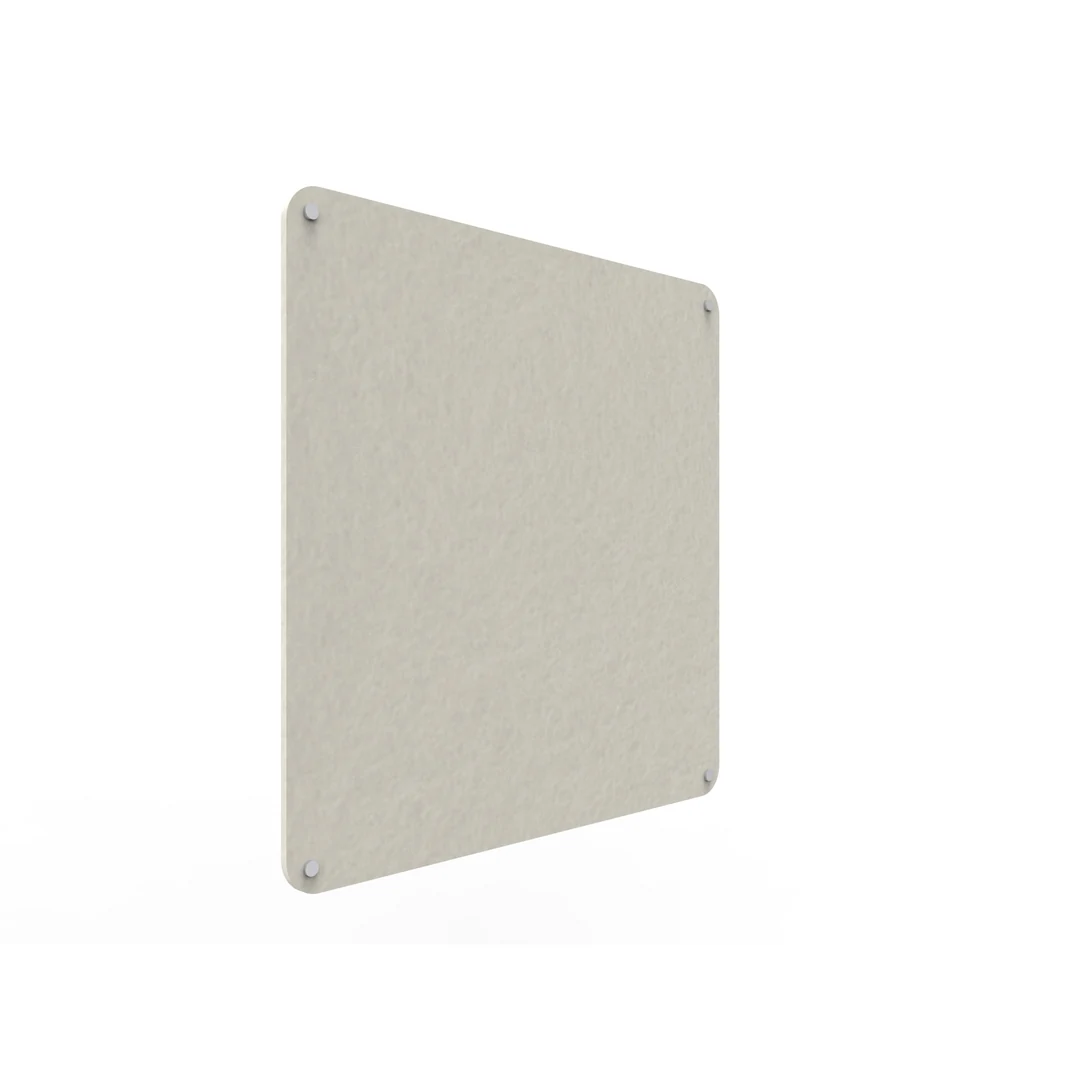

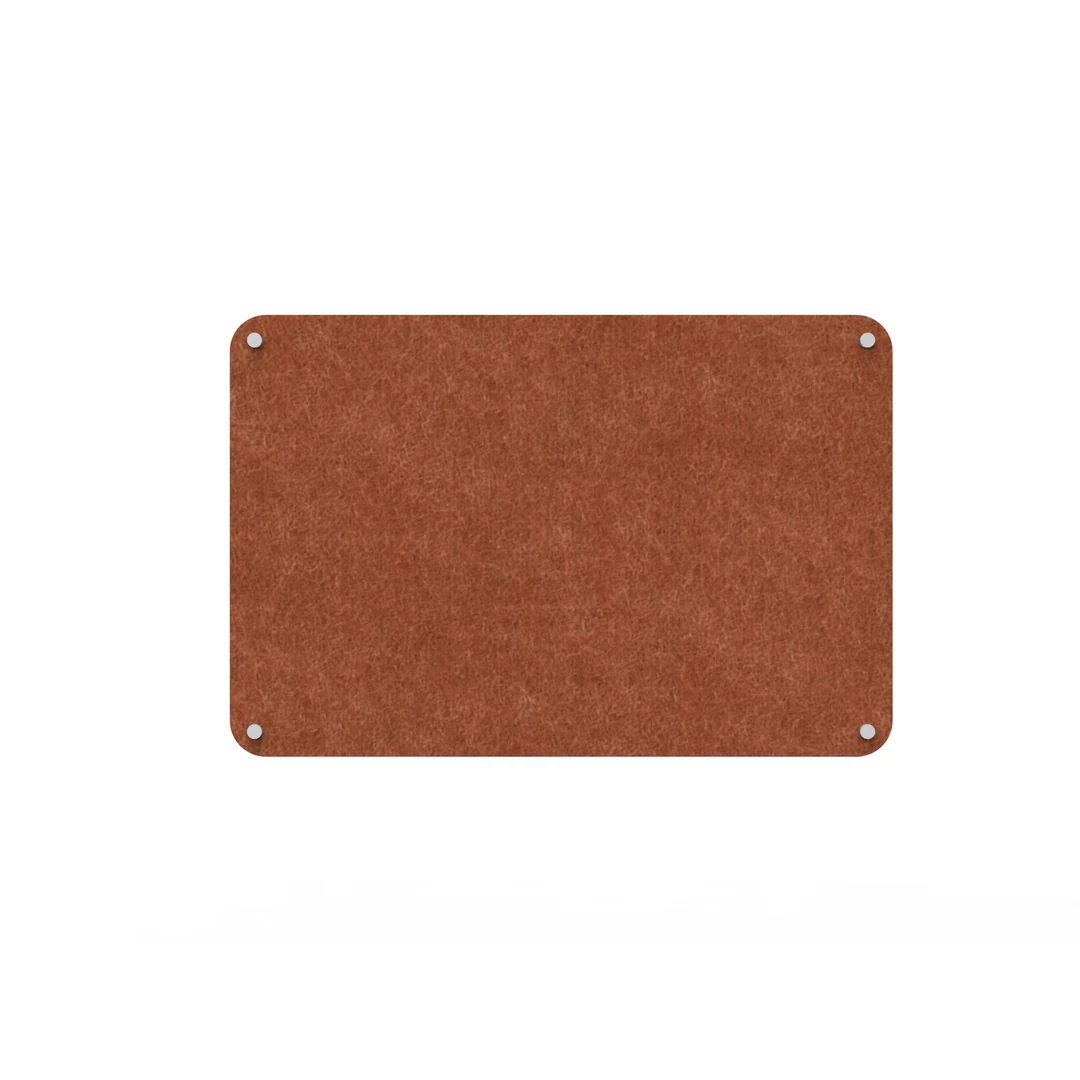

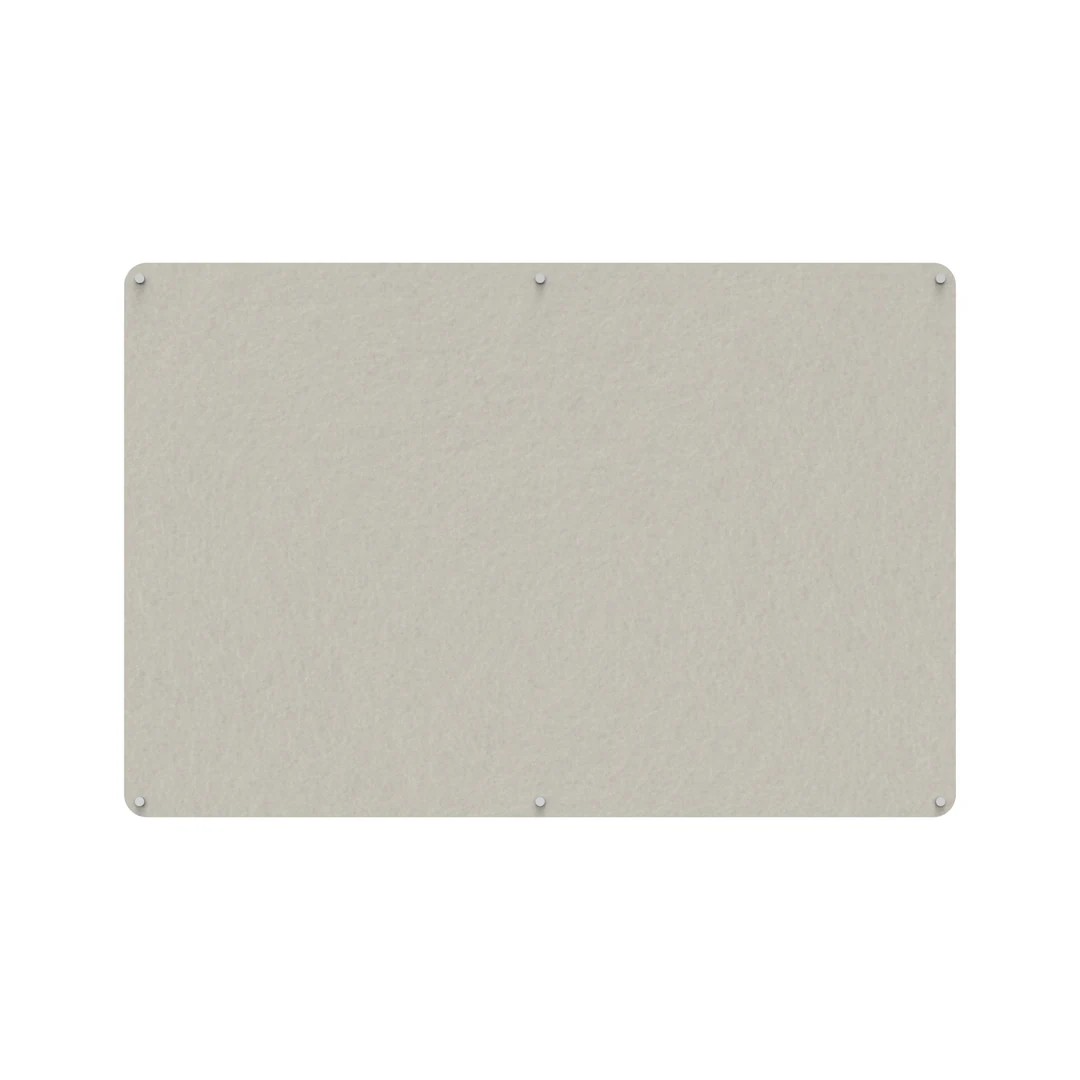

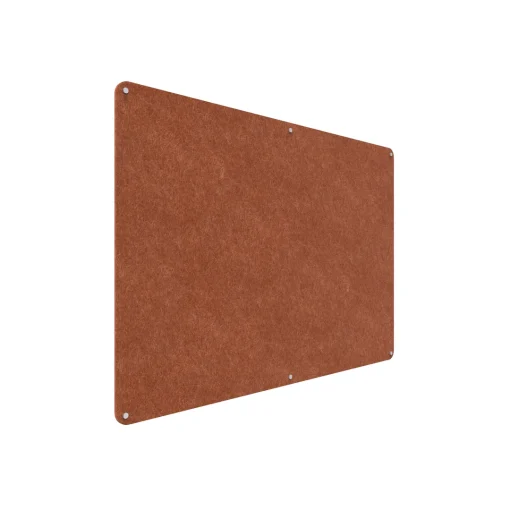

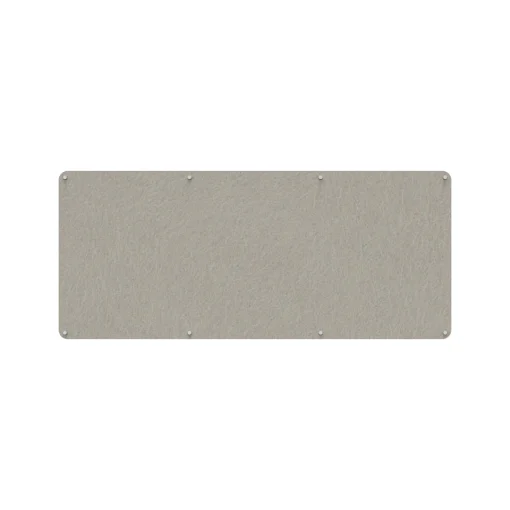

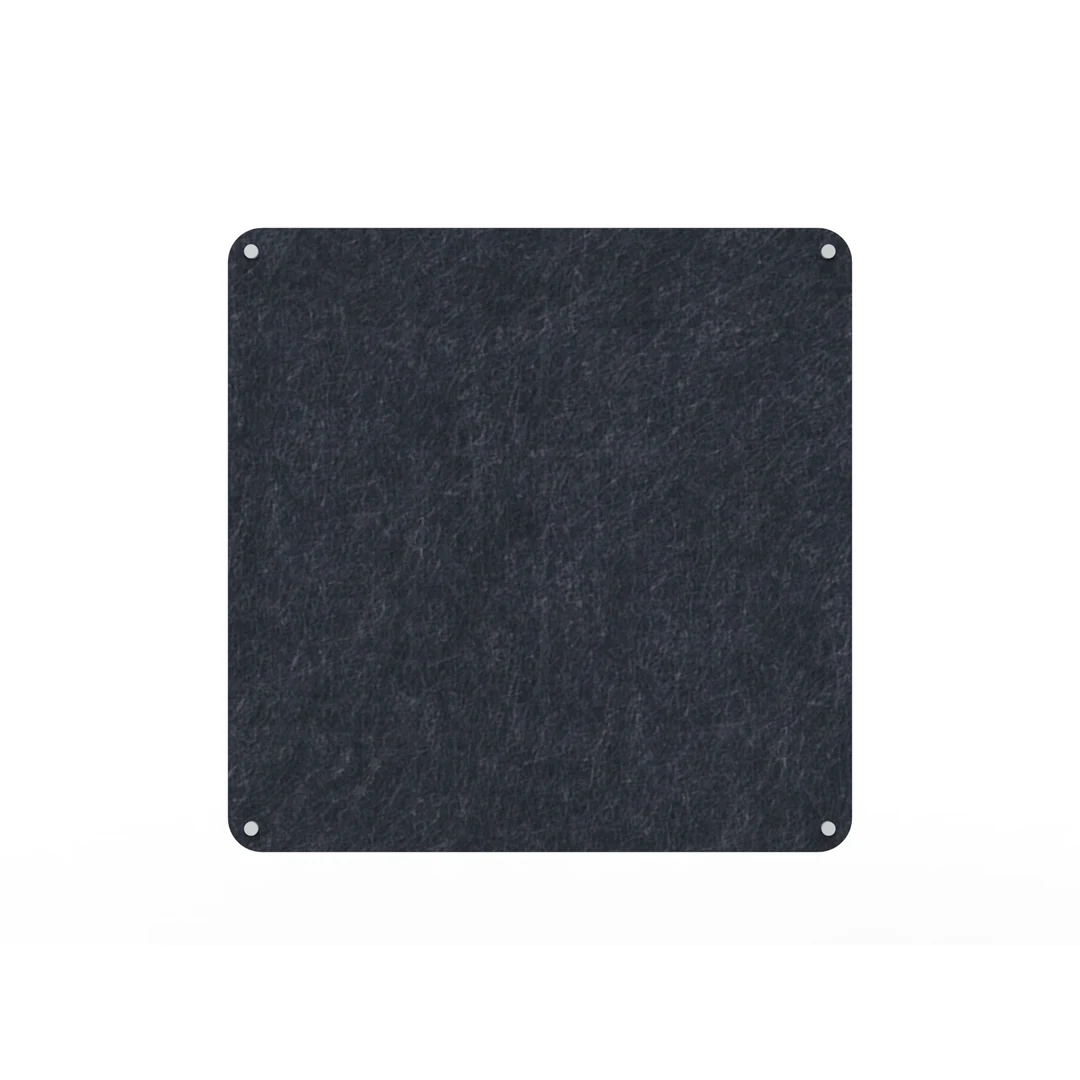

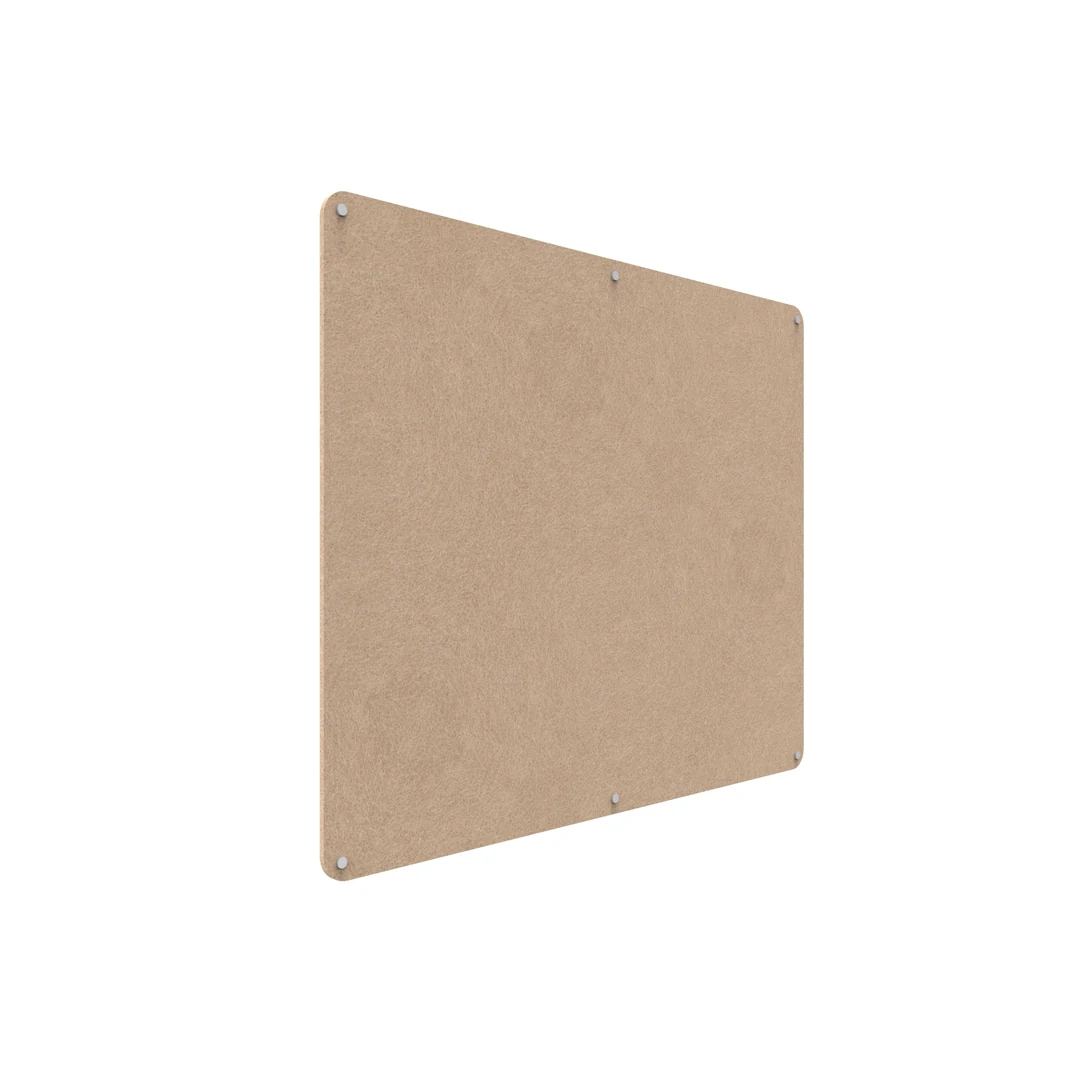

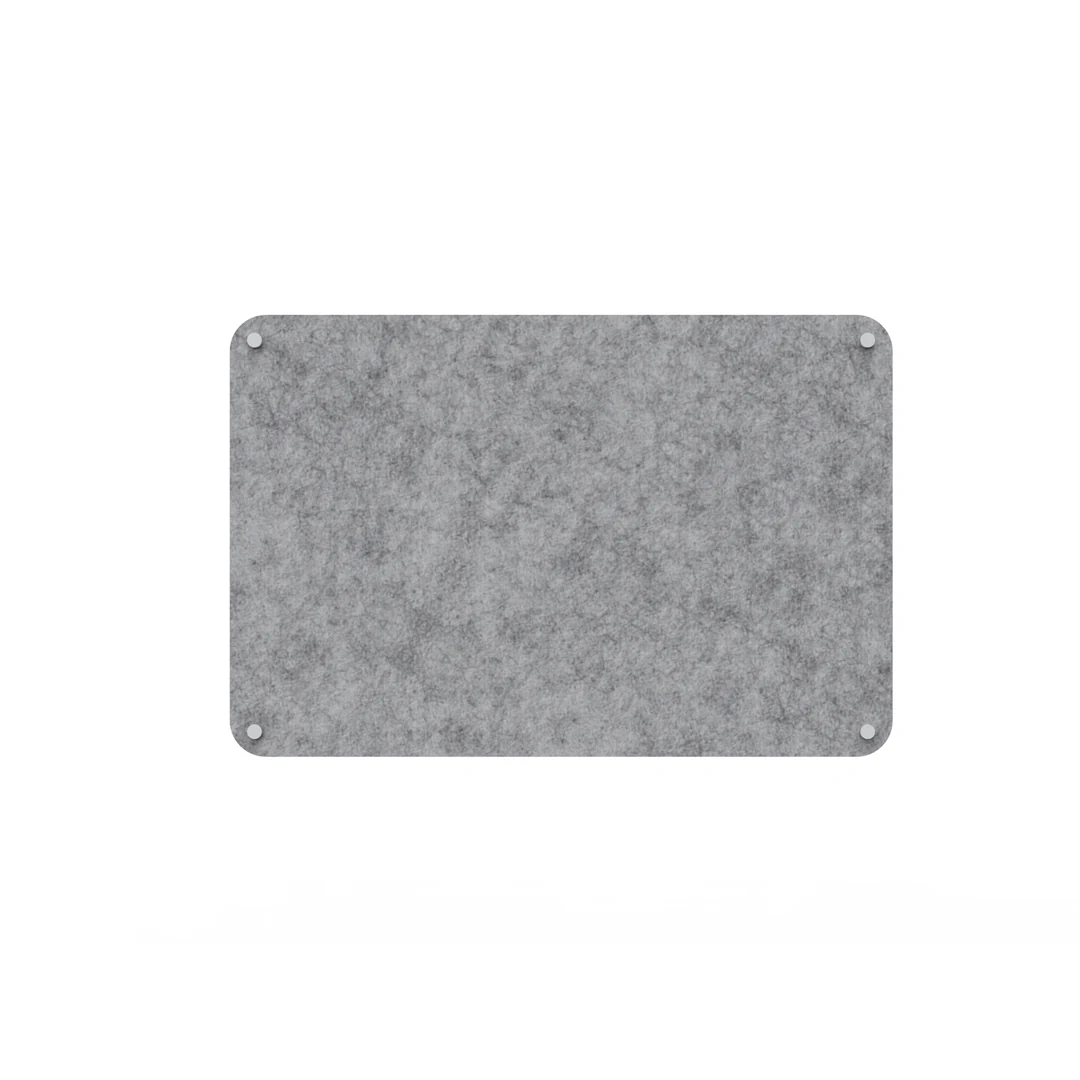

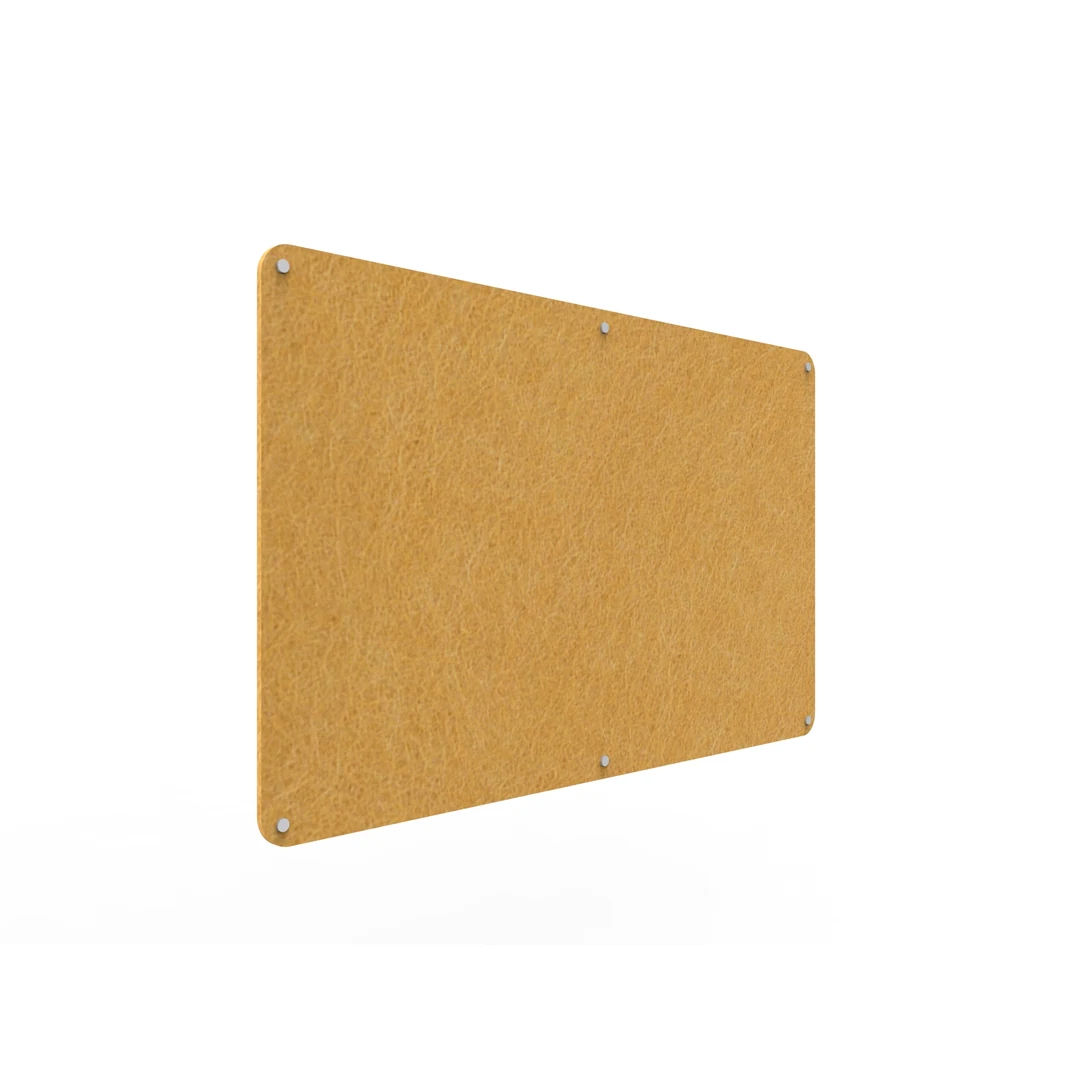

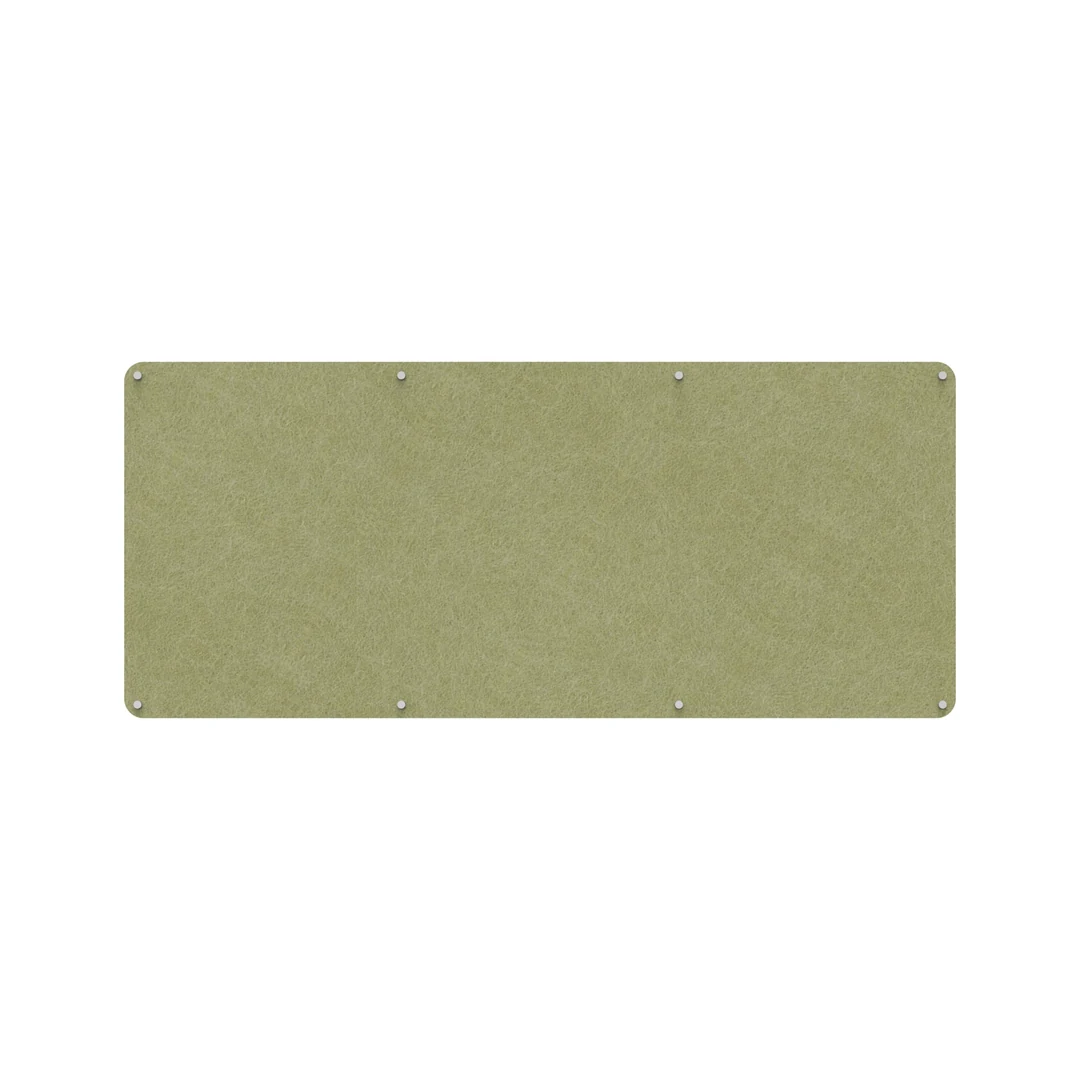

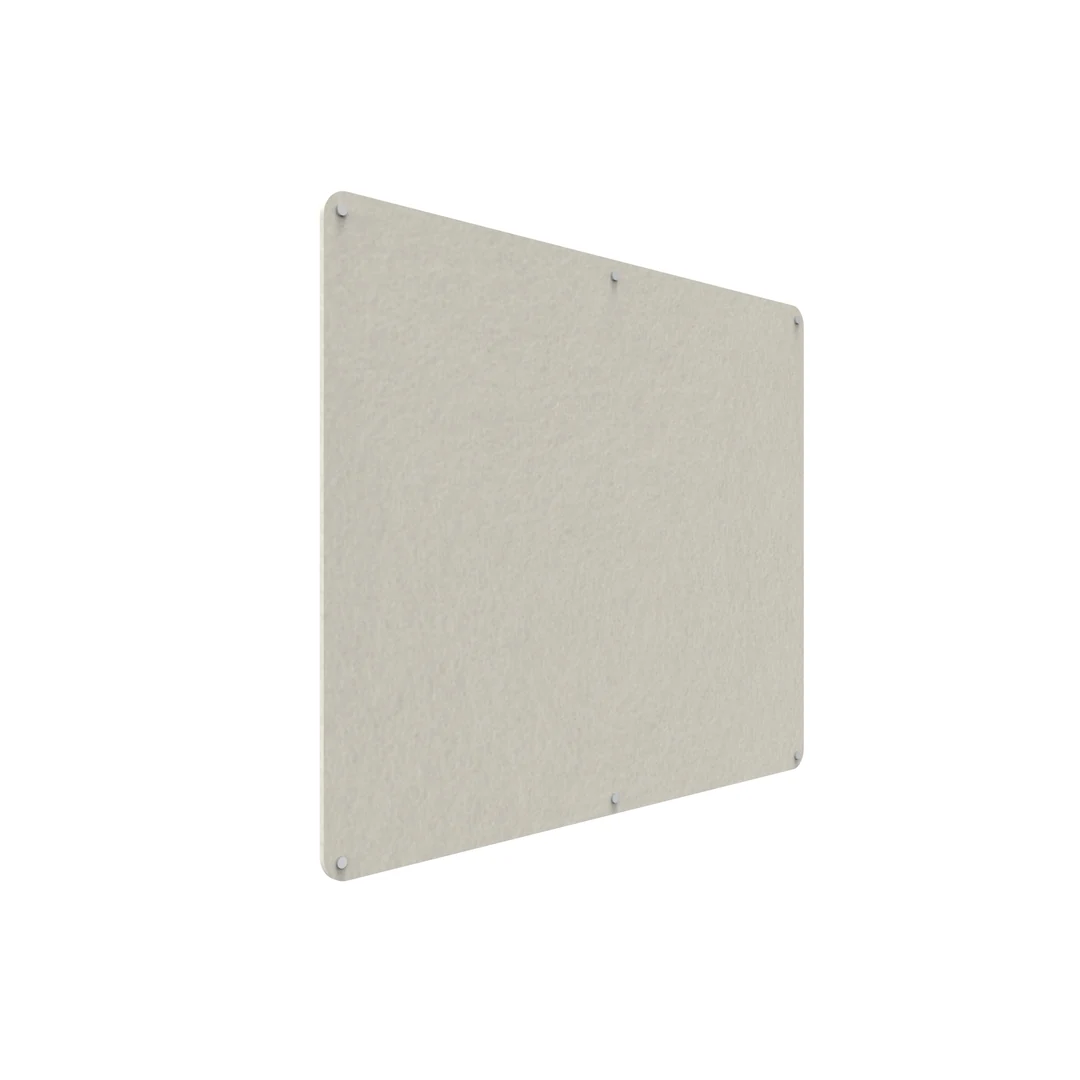

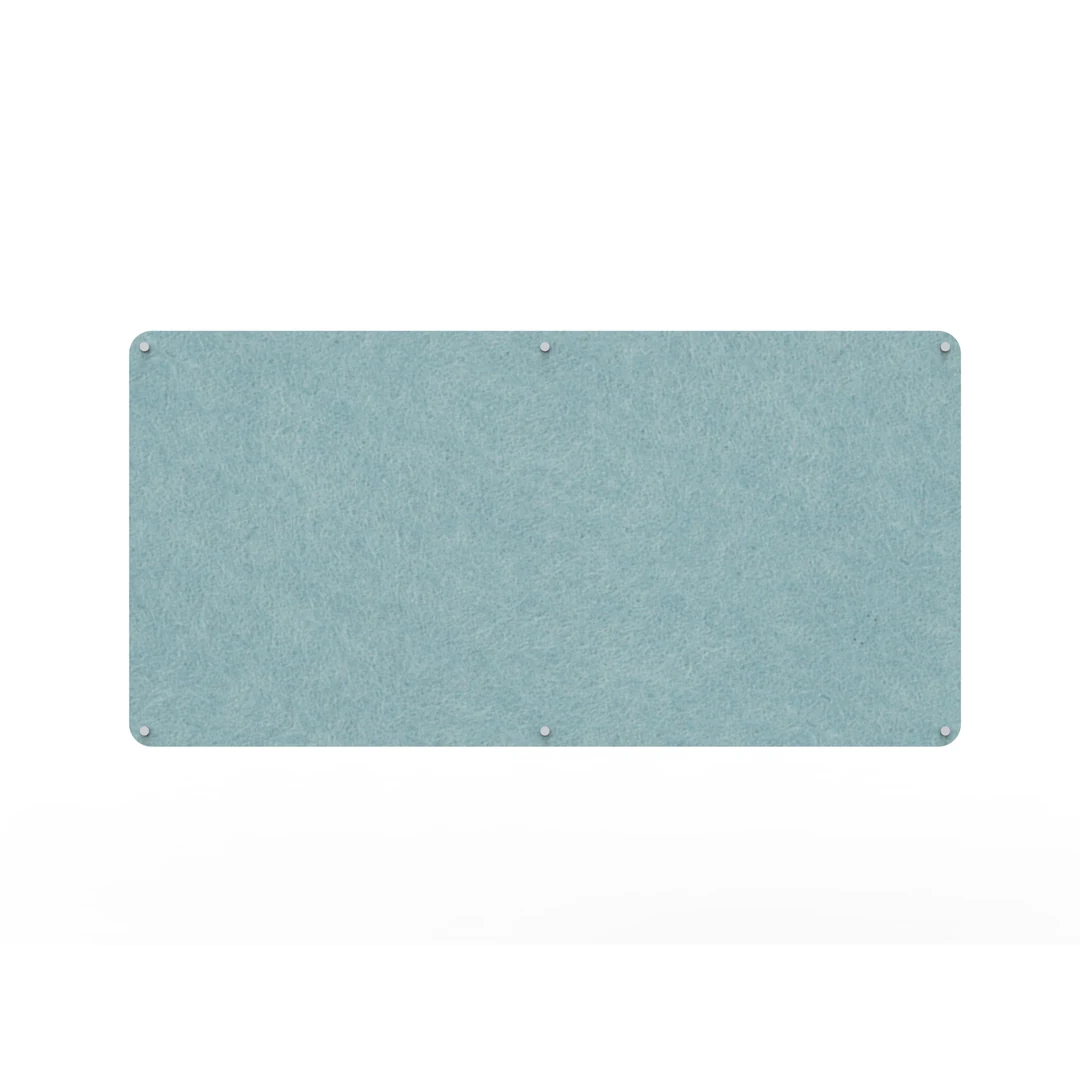

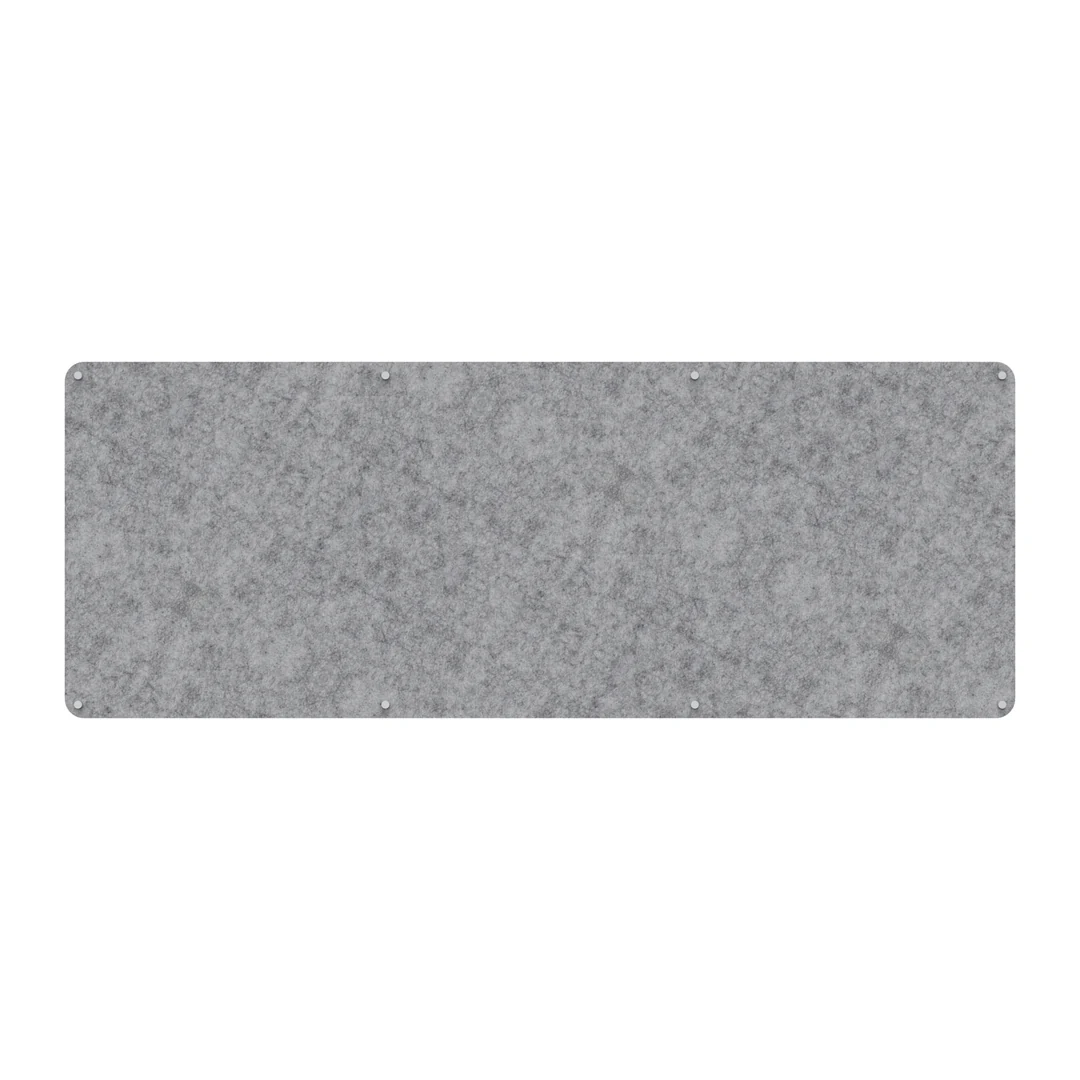

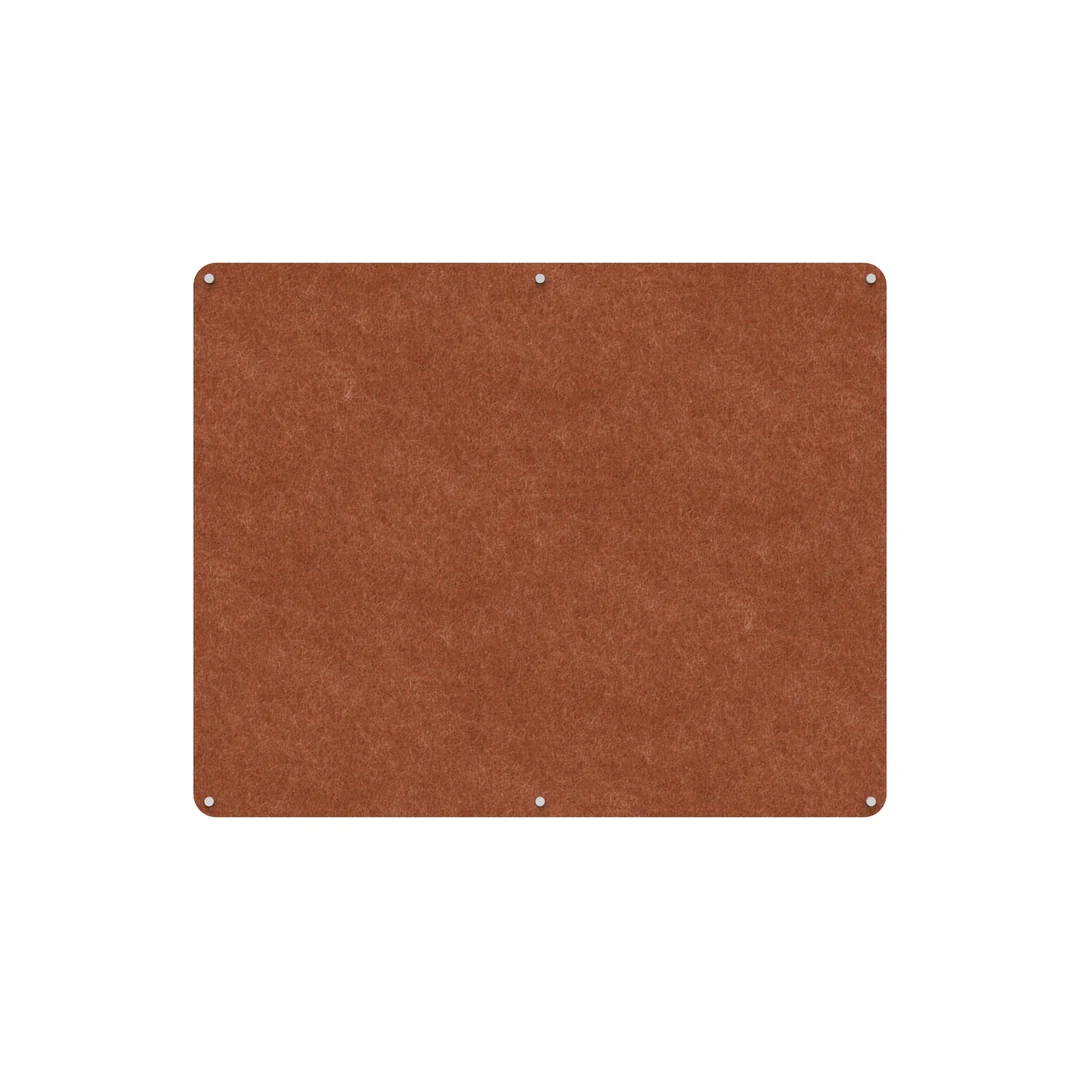

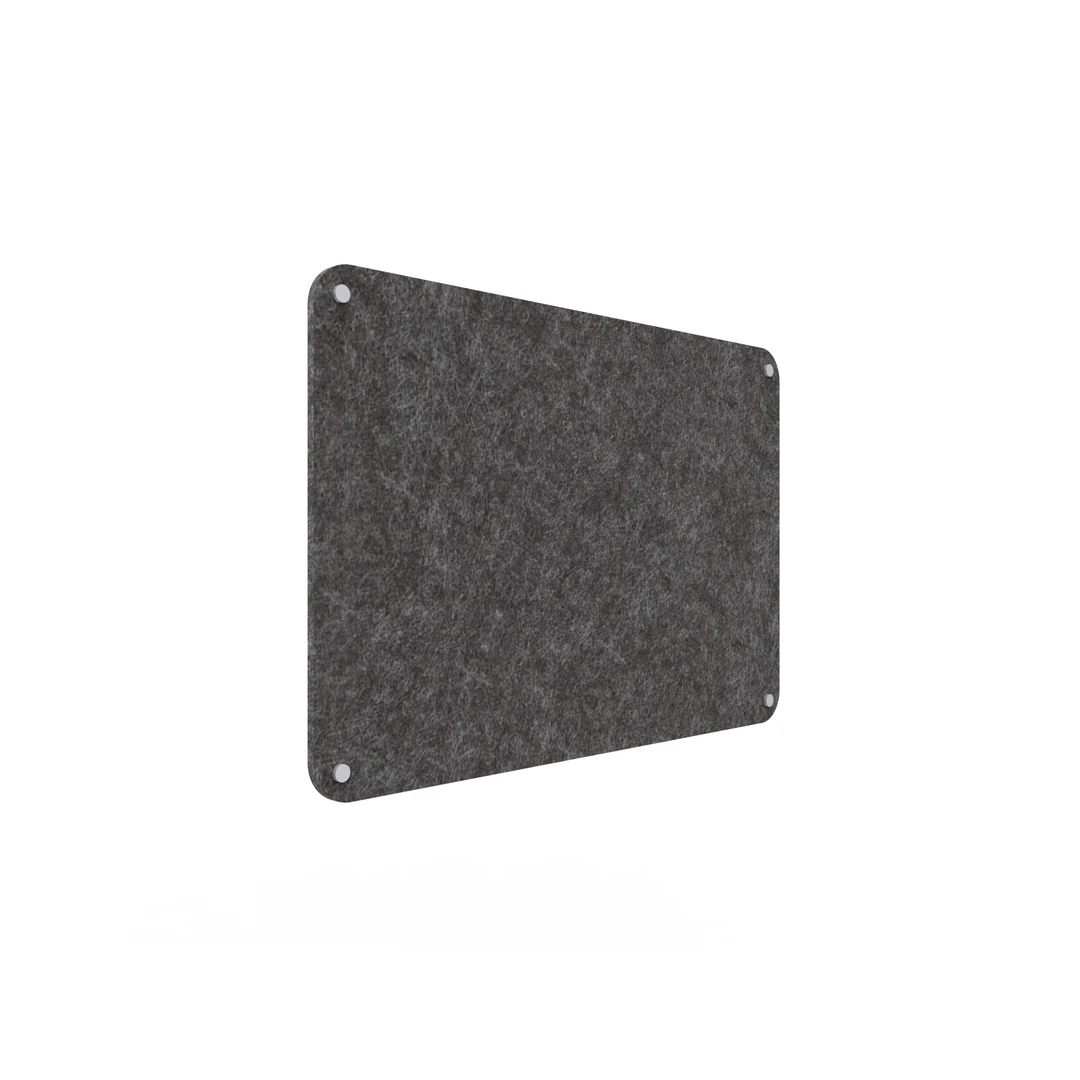

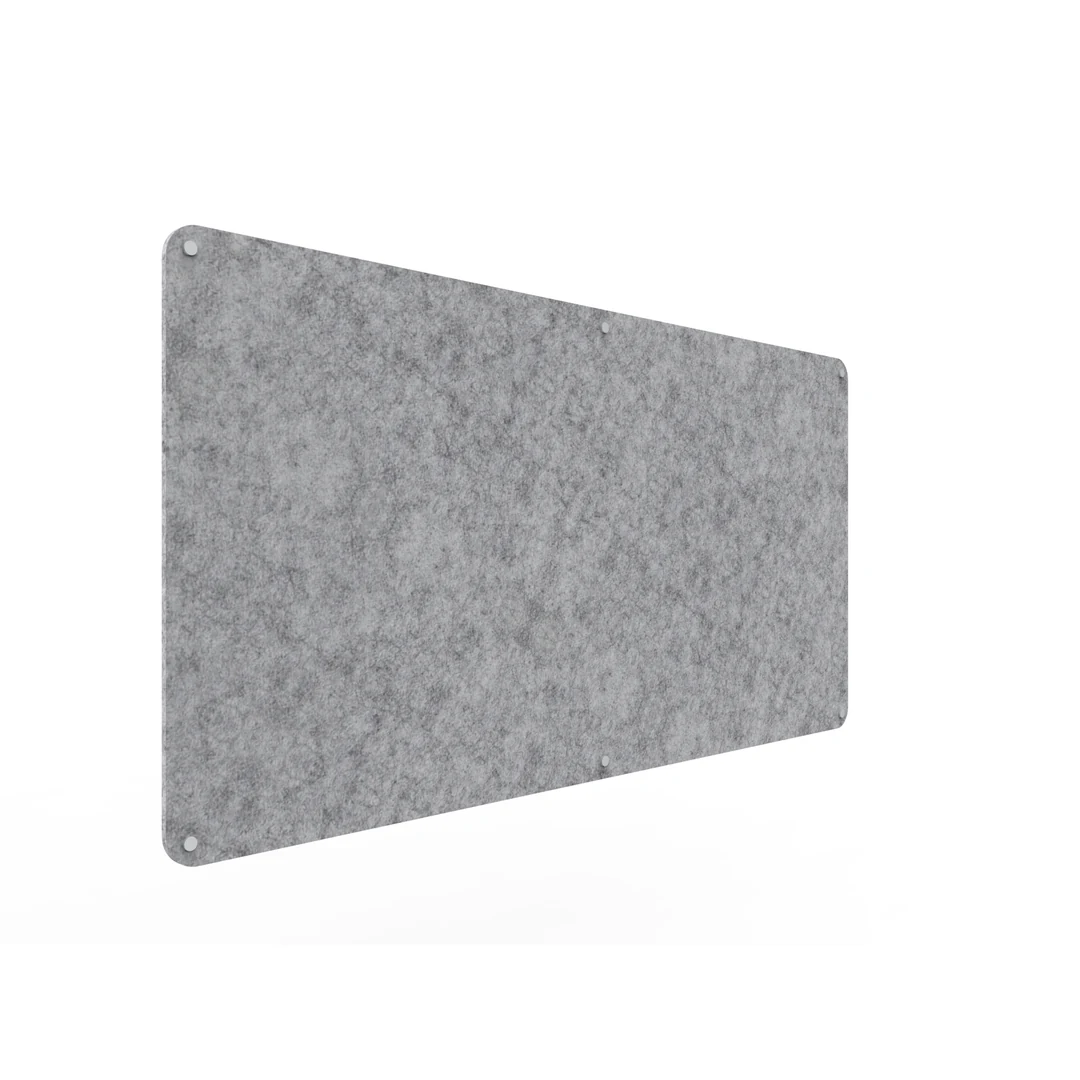

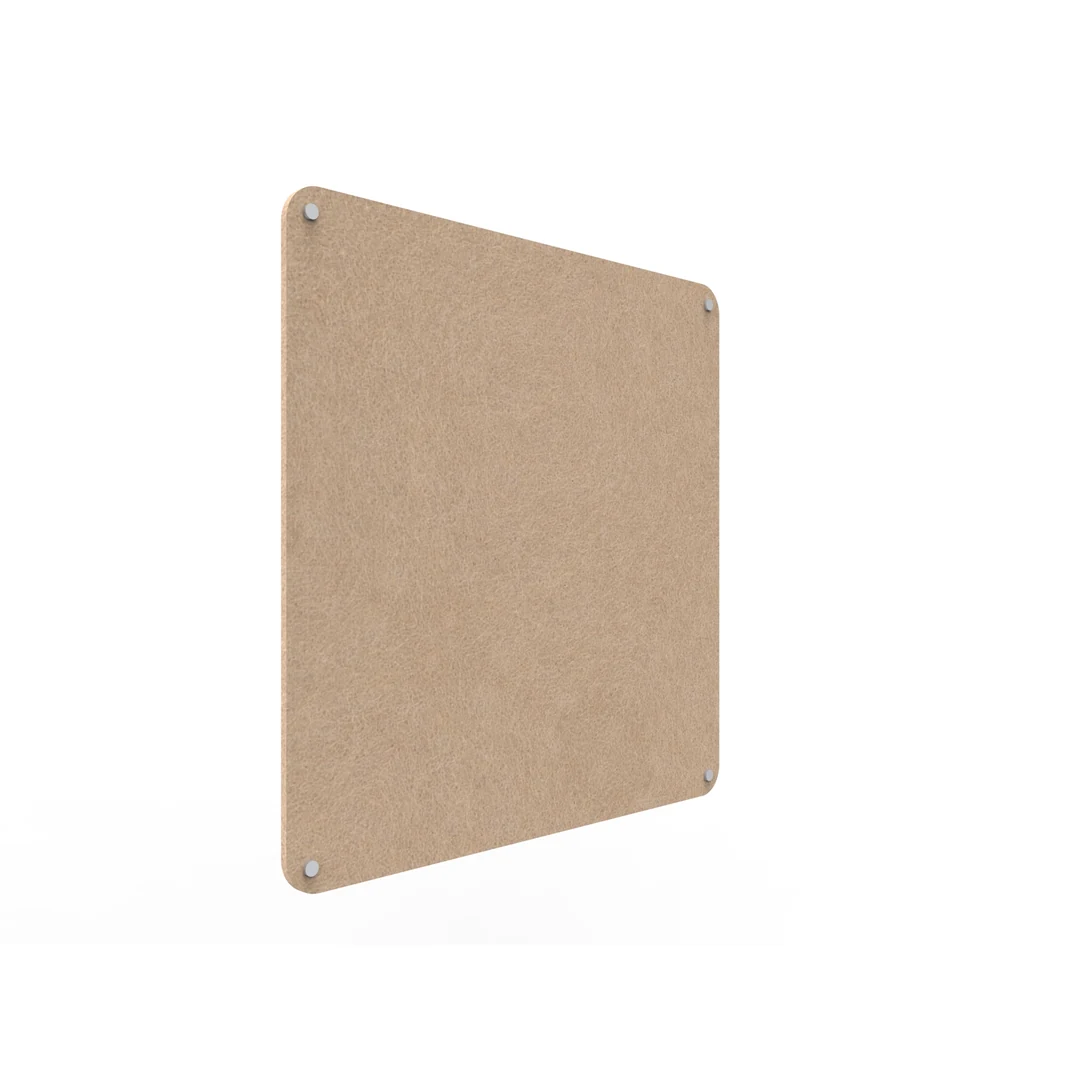

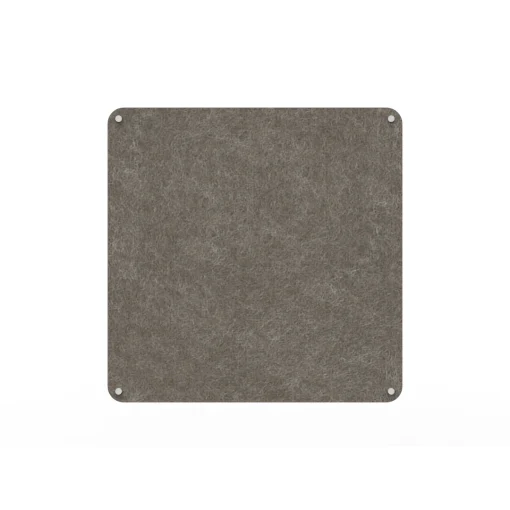

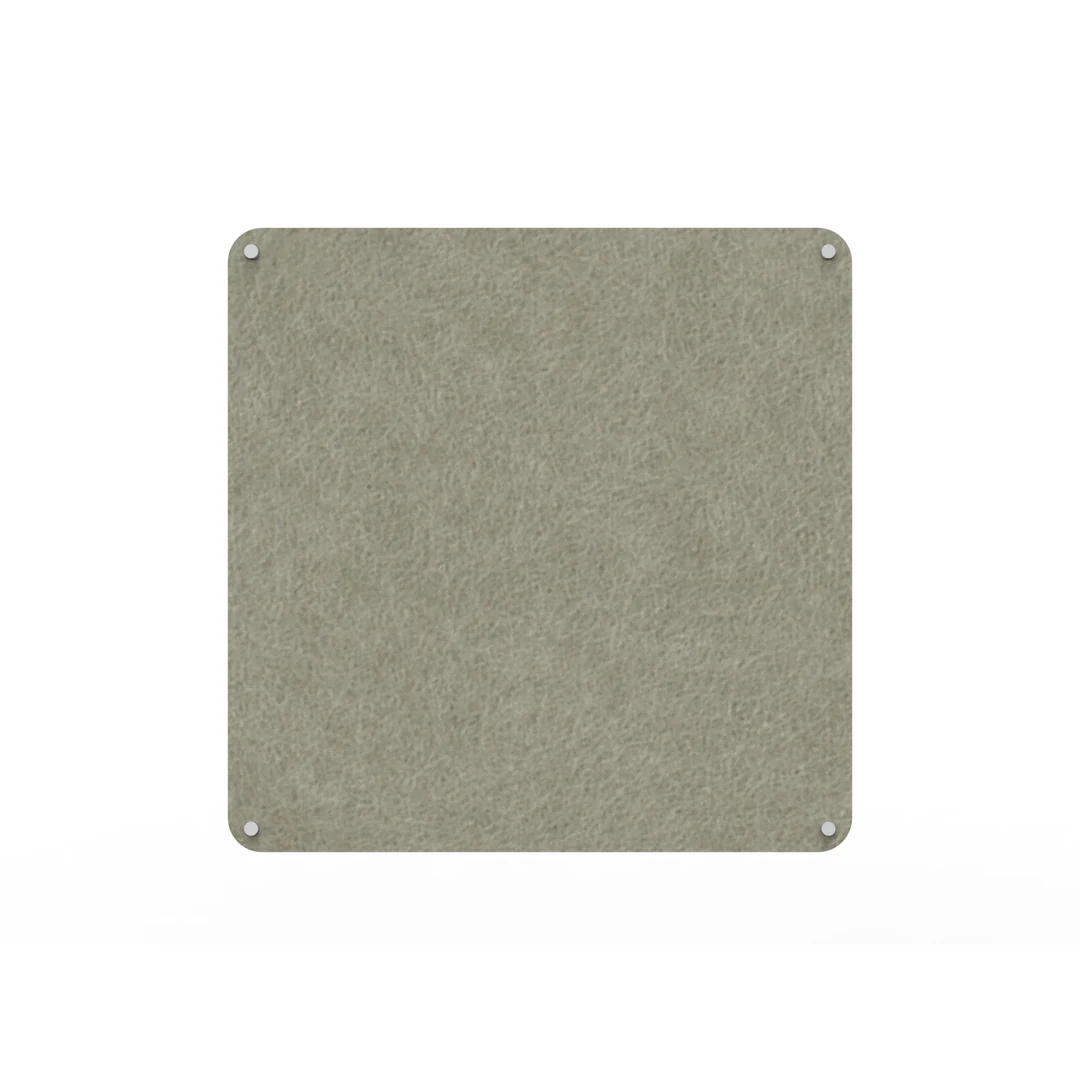

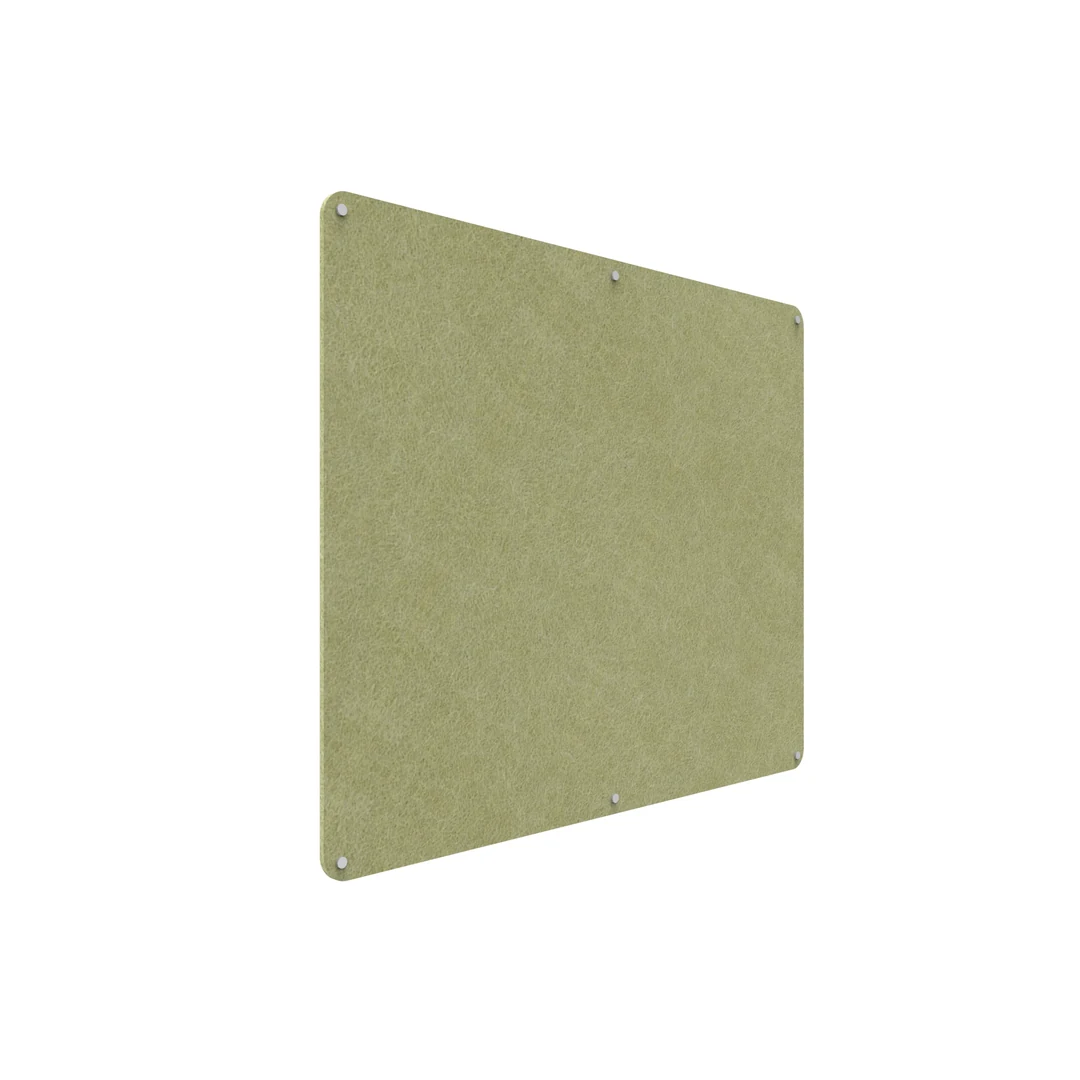

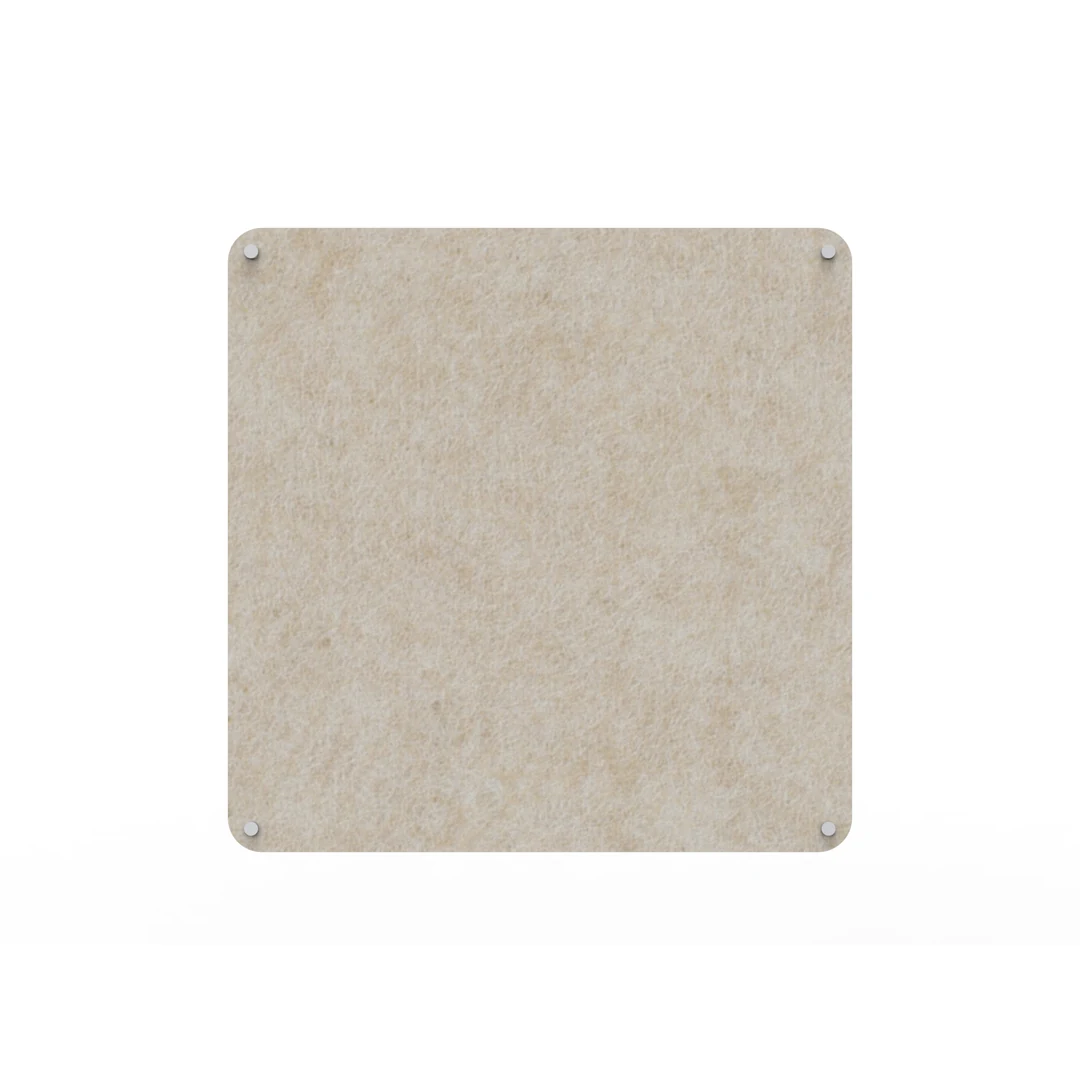

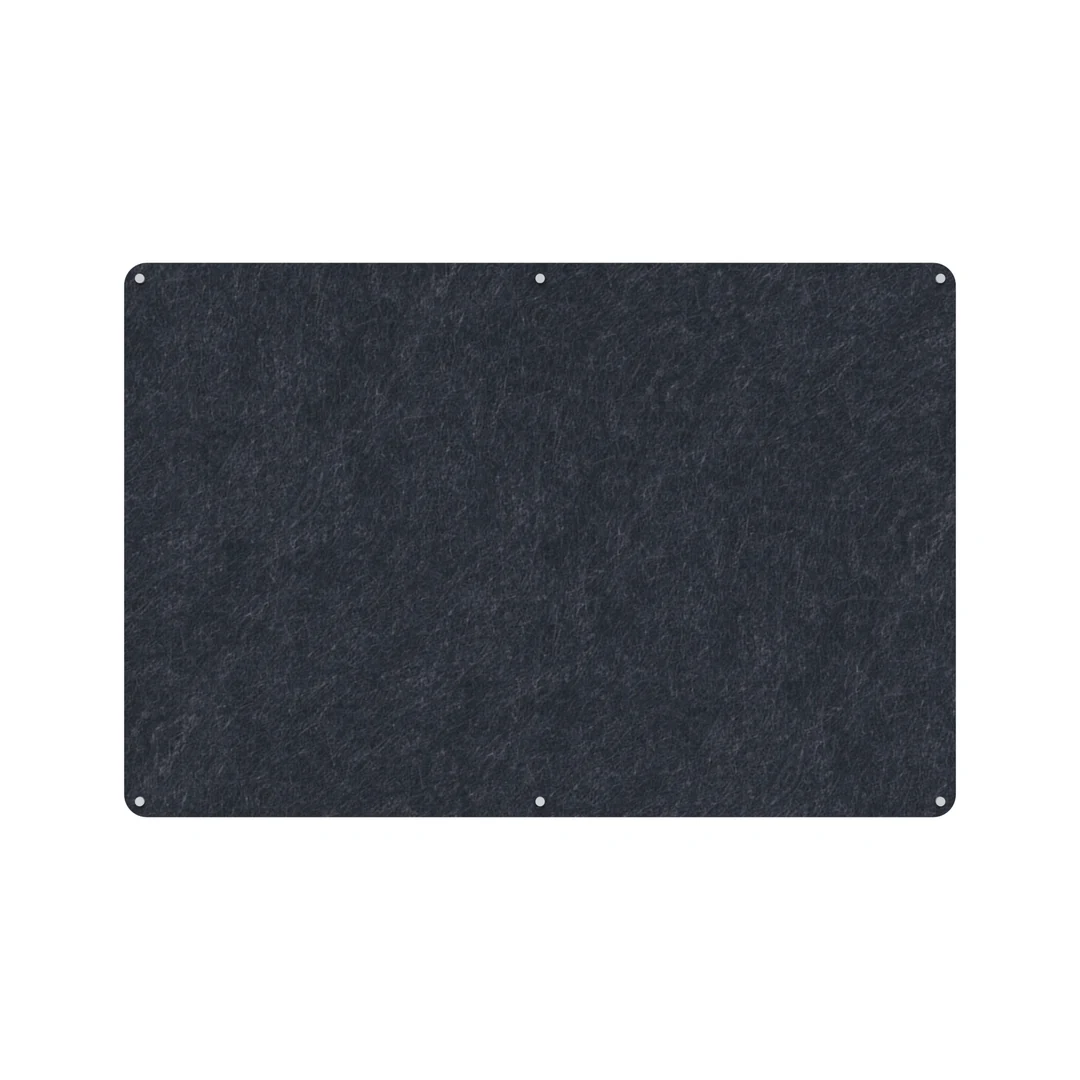

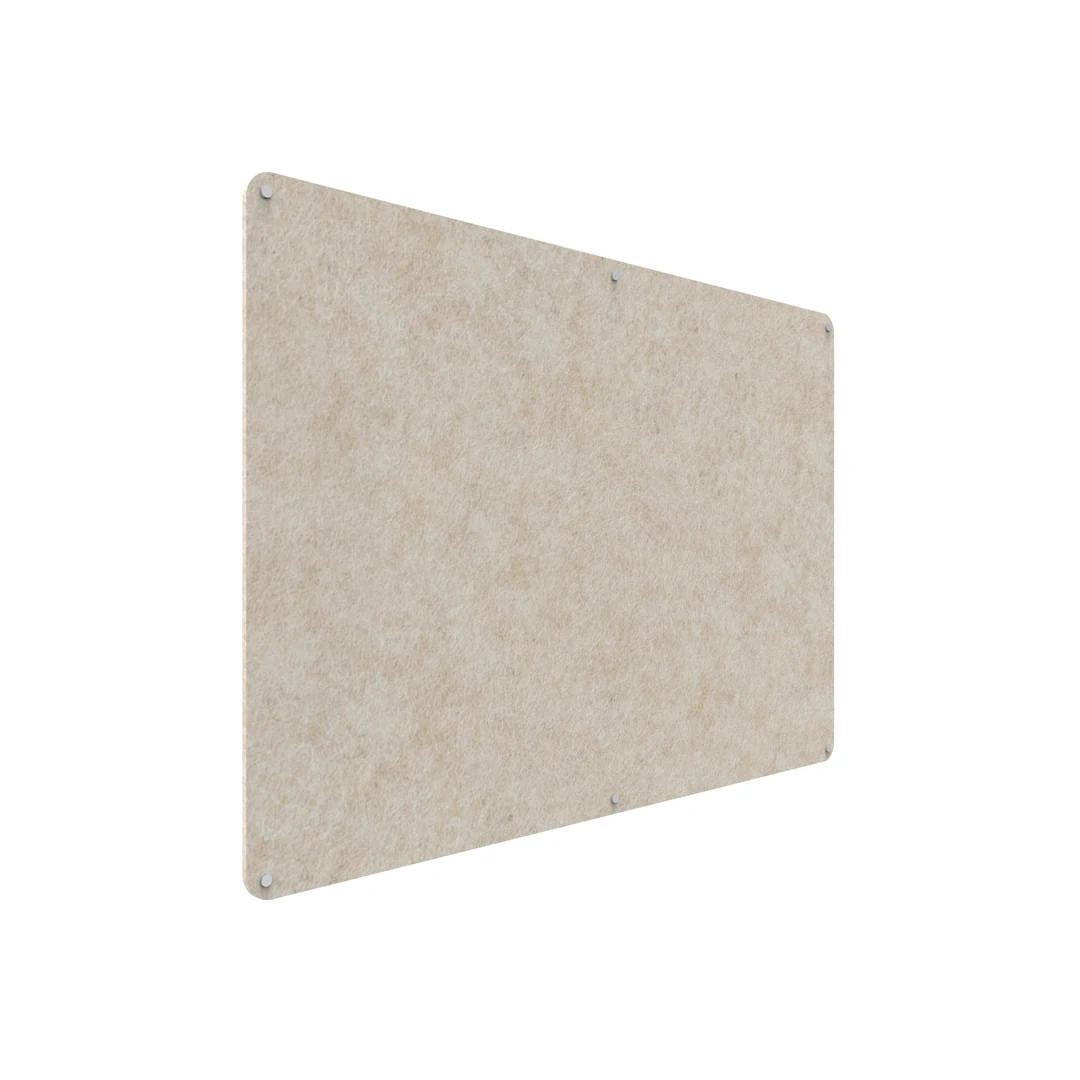

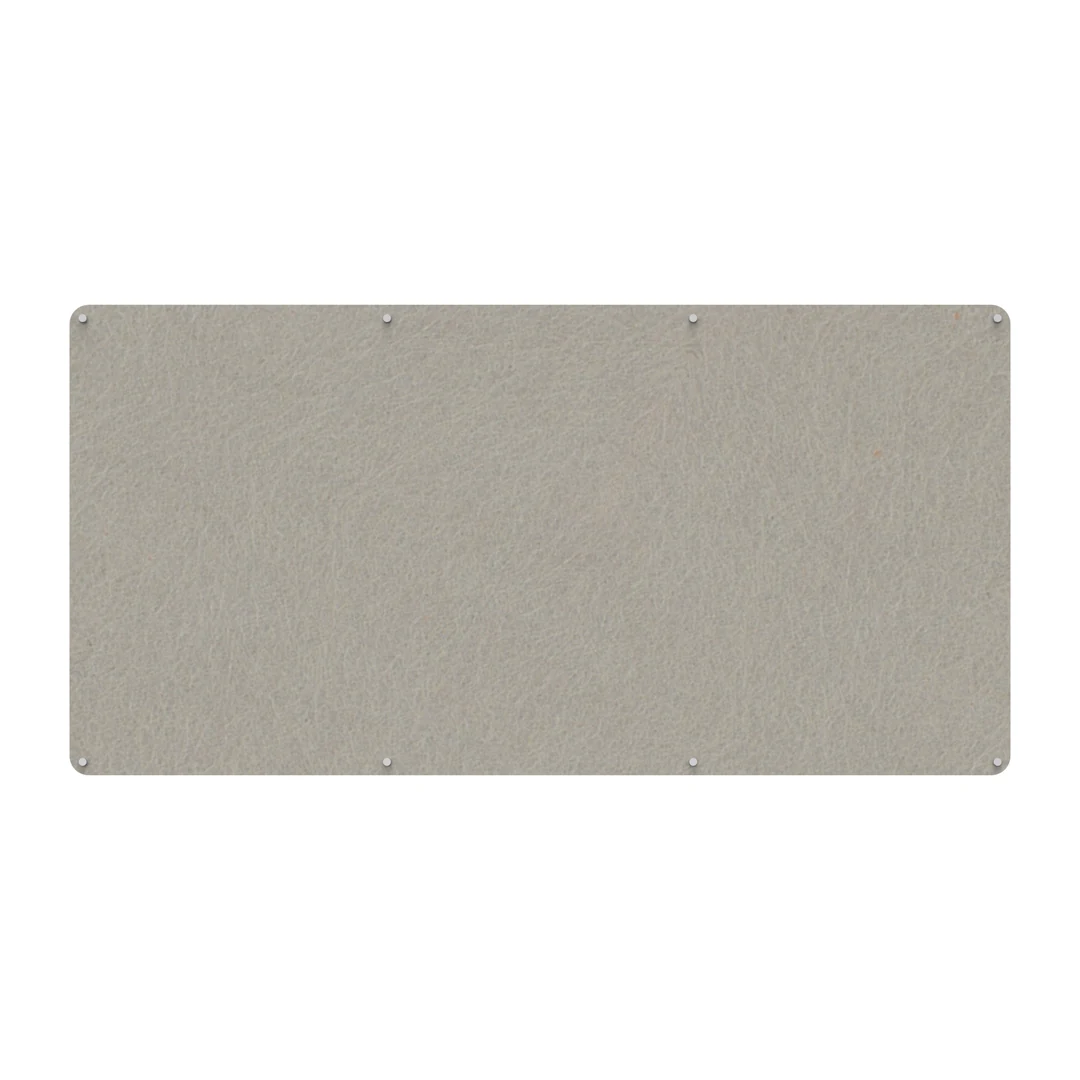

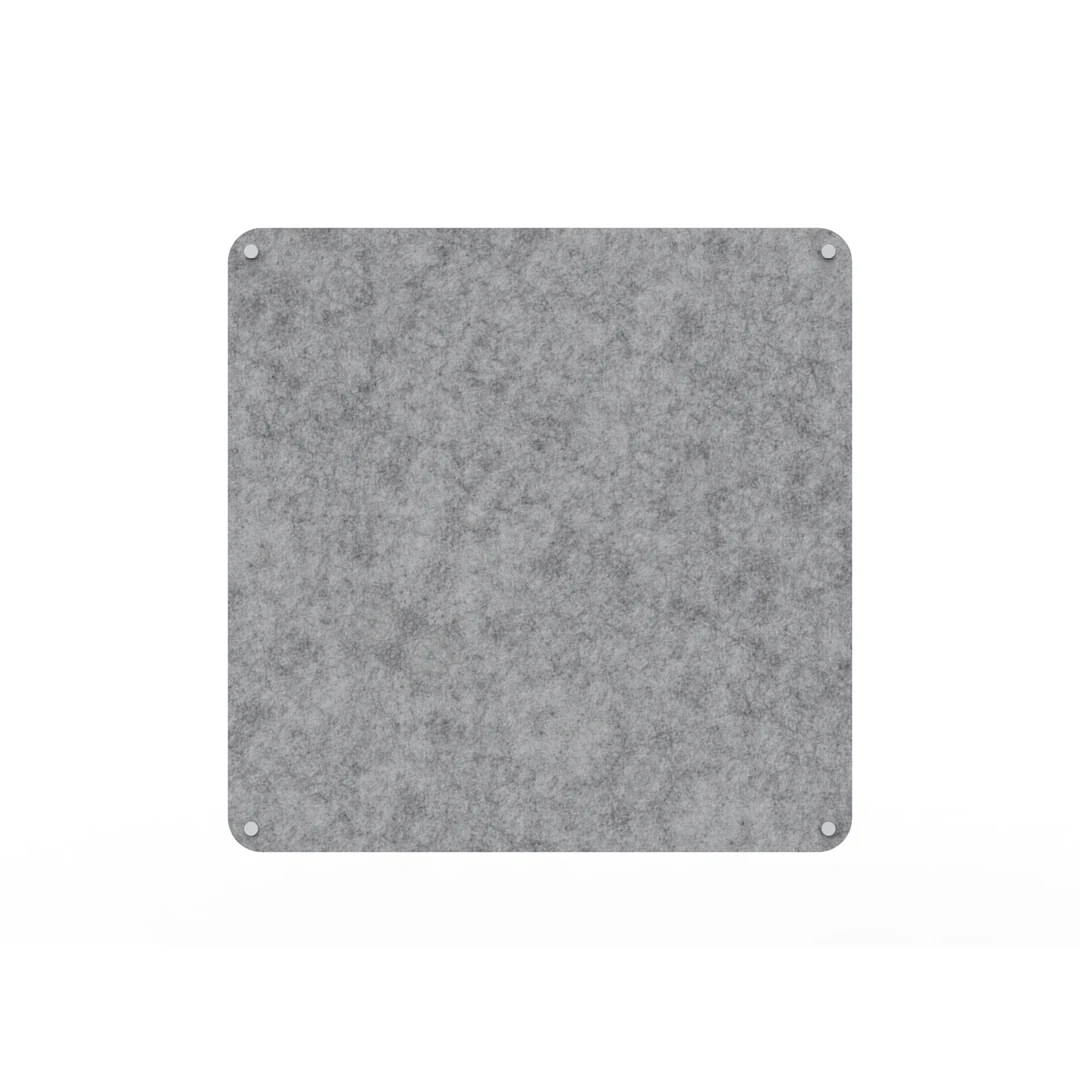

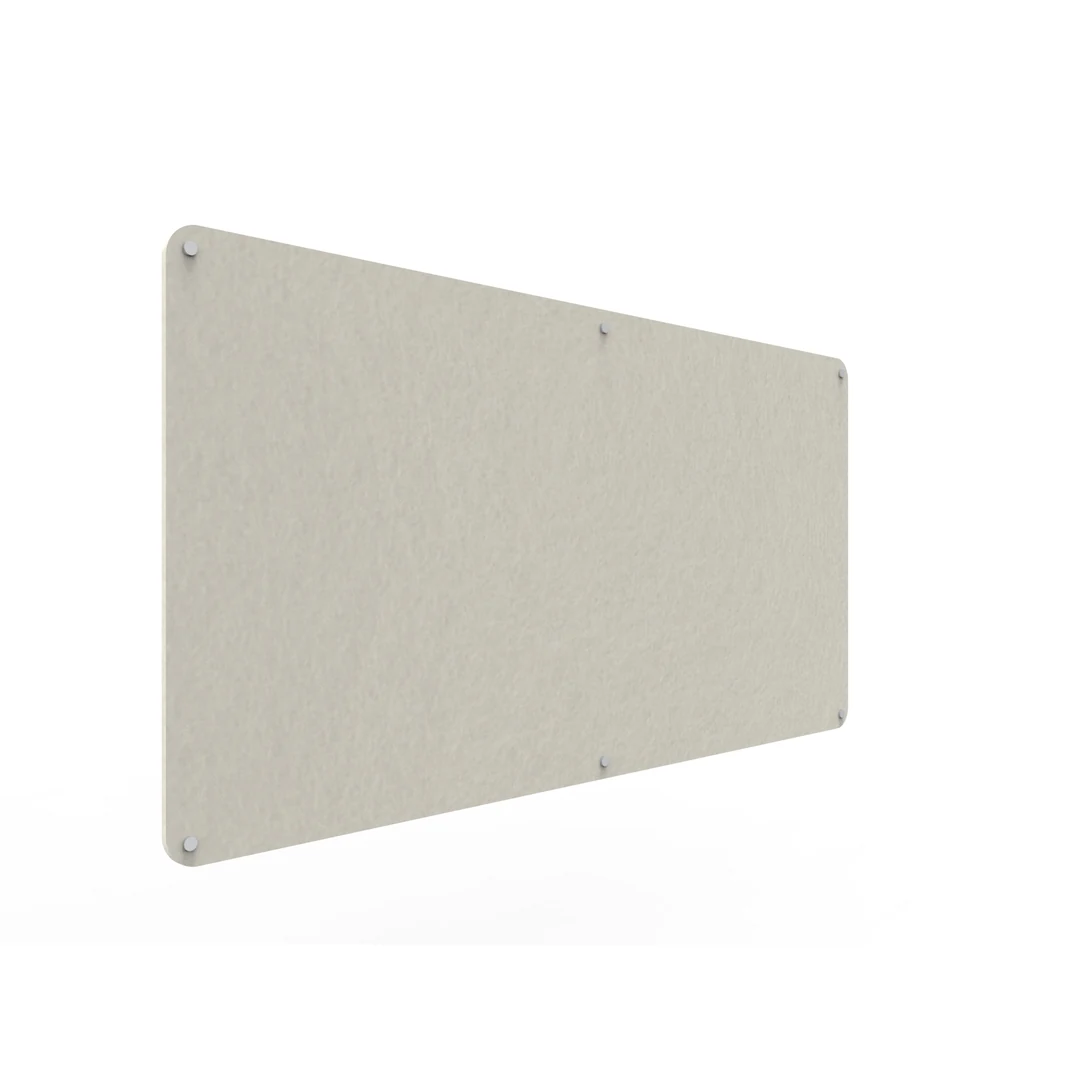

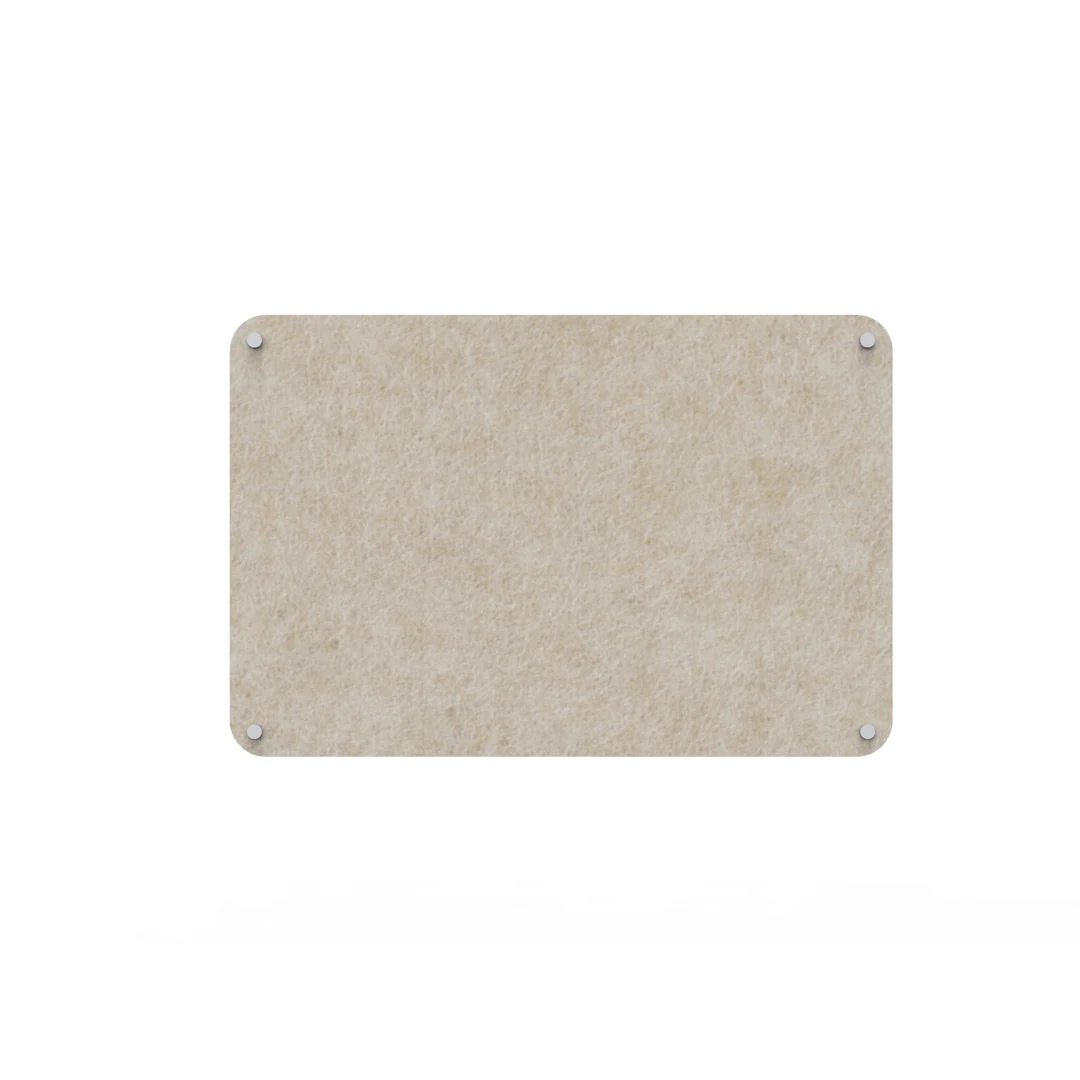

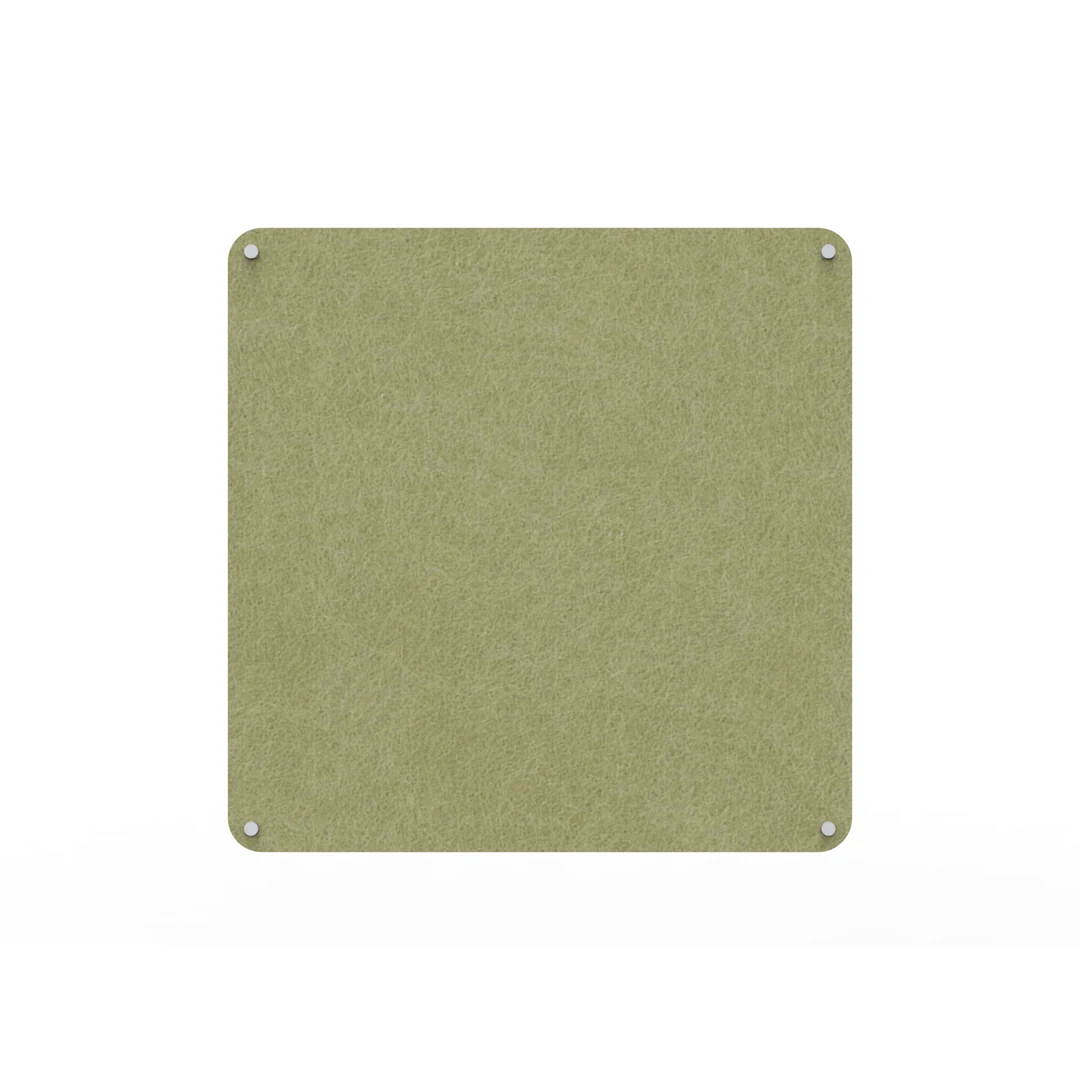

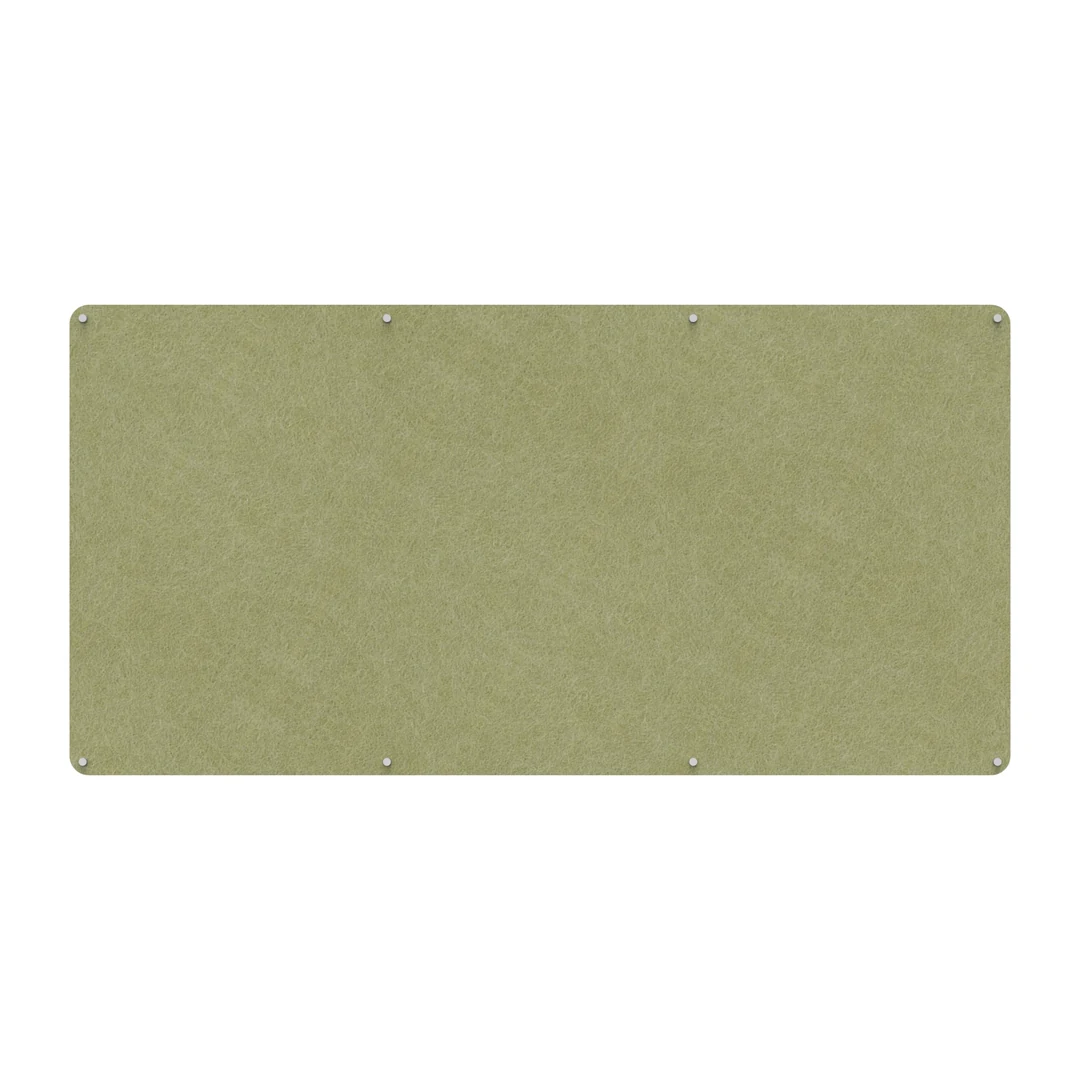

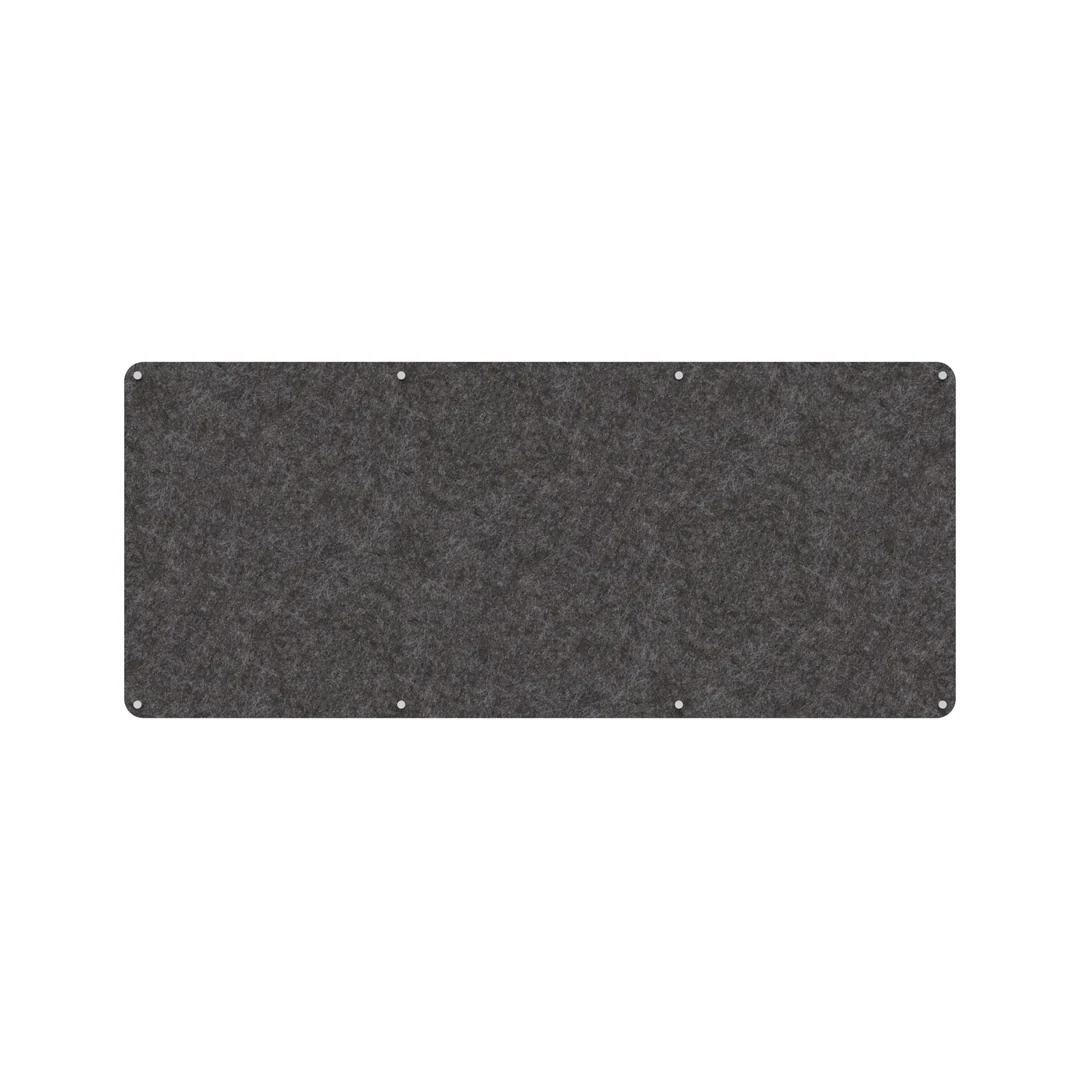

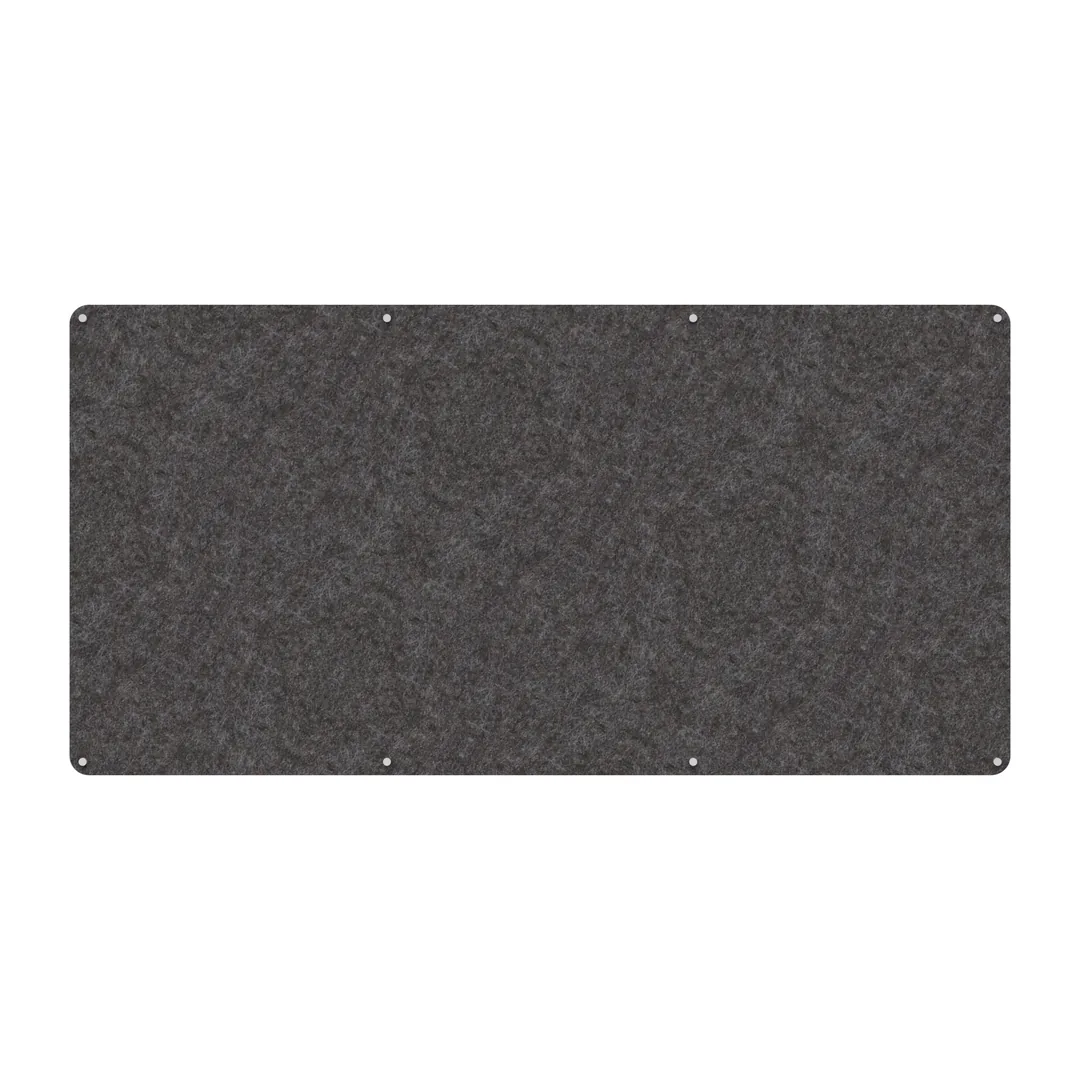

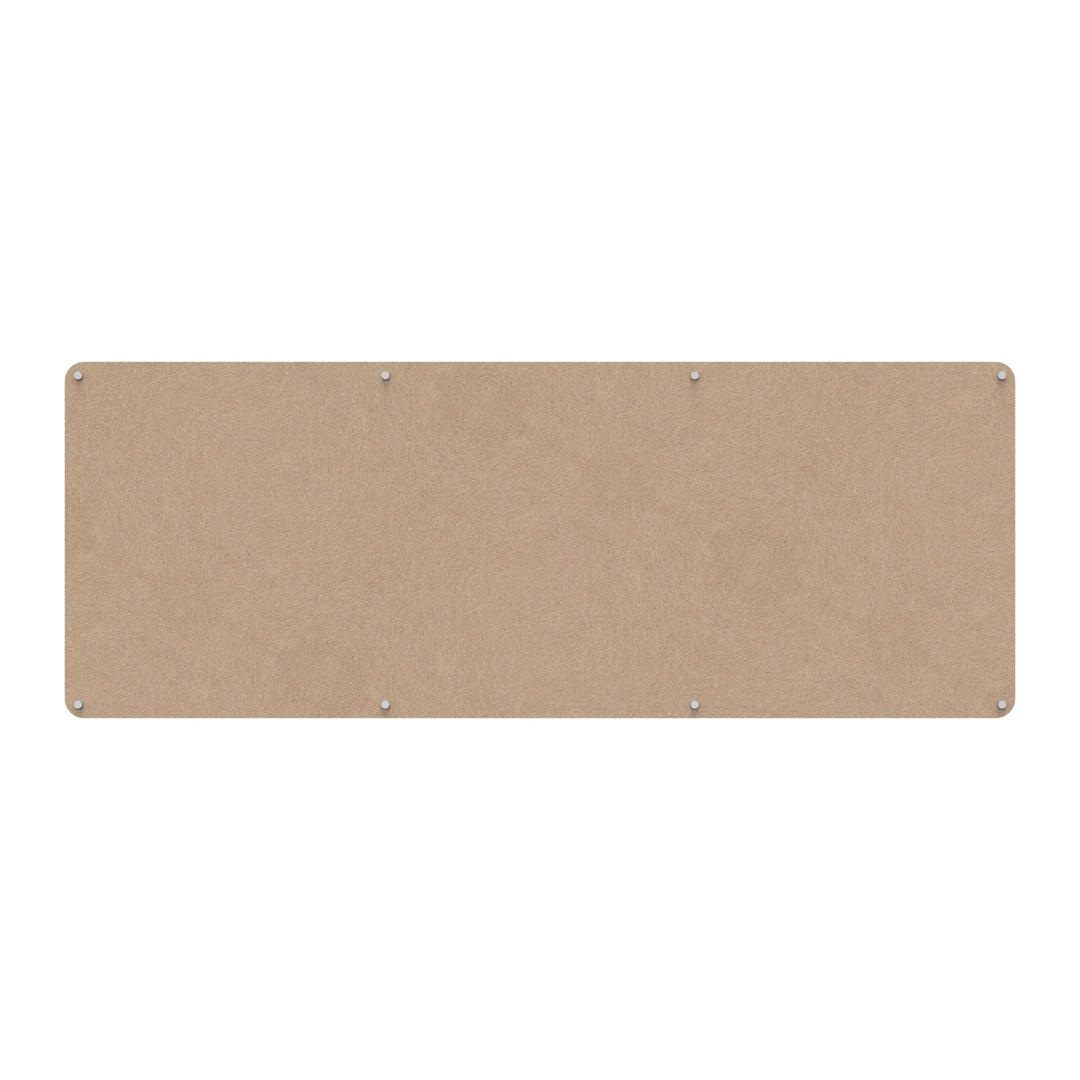

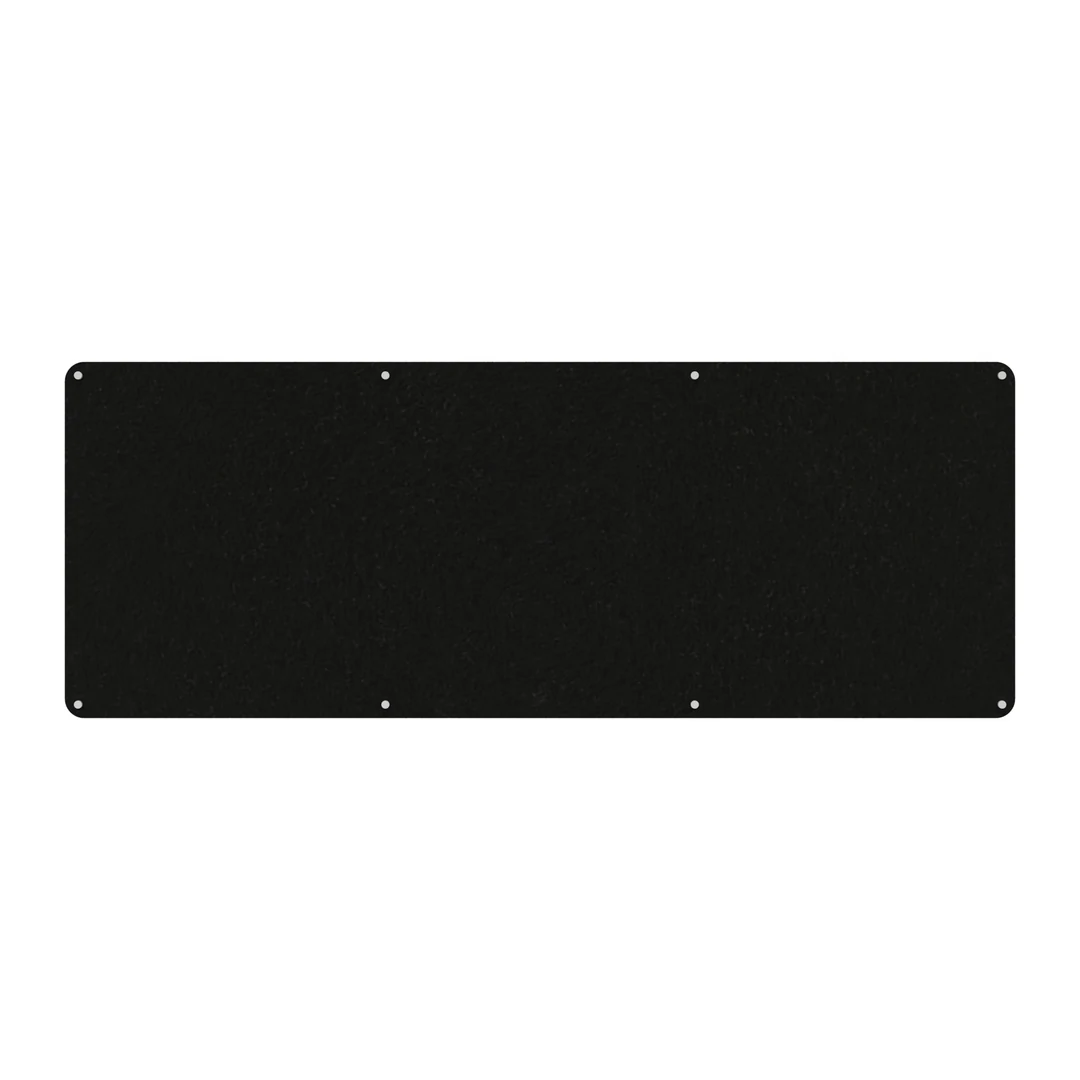

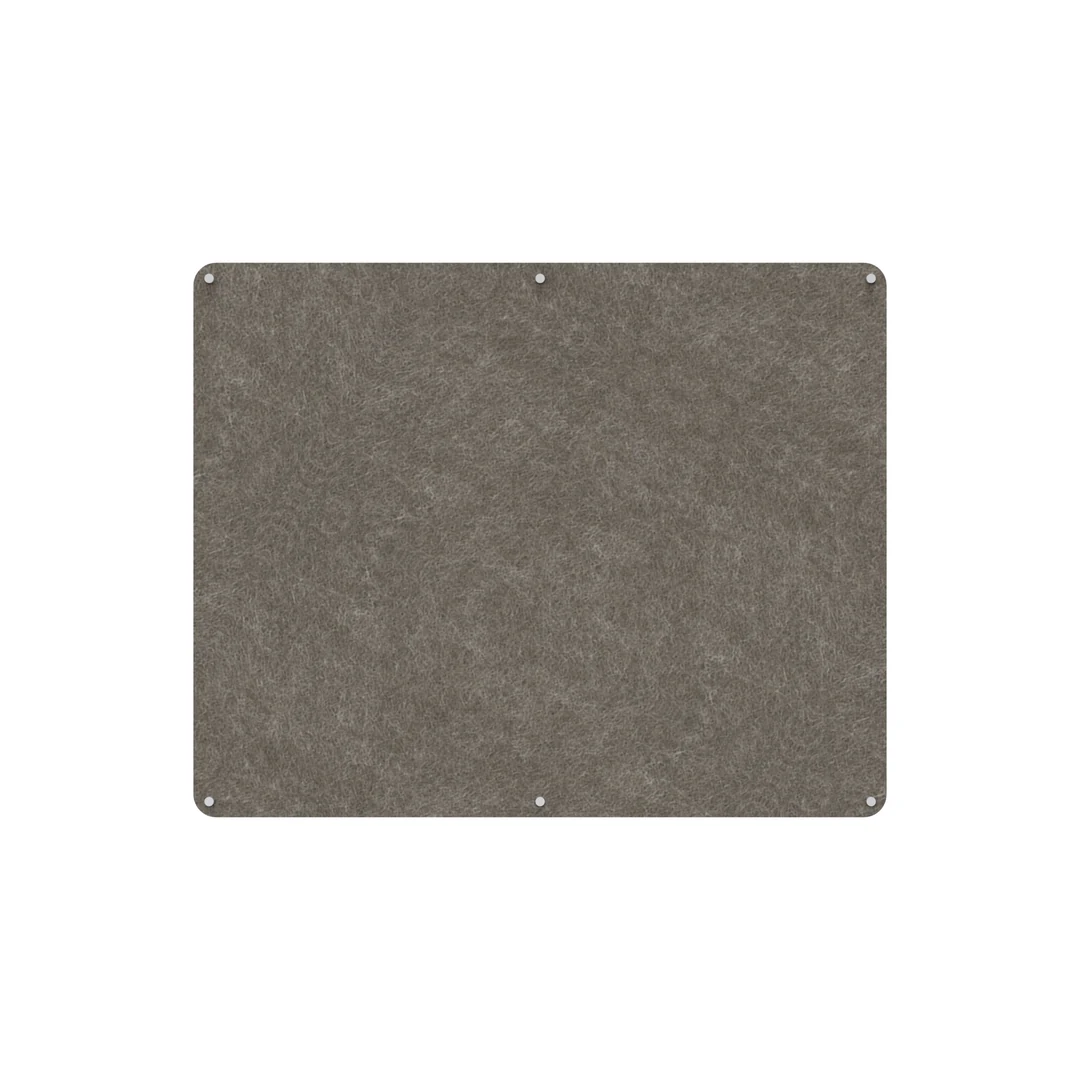

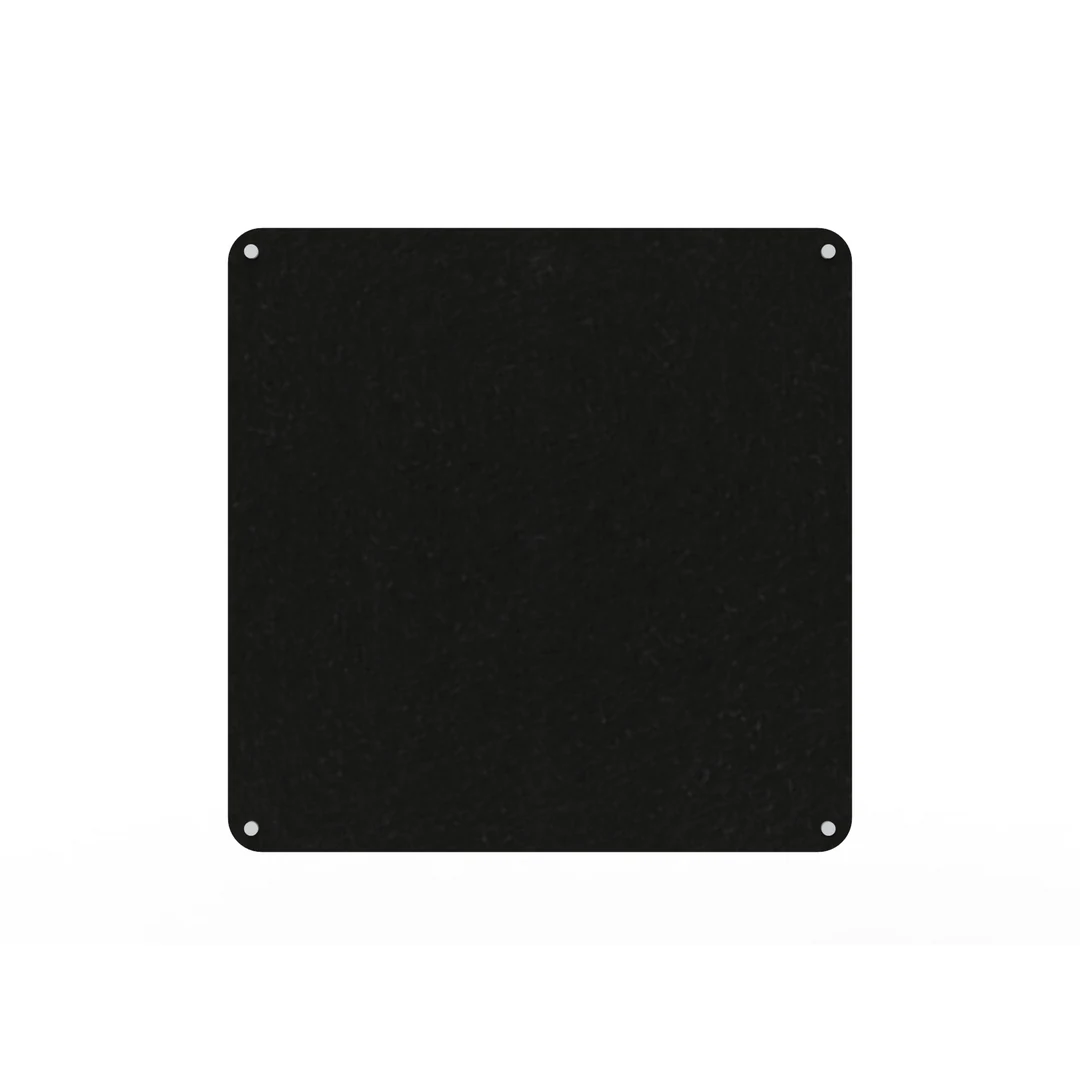

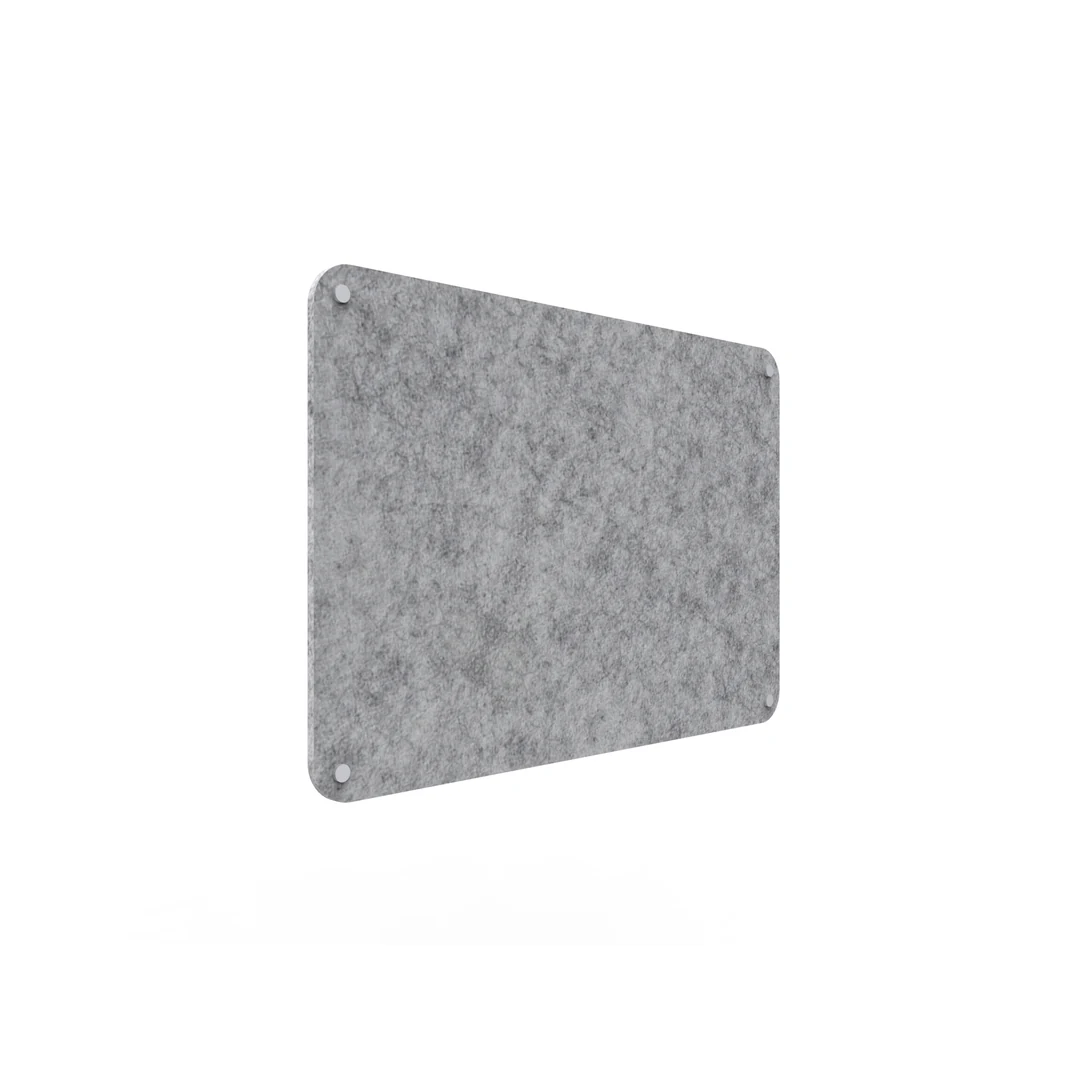

Its frameless design and rounded 50mm-radius corners give the board a clean, understated appearance. Twelve sizes, from 900 x 600mm to 2400 x 1200mm, suit everything from a compact staff notice area to a larger classroom or project display. Choose the dimensions around the available wall space and the amount of information the board needs to hold.
The 12mm board is manufactured from 100% polyester (PET) and has a supplier-listed NRC of 0.85. This allows the display surface to contribute to sound absorption as part of the room’s acoustic plan. For larger areas that need dedicated wall treatment, the matching Acouline acoustic wall panels offer another format within the same product range.
Select from 14 Habitat panel colours, then choose No Mounts, Black Screw Sets or Silver Screw Sets independently. The fixing options include the quantity required for the selected board width. Rapidline lists a Group 1 fire classification under AS 5637.1 and a 10-year warranty, making these frameless pinboards a considered option for commercial and educational interiors.
Key Features:
- Frameless acoustic pinboard for notices, teaching resources and collaboration
- Pinnable surface manufactured from 100% polyester (PET)
- 12 sizes from 900 x 600mm to 2400 x 1200mm
- 12mm thick with four rounded 50mm-radius corners
- Supplier-listed acoustic rating: NRC 0.85
- 14 Habitat panel colours
- Choose No Mounts, Black Screw Sets or Silver Screw Sets
- Fixing quantities are matched to the selected board width
- Fixing colour is selected independently of the pinboard colour
- Group 1 fire classification under AS 5637.1, as listed by Rapidline
- Backed by a 10-year warranty
Specifications:
- Material: 100% polyester (PET)
- Thickness: 12mm

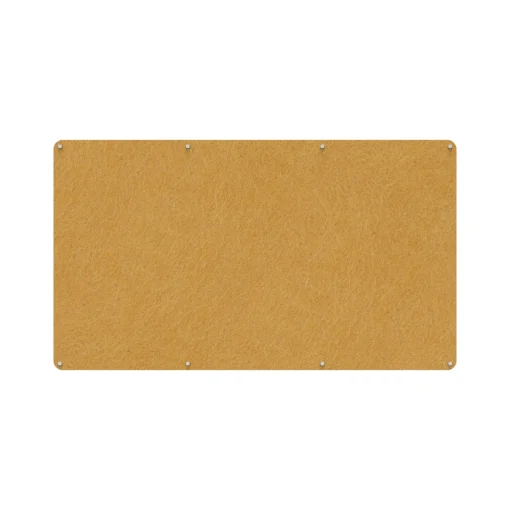

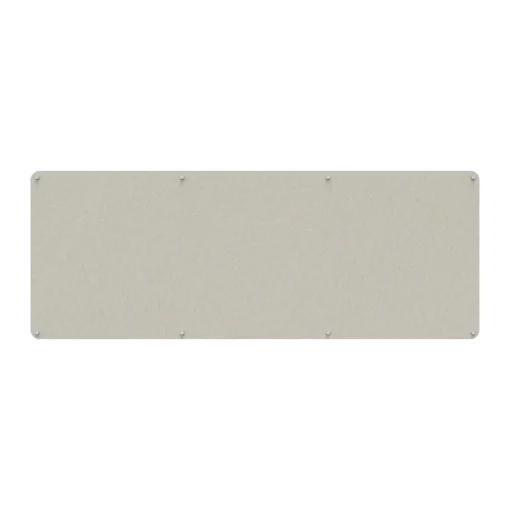

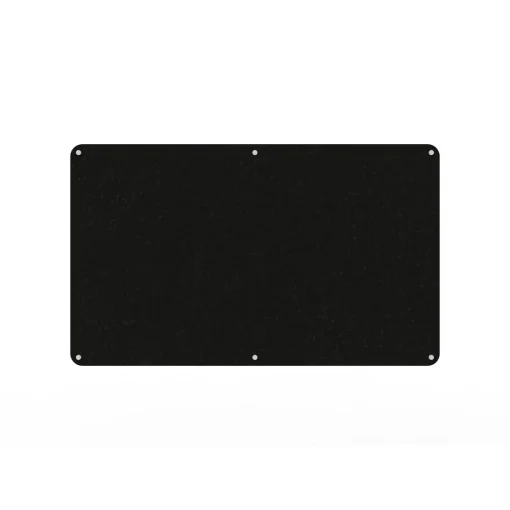

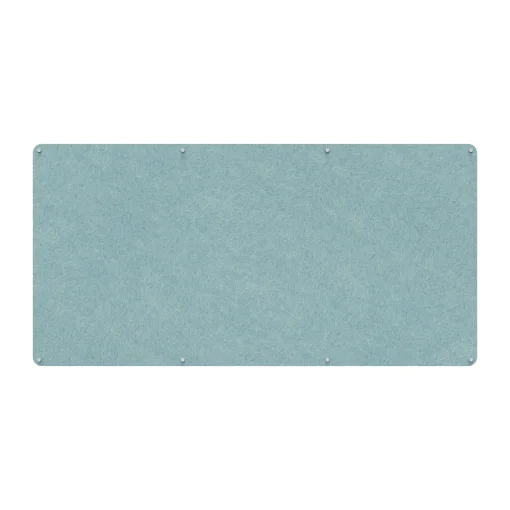

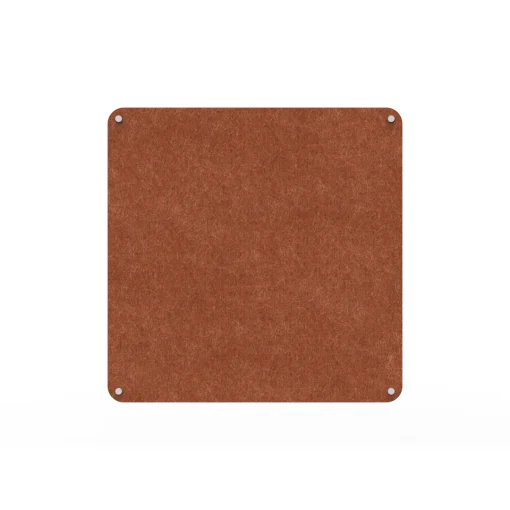

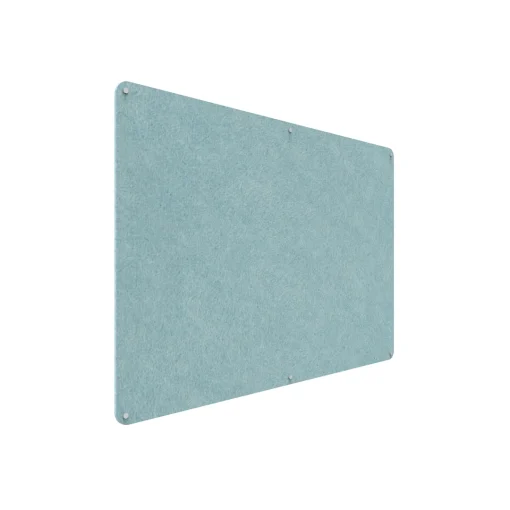

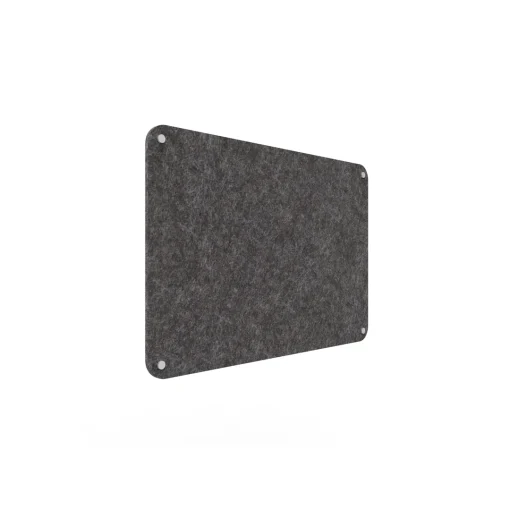

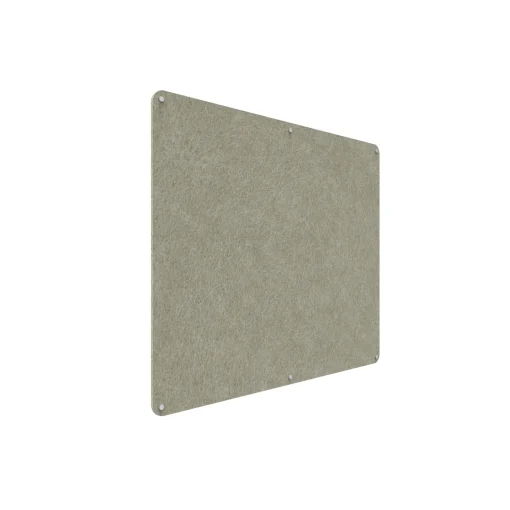

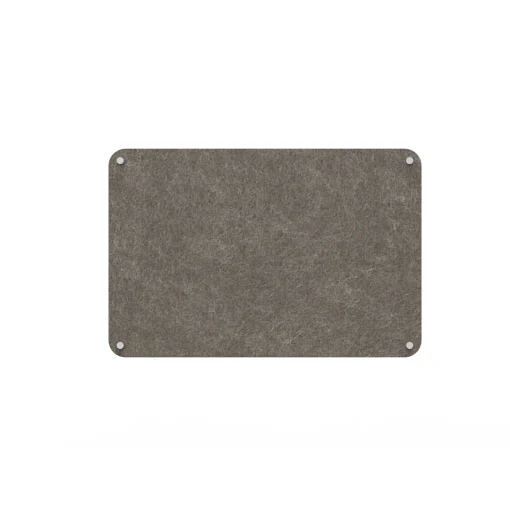

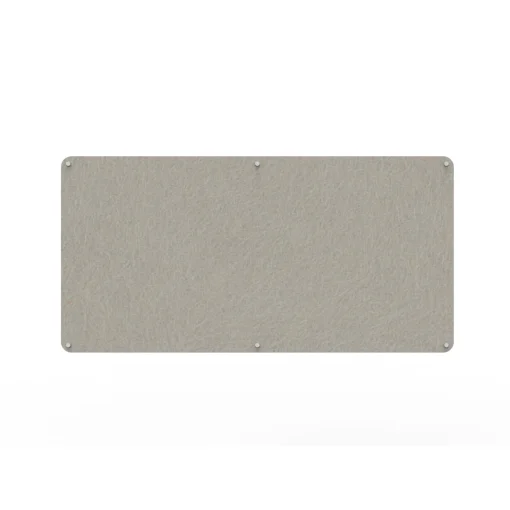

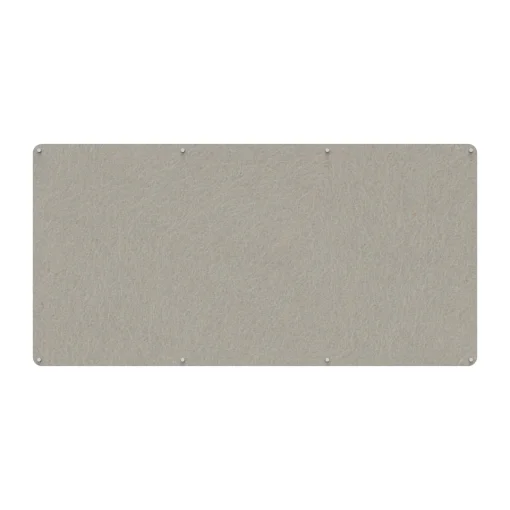

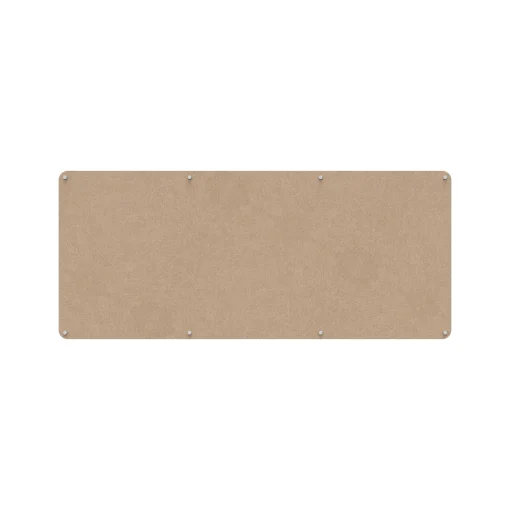

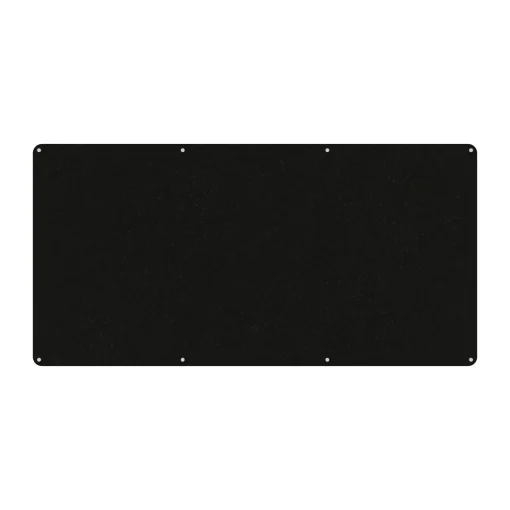

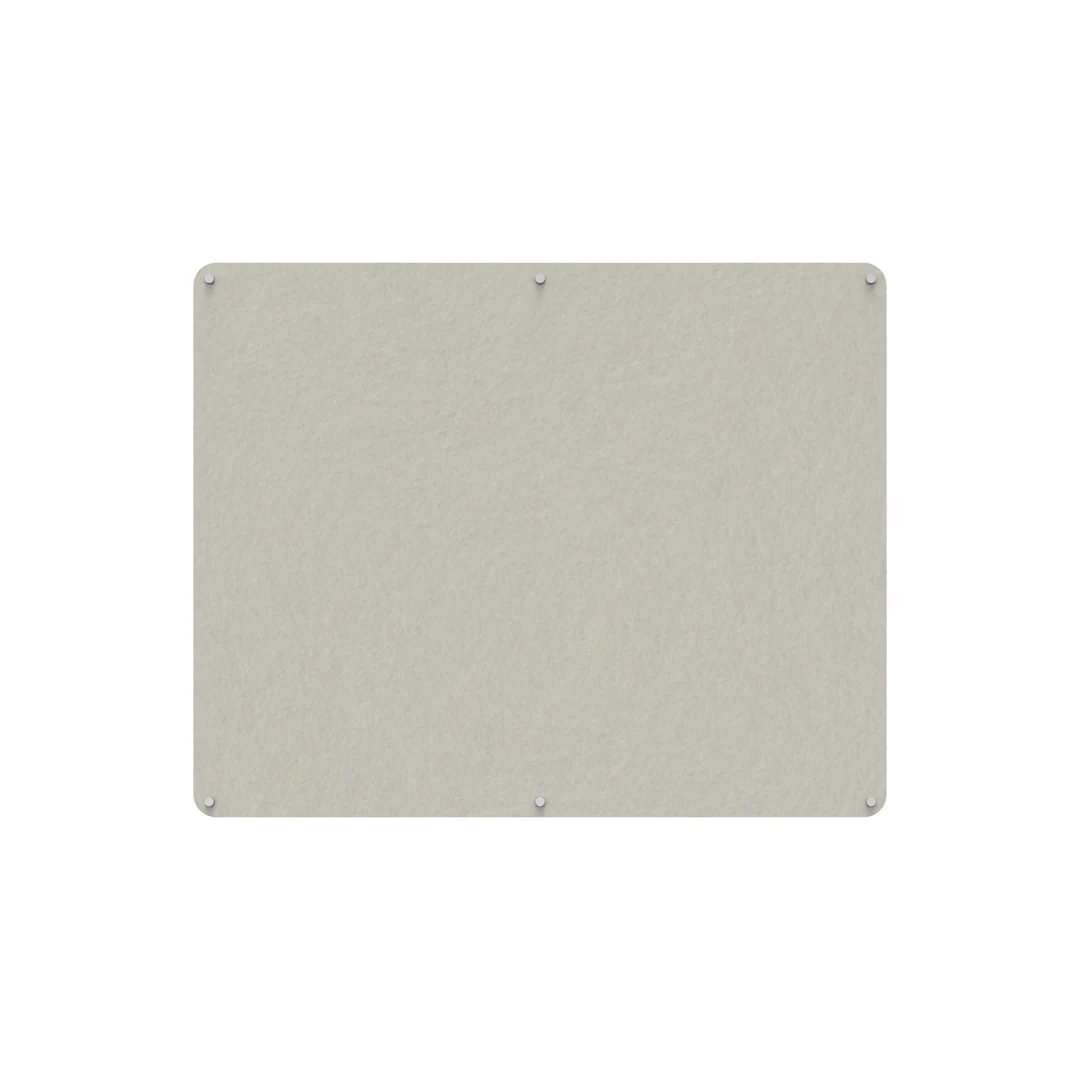

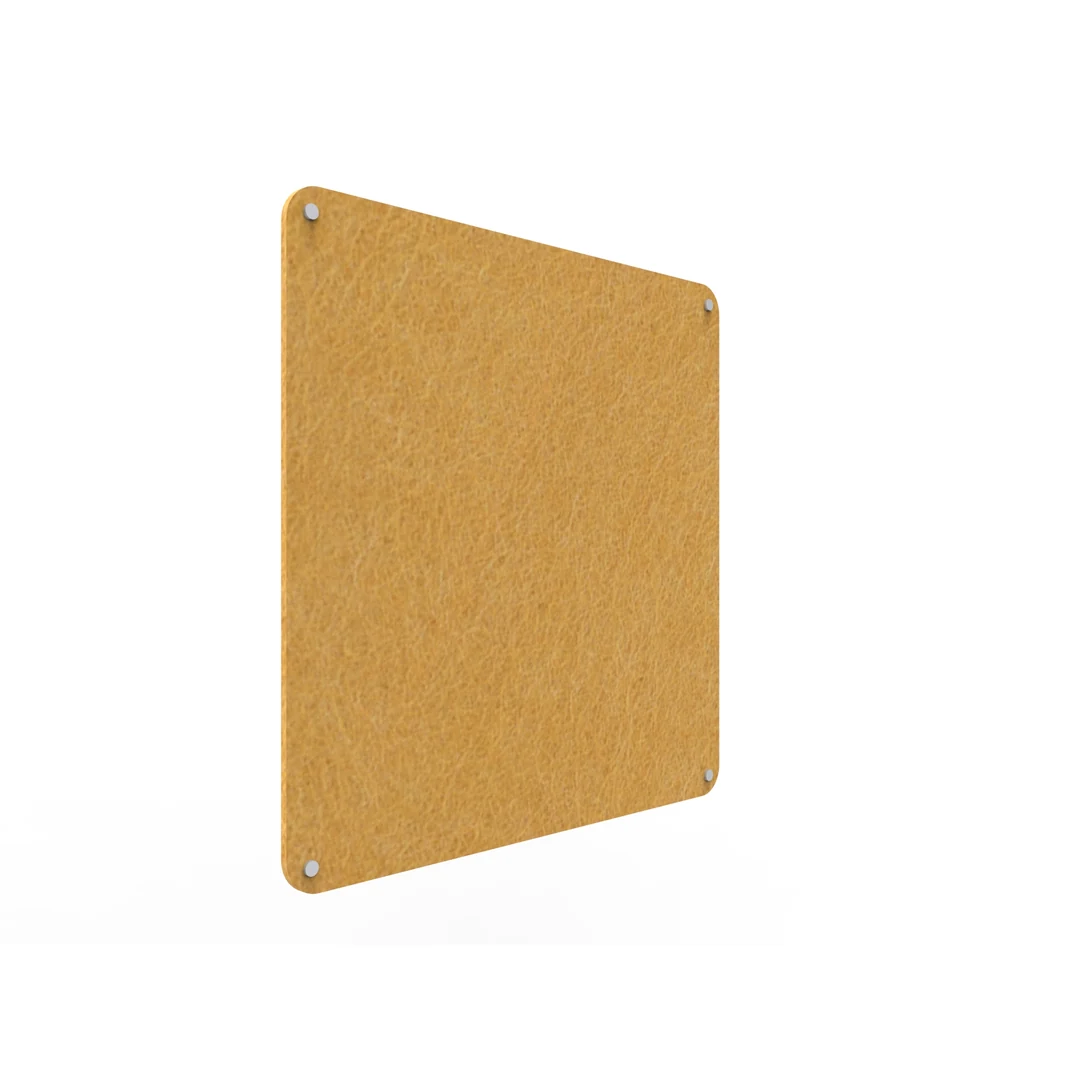

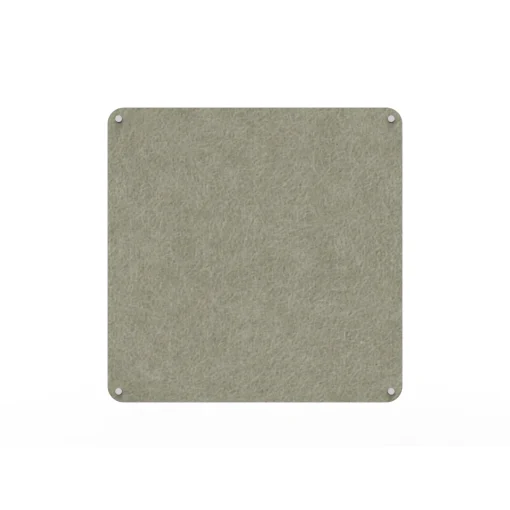

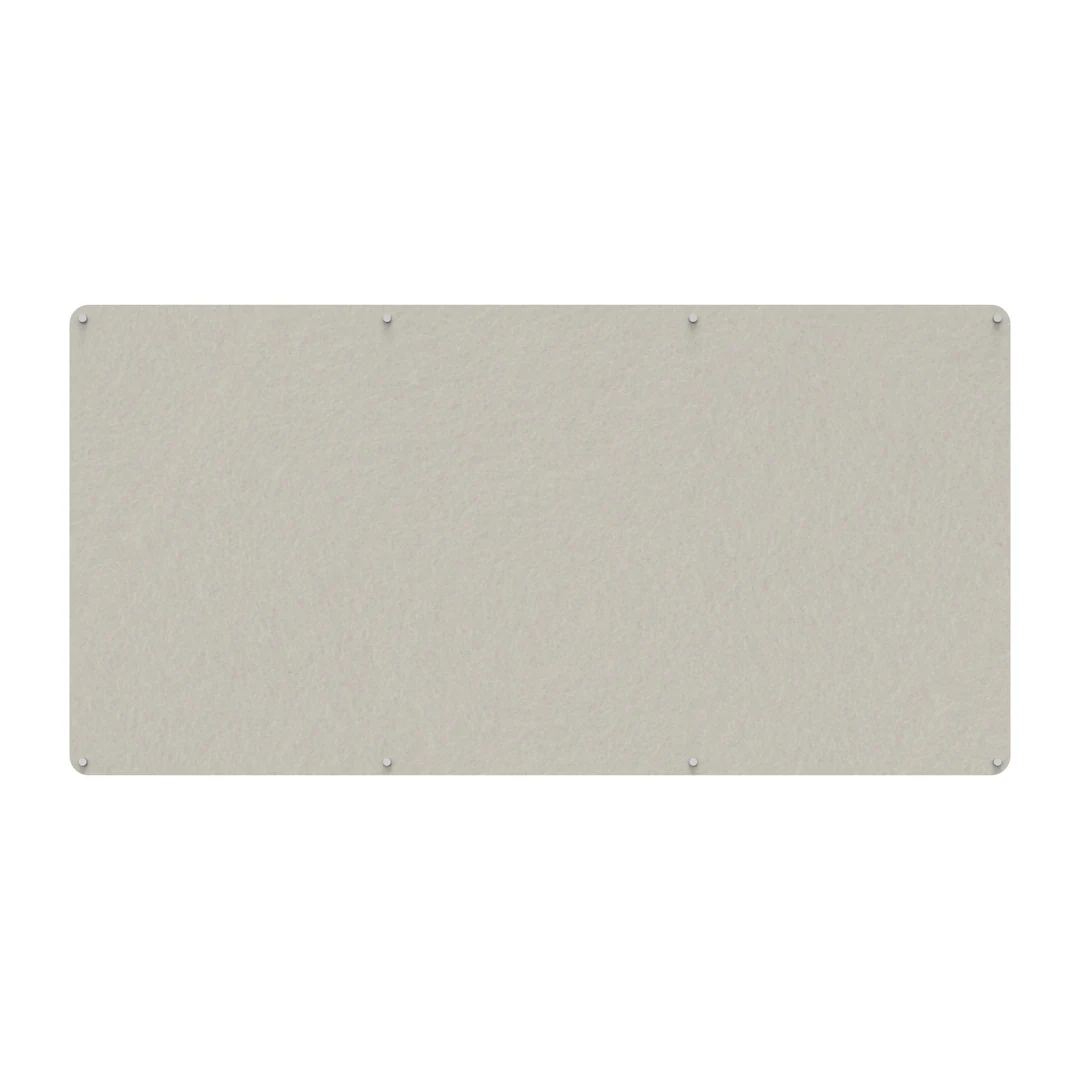

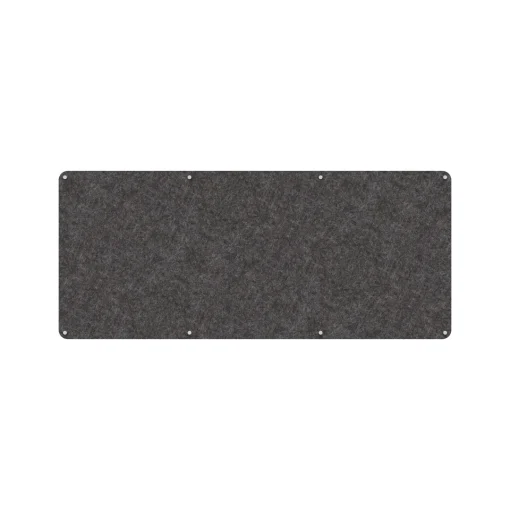

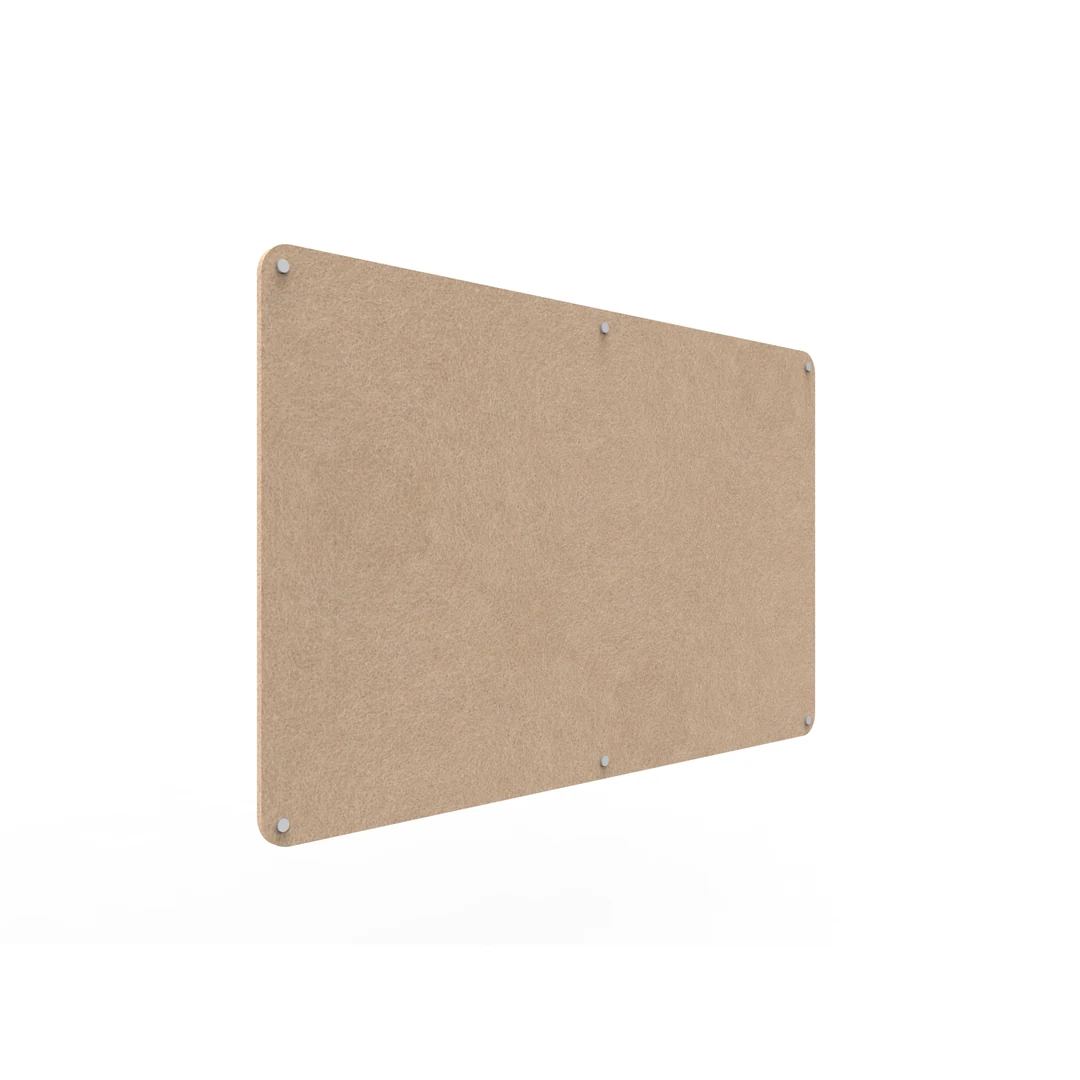

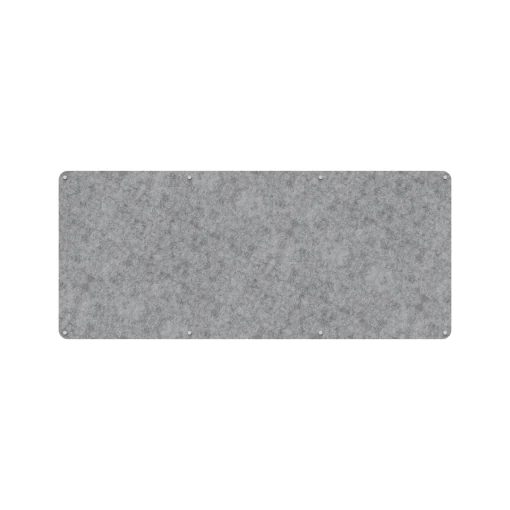

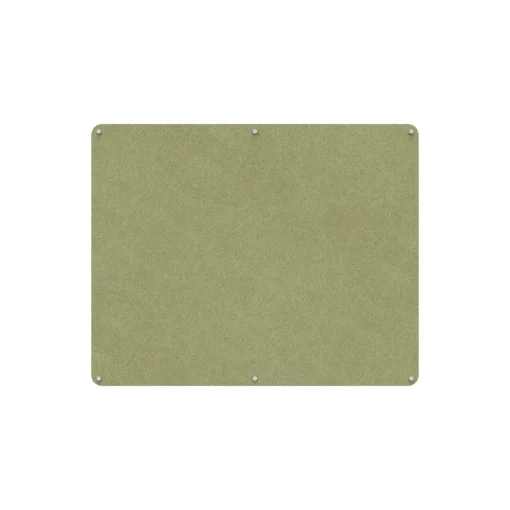

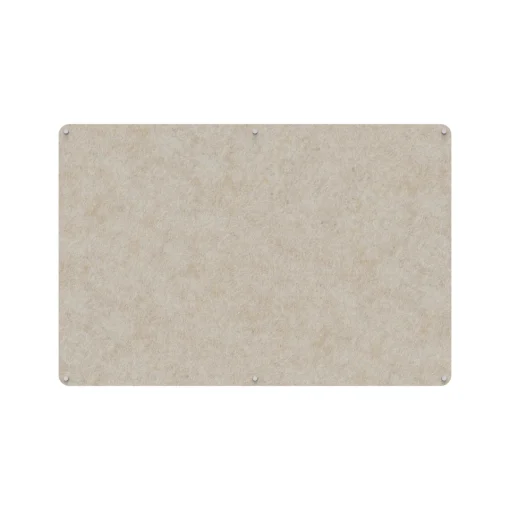

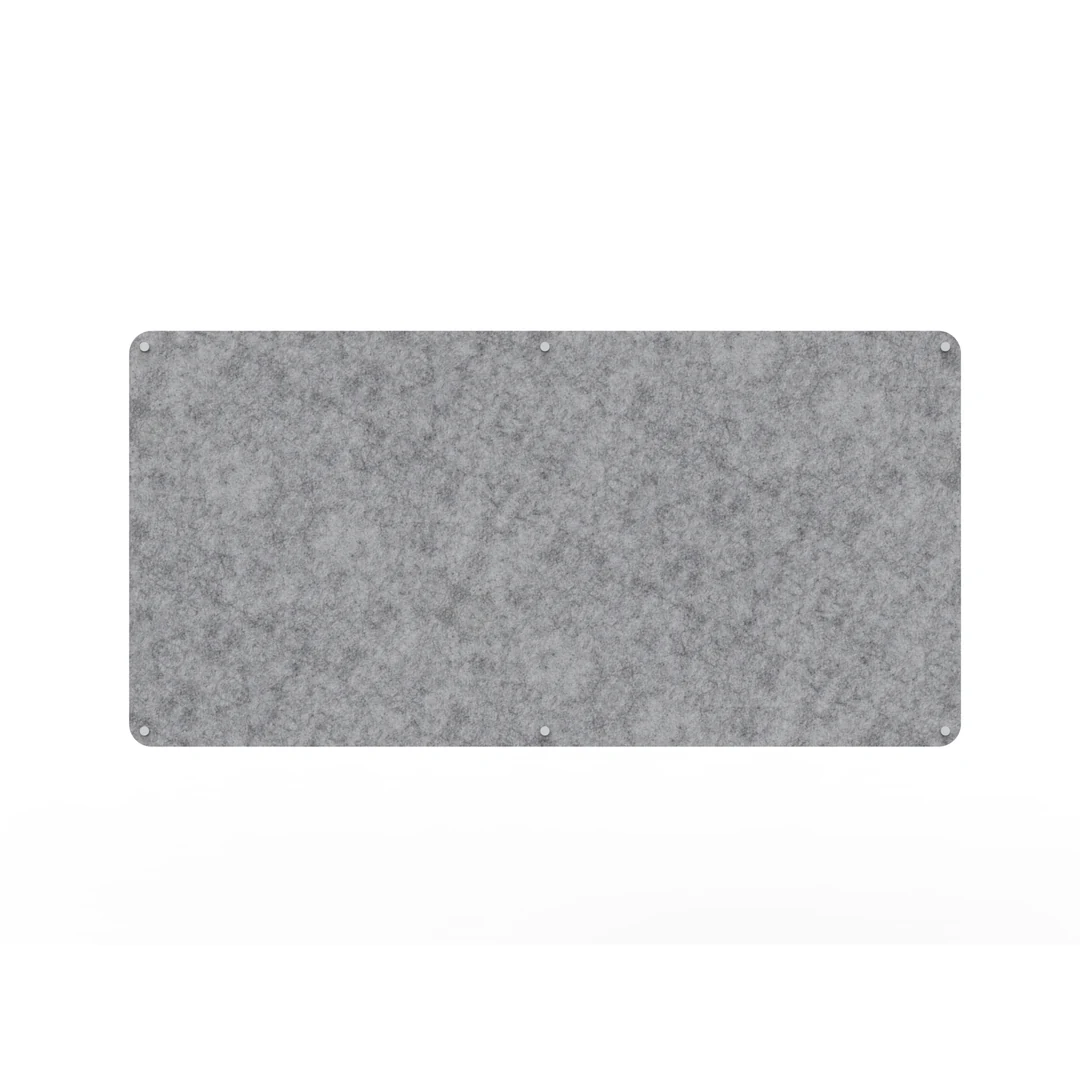

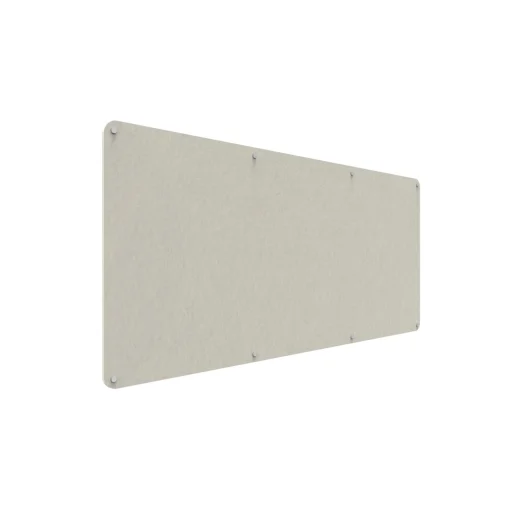

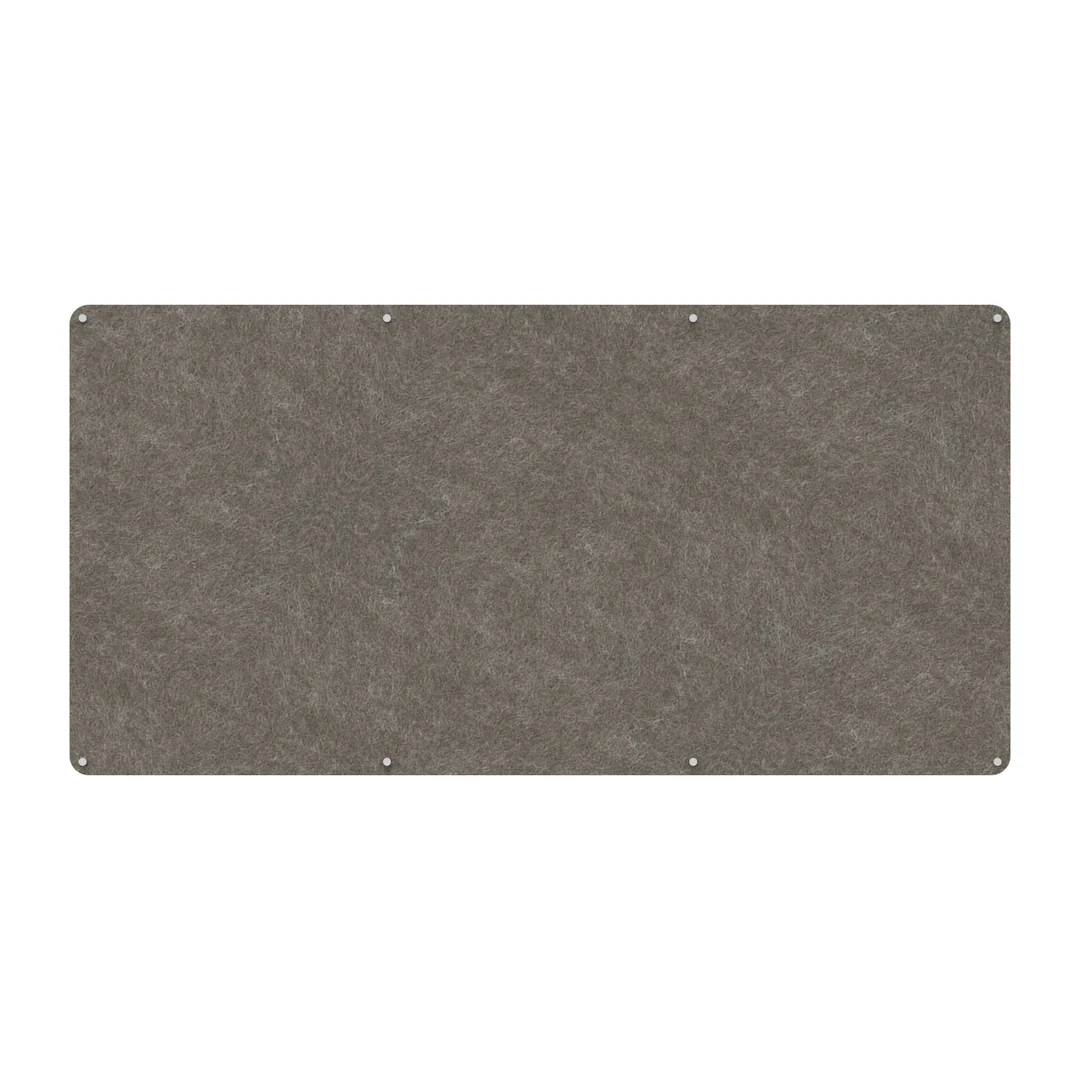

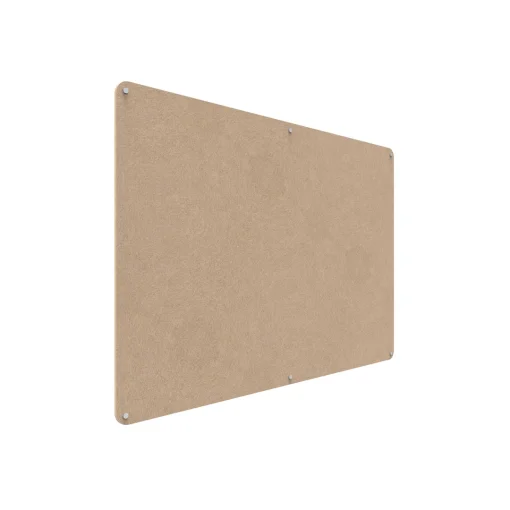

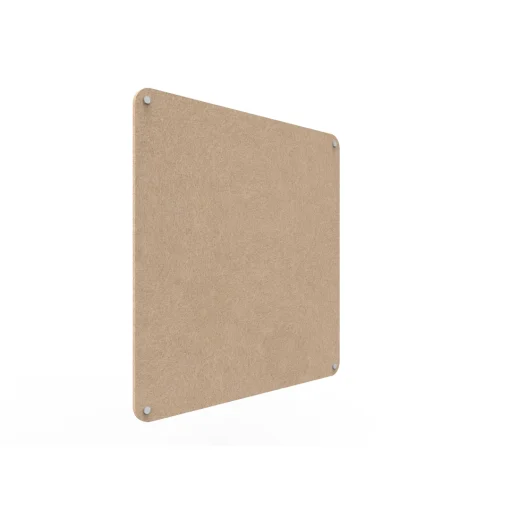

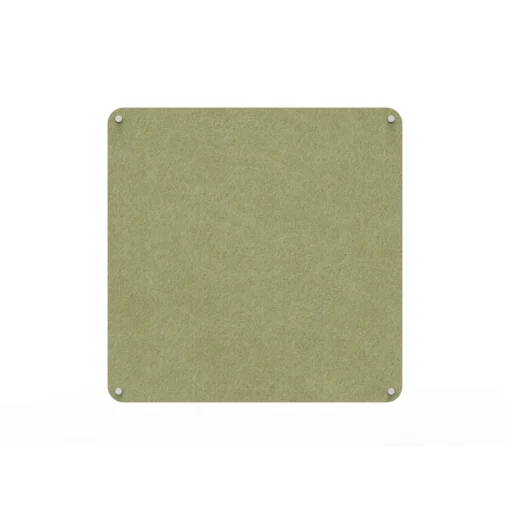

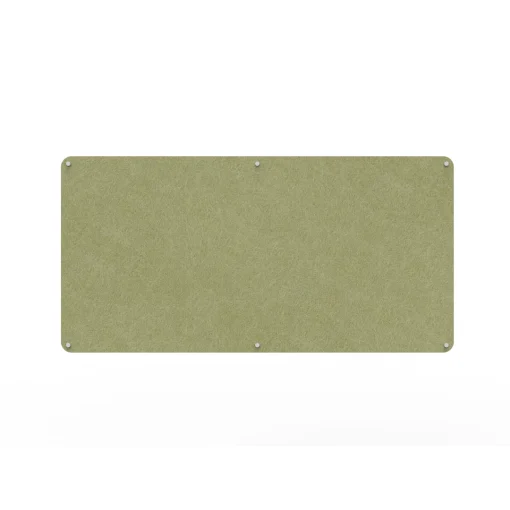

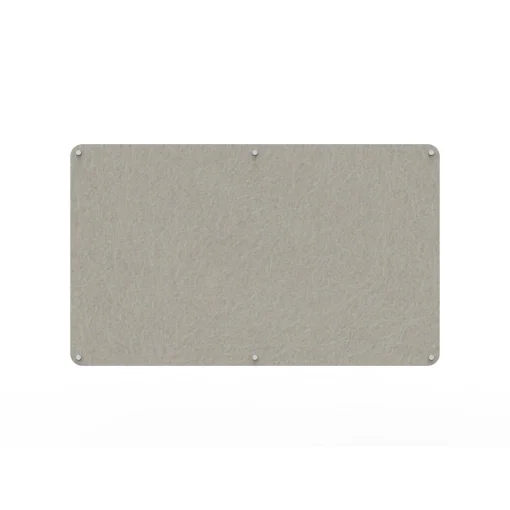

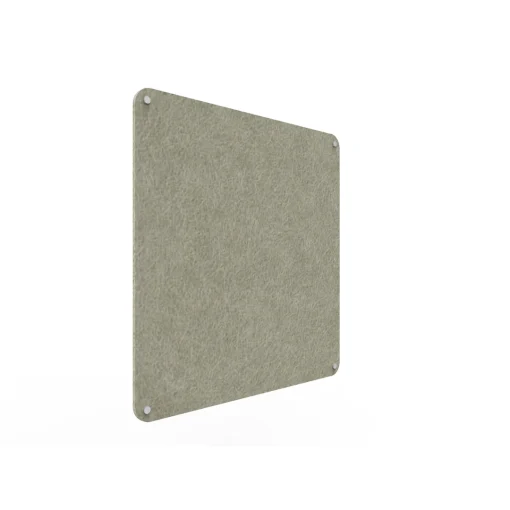

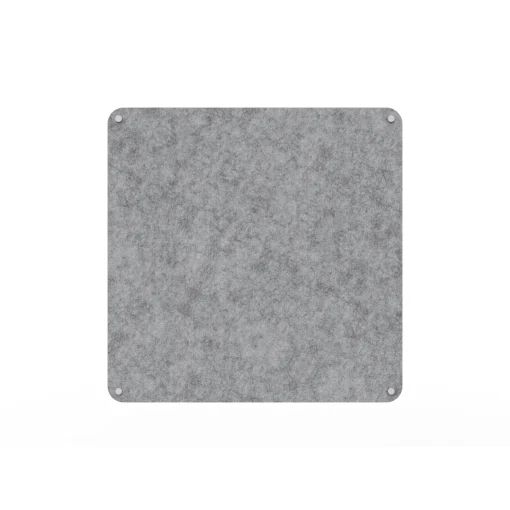

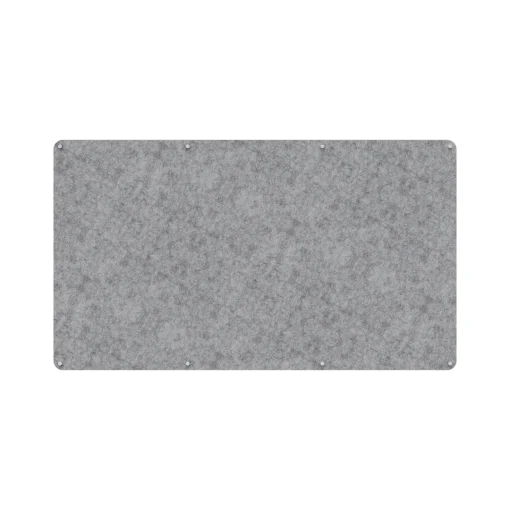

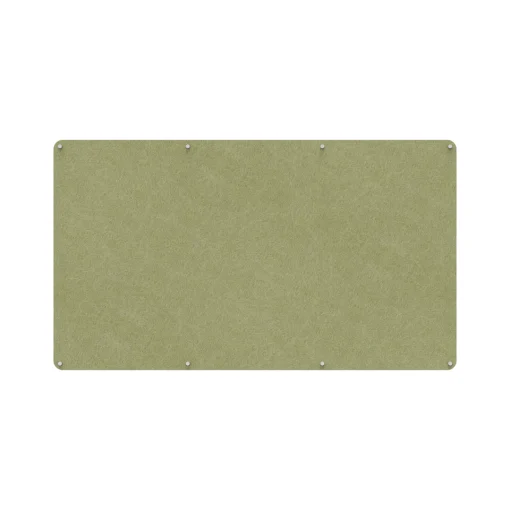

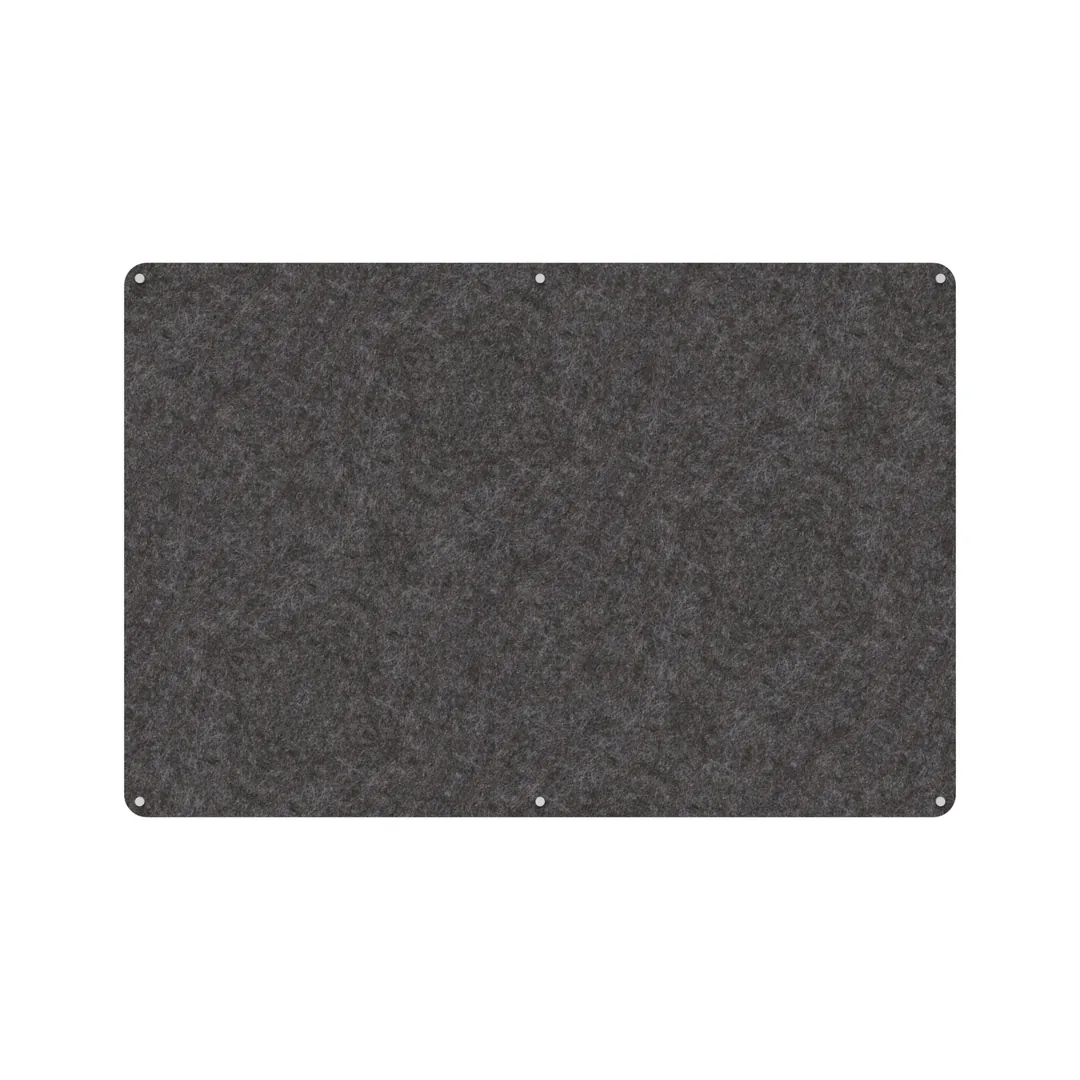

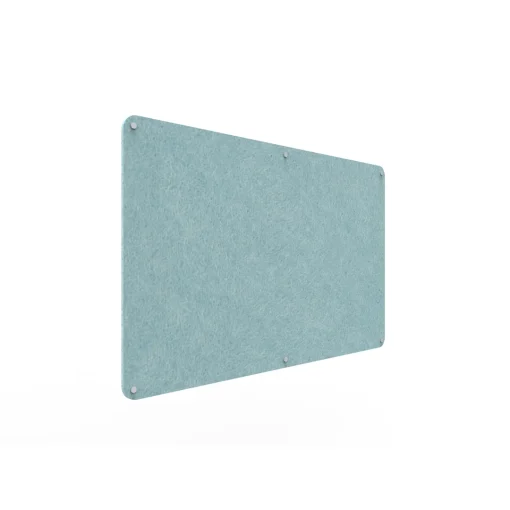

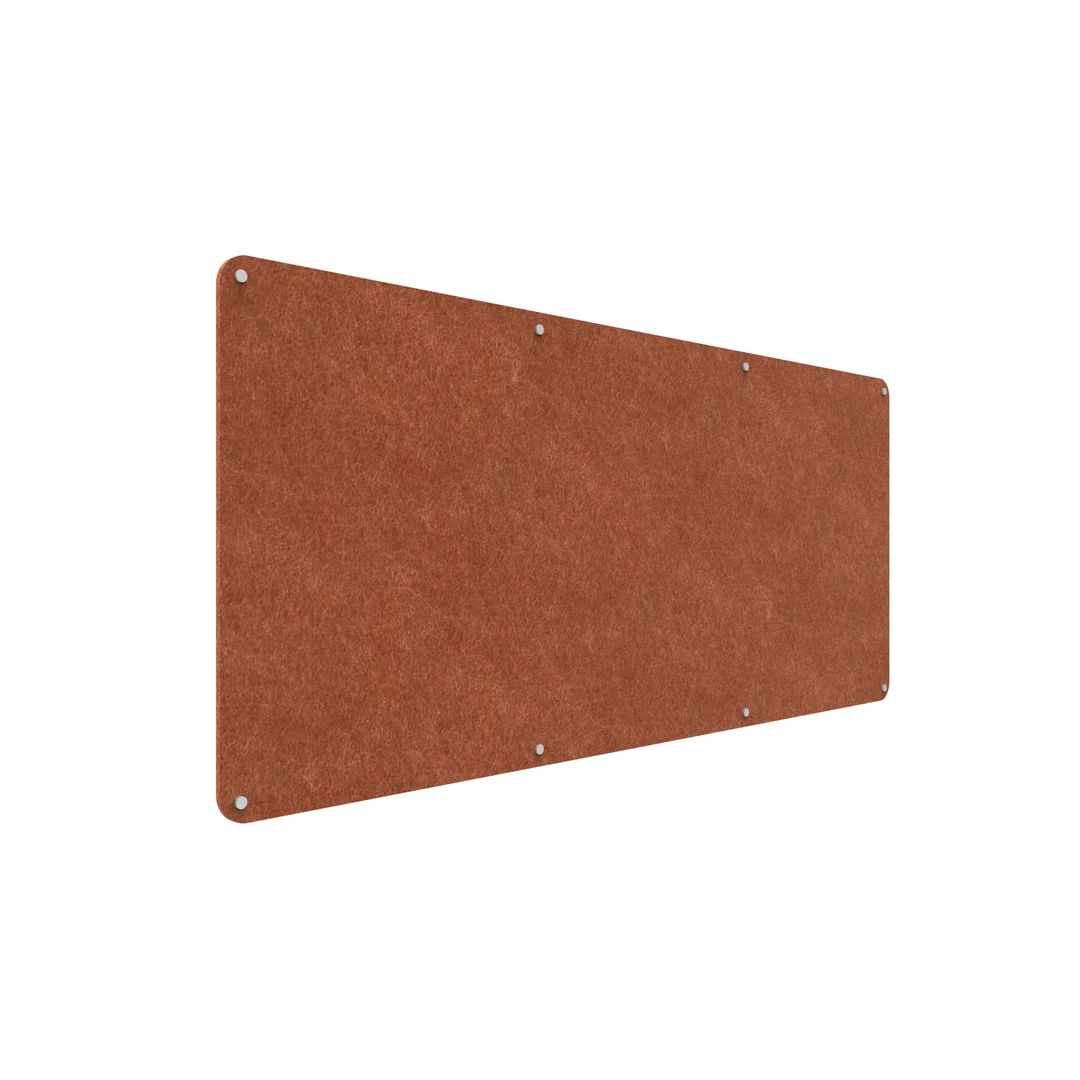

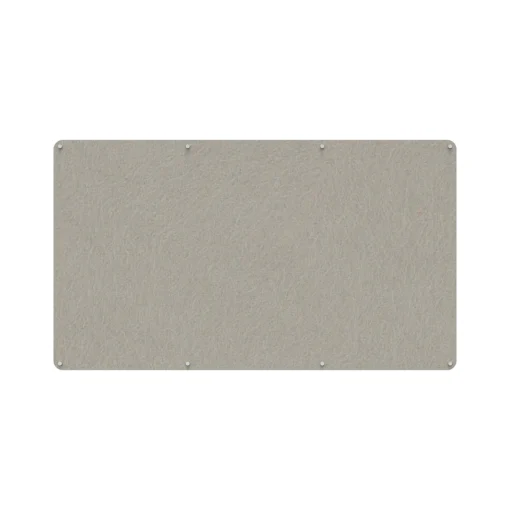

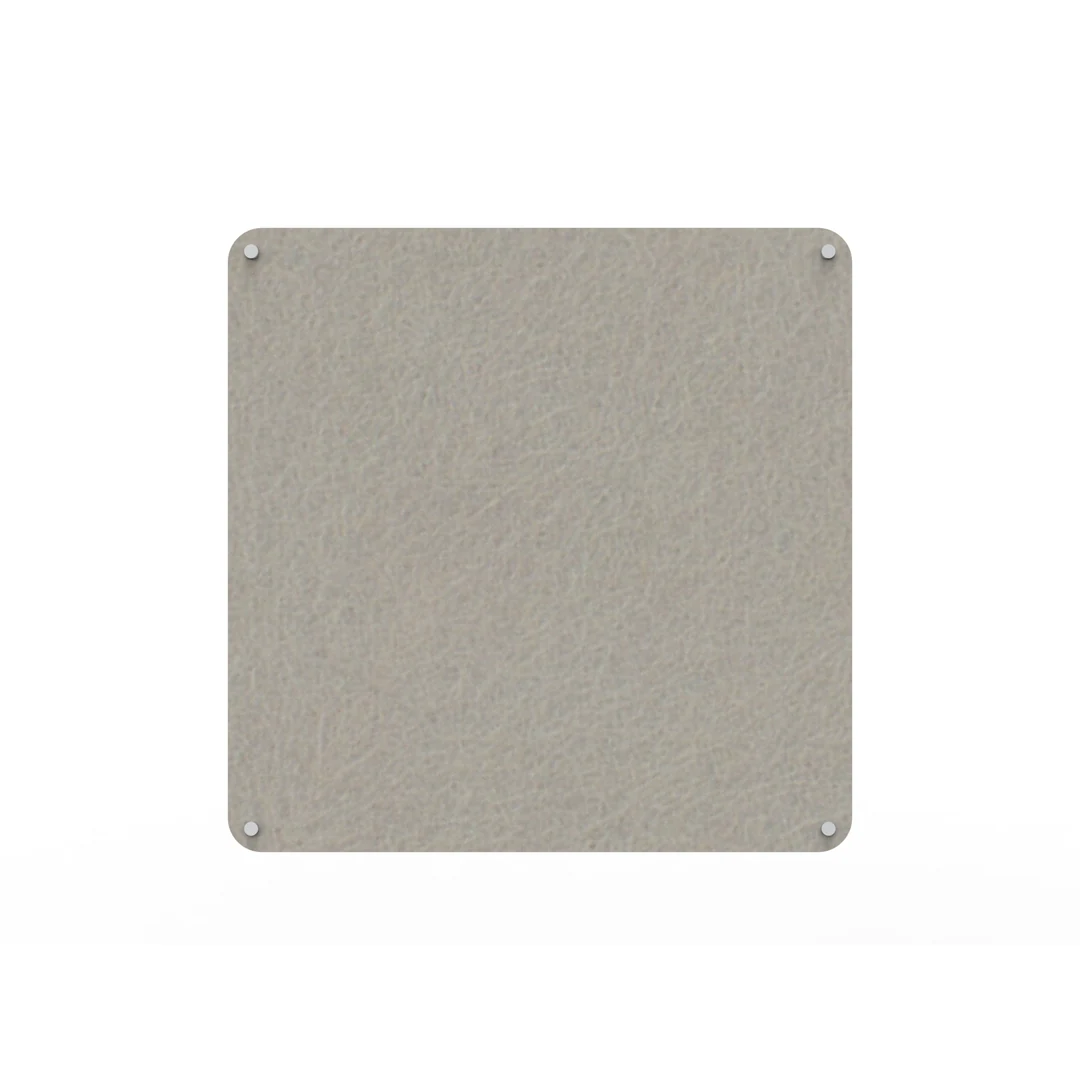

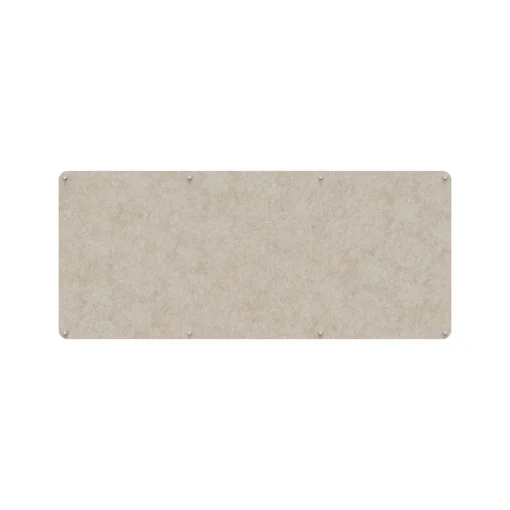

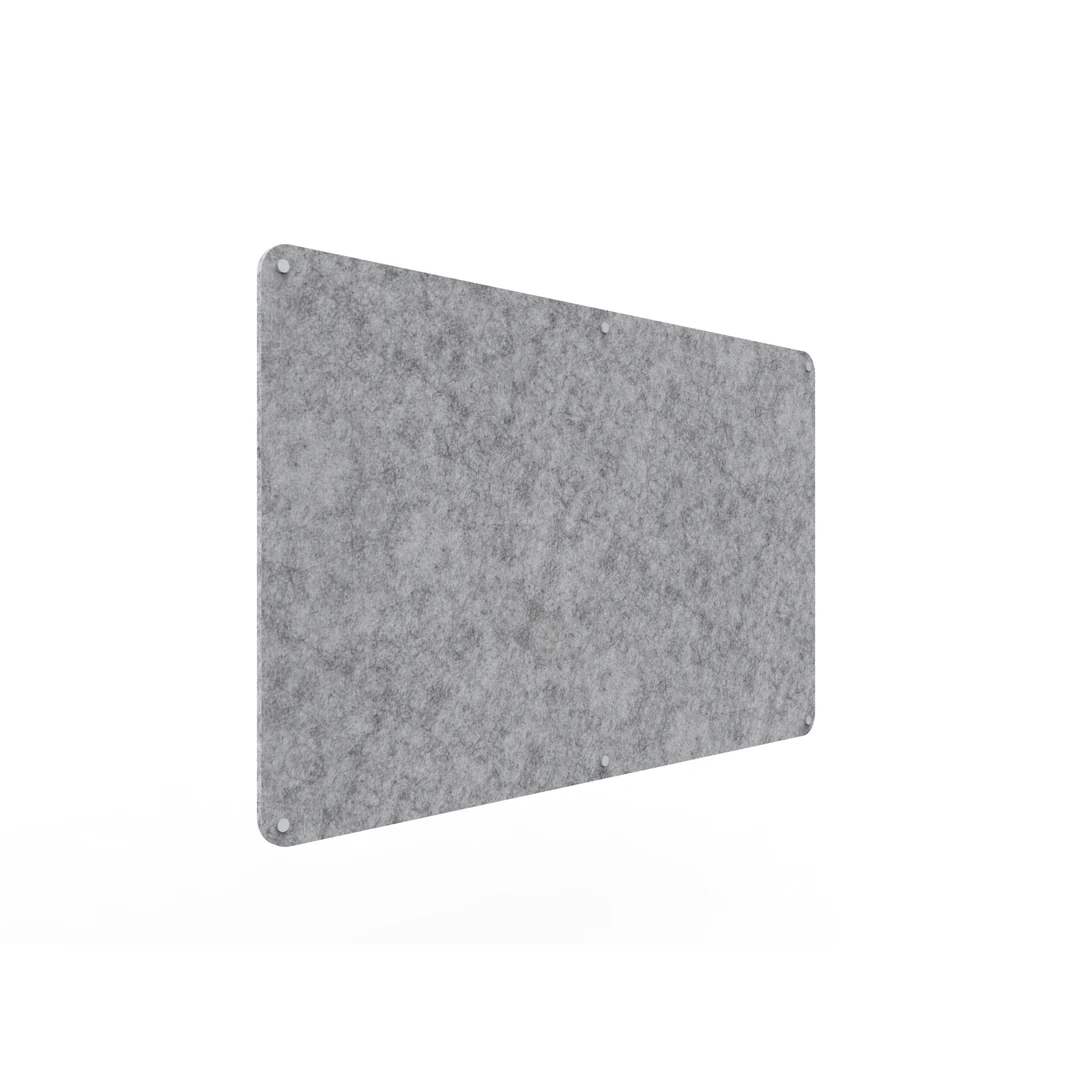

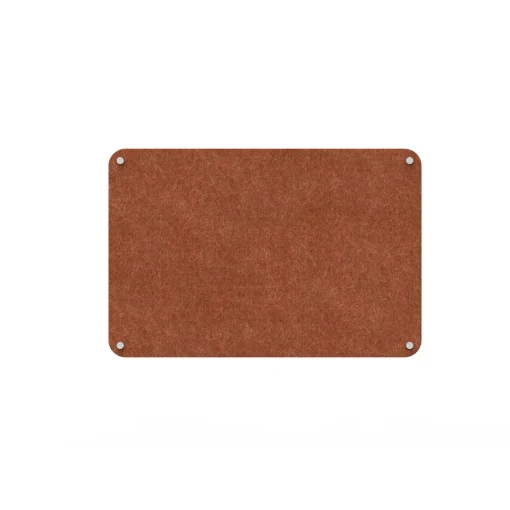

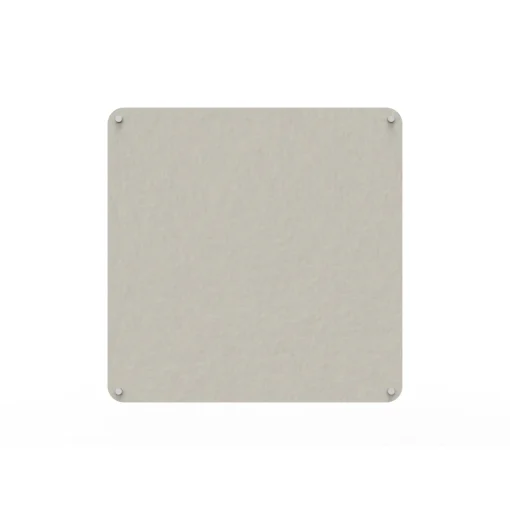

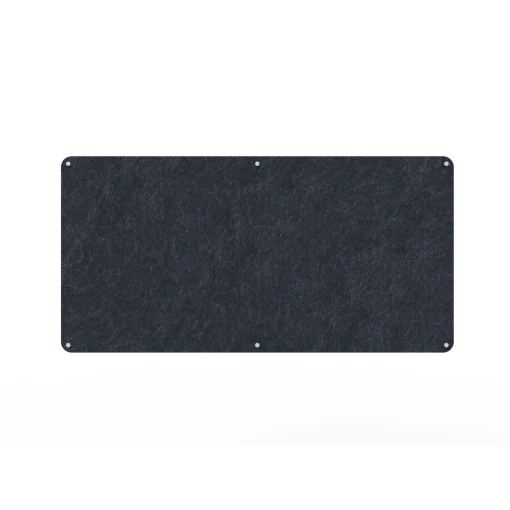

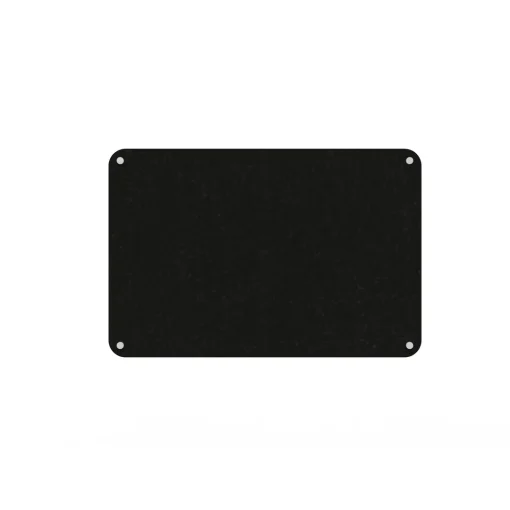

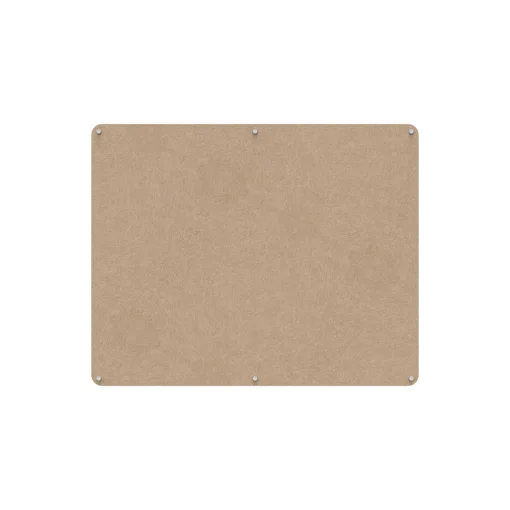

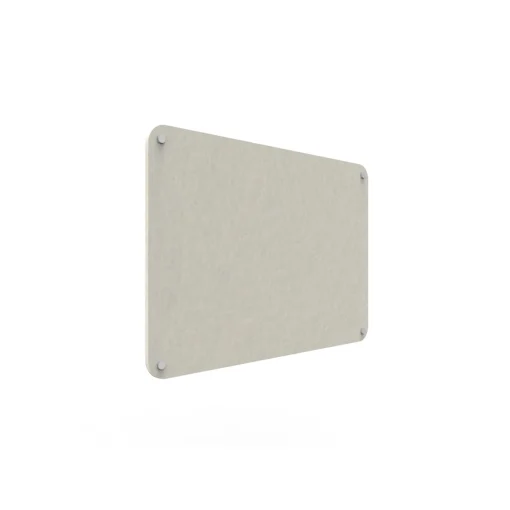

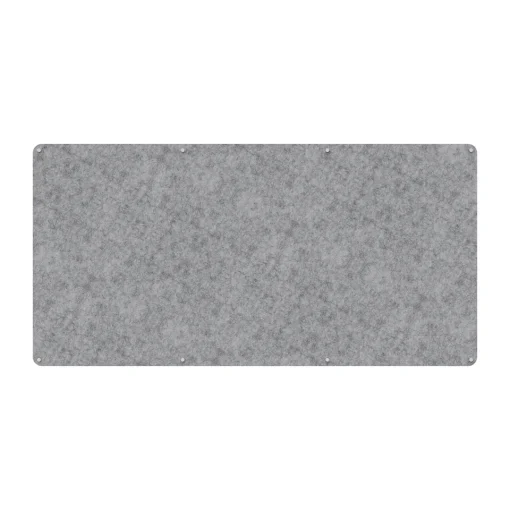

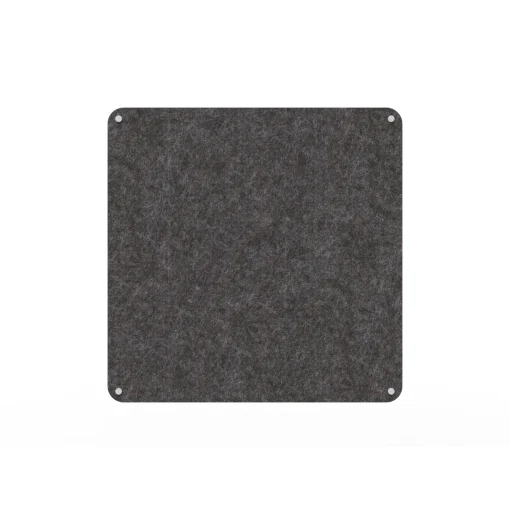

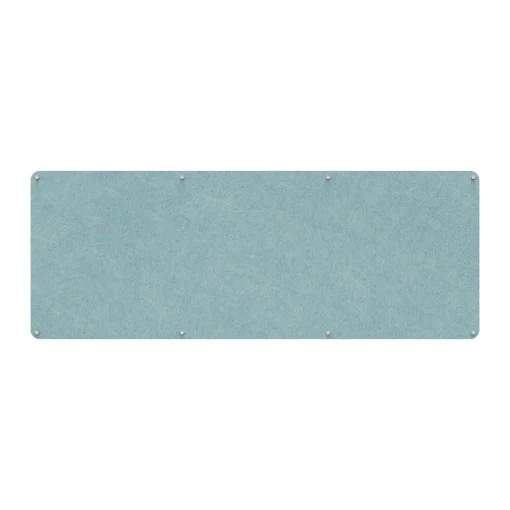

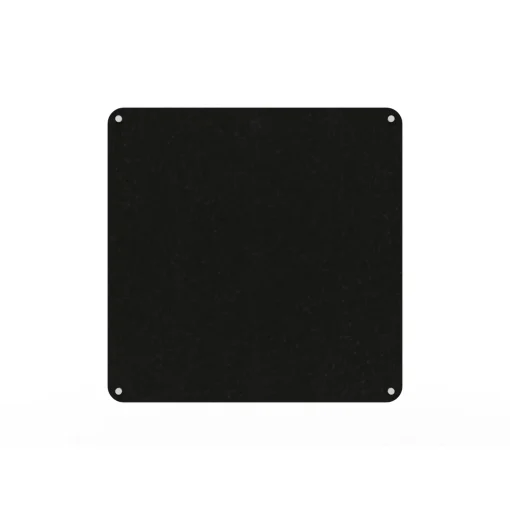

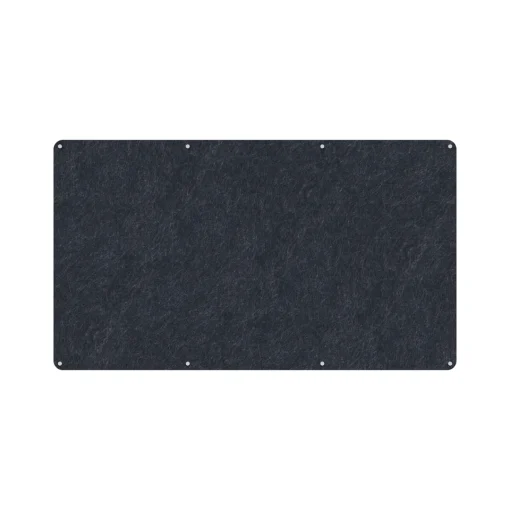

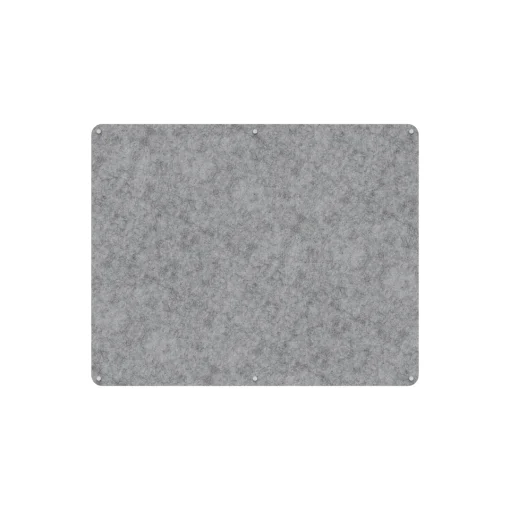

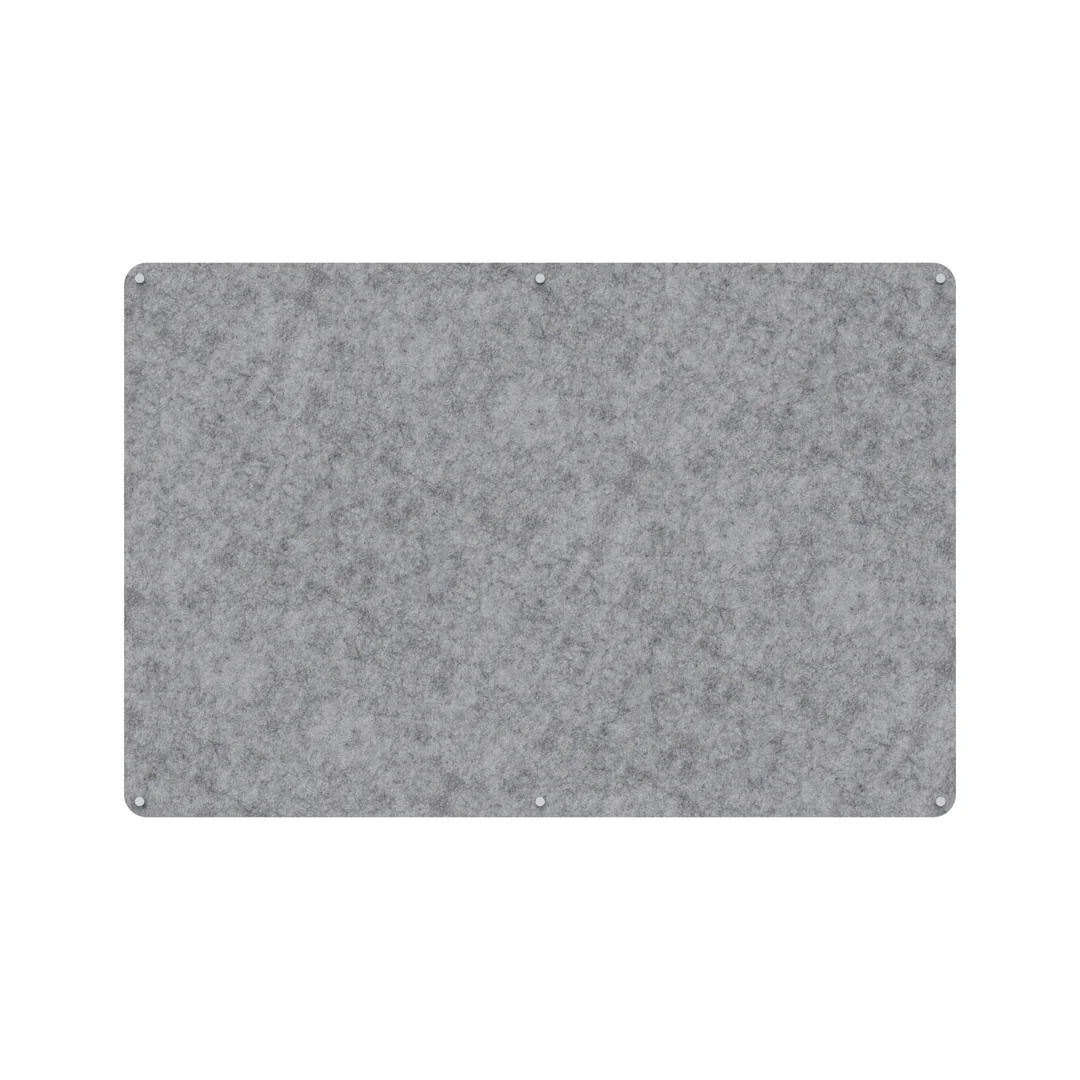

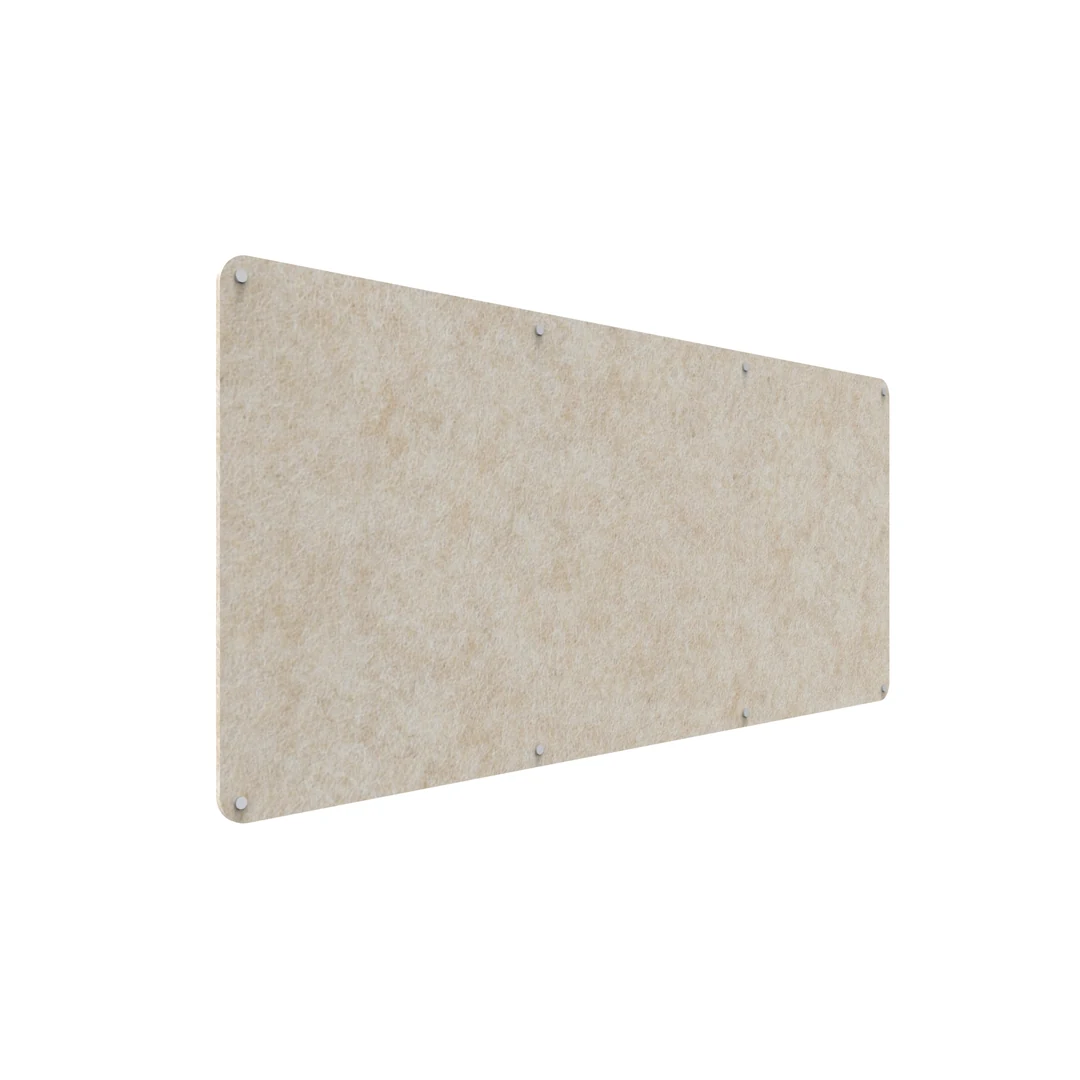

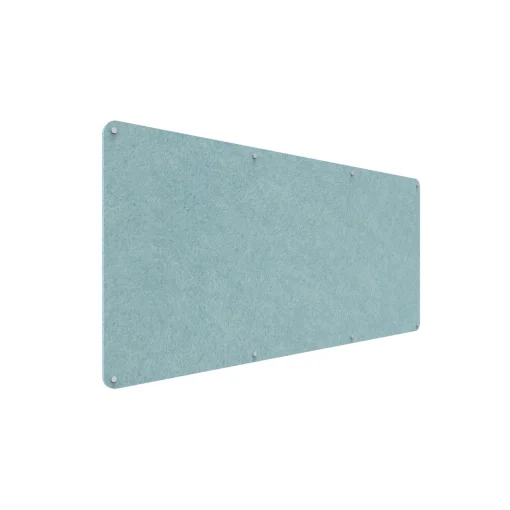

- Sizes: 900mm W x 600mm H, 900mm W x 900mm H, 1200mm W x 900mm H, 1200mm W x 1200mm H, 1500mm W x 900mm H, 1500mm W x 1200mm H, 1800mm W x 900mm H, 1800mm W x 1200mm H, 2100mm W x 900mm H, 2100mm W x 1200mm H, 2400mm W x 900mm H, 2400mm W x 1200mm H
- Acoustic rating: Supplier-listed NRC 0.85
- Fire classification: Group 1 (AS 5637.1), tested to AS ISO 9705-2003 (R2016), as listed by Rapidline
- Sale unit: One pinboard
Mounting Options:
Select No Mounts for the board only, or choose Black Screw Sets or Silver Screw Sets. Each mounting option includes the required number of AH-SSC16 fixings for the selected width: four for 900mm and 1200mm boards, six for 1500mm and 1800mm boards, or eight for 2100mm and 2400mm boards.

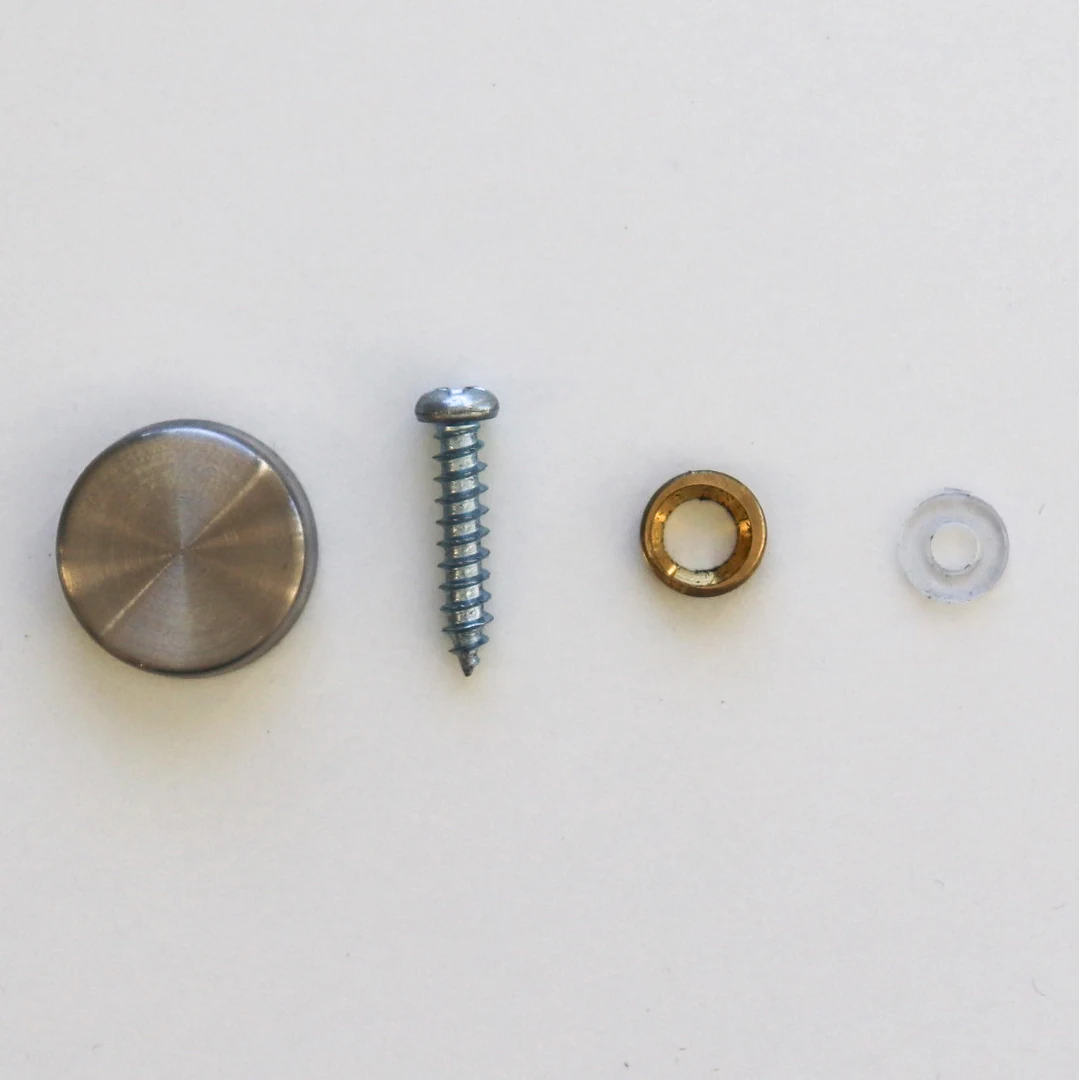

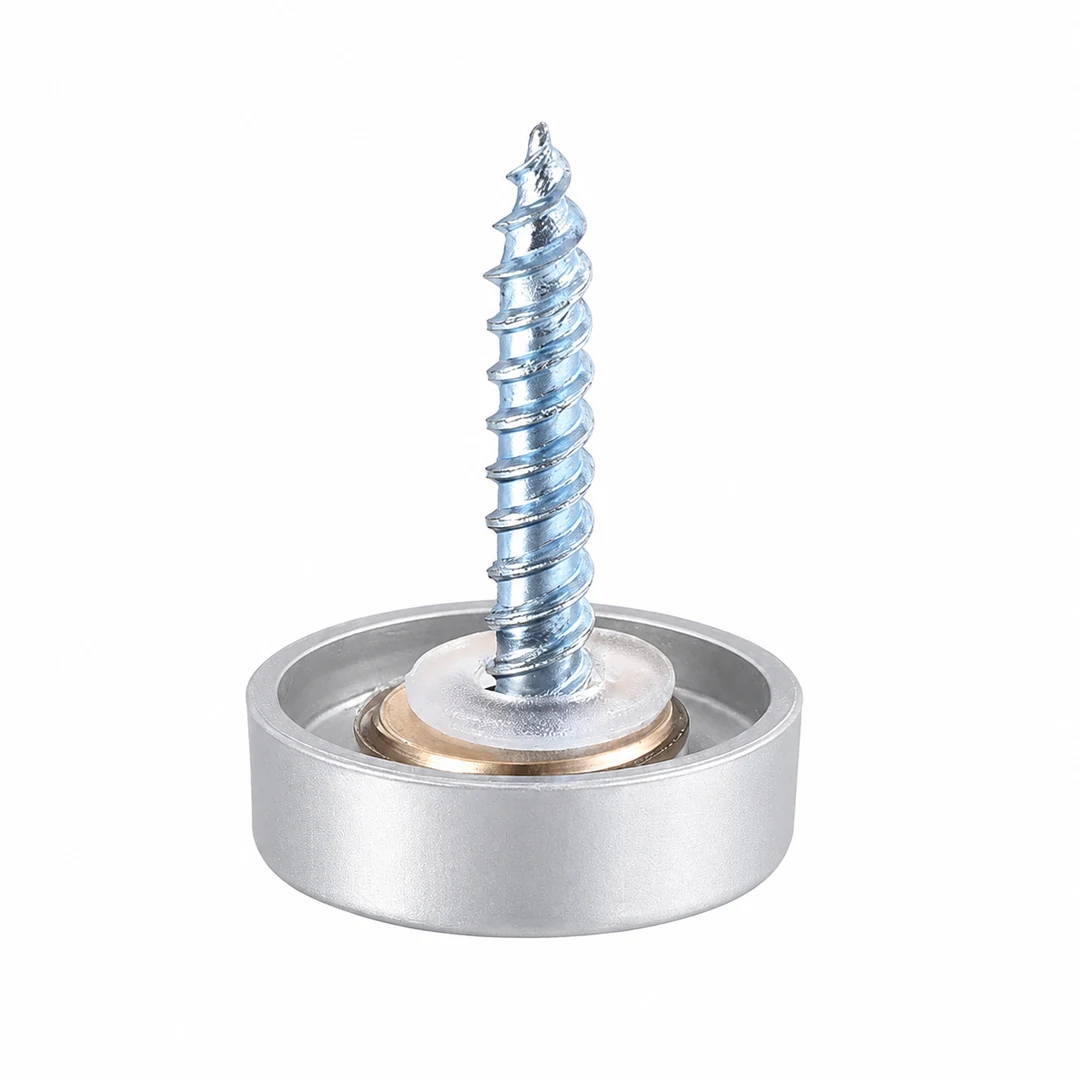

Each fixing set contains one cover cap, one 22mm self-tapping screw, one threaded piece and one rubber washer. The selected option price includes the board and the full set of fixings for that size. Choose wall anchors appropriate to the installation substrate.
Combine display areas with other acoustic solutions for offices and learning spaces when planning sound absorption throughout the room.
