Description
Acouline Span Ripple Acoustic Ceiling Panels combine a rectangular suspended form with a patterned surface for commercial interiors. Positioned above boardroom tables, workstation groups or collaboration areas, they help absorb reflected sound while making the ceiling part of the room’s design.
The Ripple finish adds visual detail across the longer Span format. Two sizes, 1200 x 600mm and 2400 x 1200mm, offer different scales for repeated rows or larger overhead features. Use the panel dimensions and the furniture layout together when planning the spacing, colour and overall extent of the installation.
Manufactured from 100% polyester (PET), the 24mm panels have a supplier-listed Noise Reduction Coefficient (NRC) of 0.85. Their sound absorption supports a more comfortable setting for conversation, meetings and group work. Where the room also needs treatment on vertical surfaces, coordinate the ceiling arrangement with Acouline acoustic wall panels as part of the overall acoustic plan.
Choose from 14 Habitat colours to suit the finishes used throughout the Acouline acoustics range. Rapidline lists a Group 1 fire classification under AS 5637.1 and backs the panels with a 10-year warranty. Select the panel size and mounting option together so the order includes the appropriate number of compatible hanging kits.
Key Features:
- Rectangular suspended acoustic ceiling panels with the Ripple finish
- Helps reduce reflected sound and reverberation in shared interiors
- Sizes: 1200mm x 600mm or 2400mm x 1200mm
- 24mm thick, manufactured from 100% polyester (PET)
- Supplier-listed acoustic rating: NRC 0.85
- 14 Habitat colours to coordinate with your interior
- Suitable for offices, meeting rooms and learning spaces
- Optional ceiling-grid hanging kits supplied in the quantity required for your selected size
- Group 1 fire classification under AS 5637.1, as listed by Rapidline
- Backed by a 10-year warranty
Specifications:
- Material: 100% polyester (PET)
- Sizes: 1200mm x 600mm, 2400mm x 1200mm
- Thickness: 24mm
- Acoustic rating: NRC 0.85
- Fire classification: Group 1 (AS 5637.1), tested to AS ISO 9705-2003 (R2016), as listed by Rapidline
- Sale unit: One panel
Mounting Options:
Choose No Mounts for the panel only, or select the ceiling-grid plug-fix option to include the required number of AH-CGPLUG24SL hanging kits. The option price includes the panel and those kits.
Hanging kit quantities: 1200mm x 600mm: 4 kits; 2400mm x 1200mm: 6 kits. Ceiling-grid mounting requires a suitable grid with adequate load capacity. Rapidline also specifies AH-STAPLUG24SL for suitable solid-ceiling installations; contact us to arrange that hardware.
Explore our suspended ceiling acoustic solutions to plan the shapes and formats for your fitout.

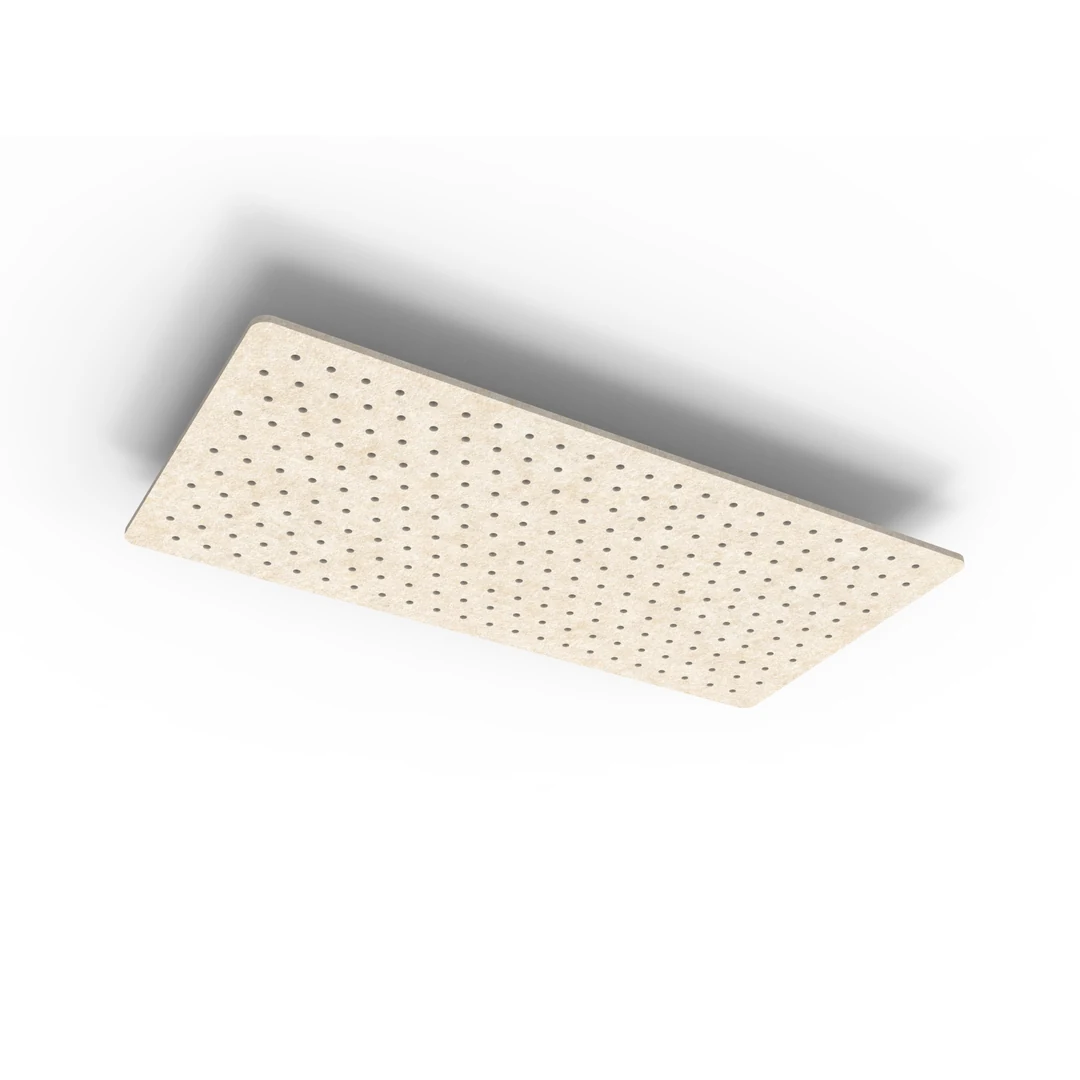

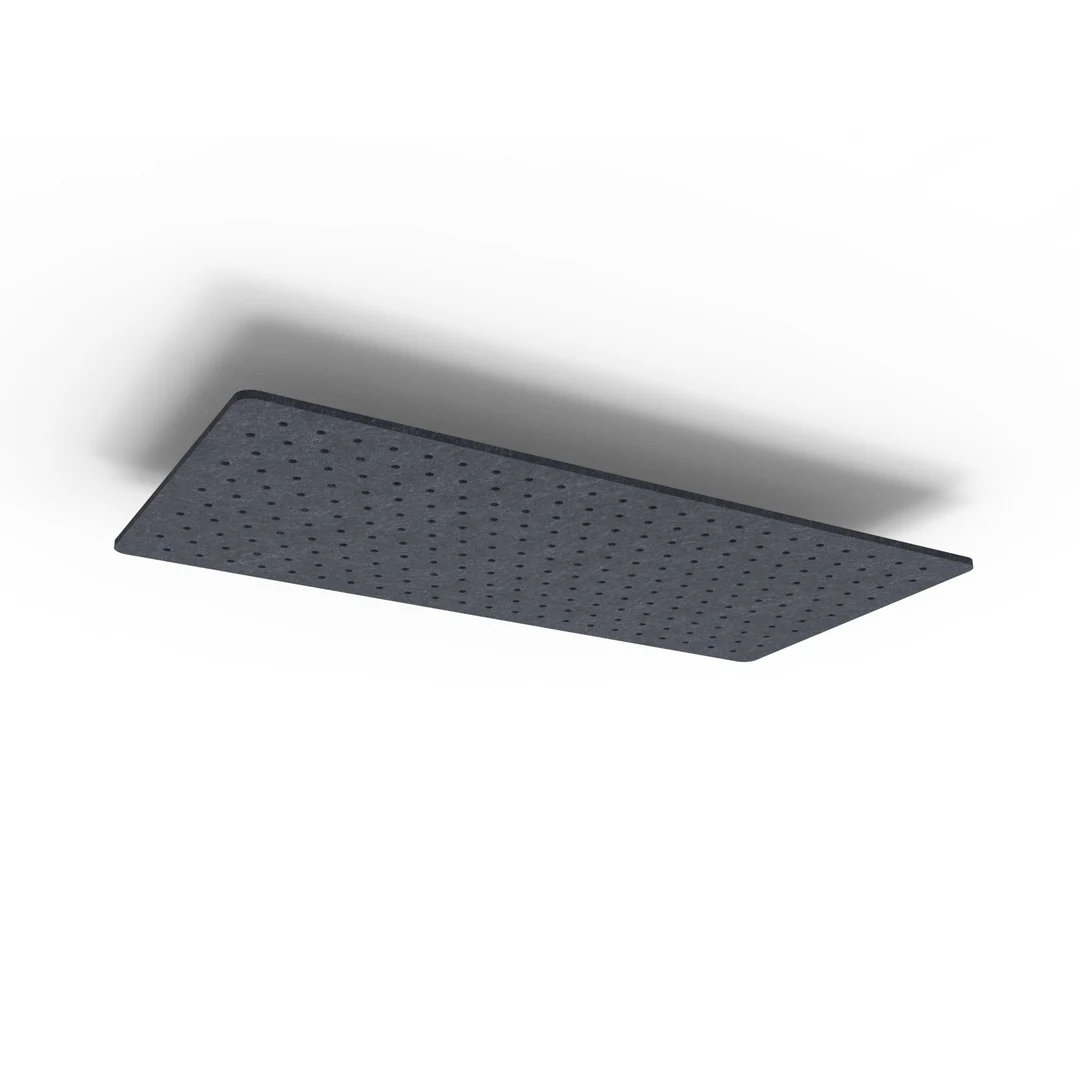

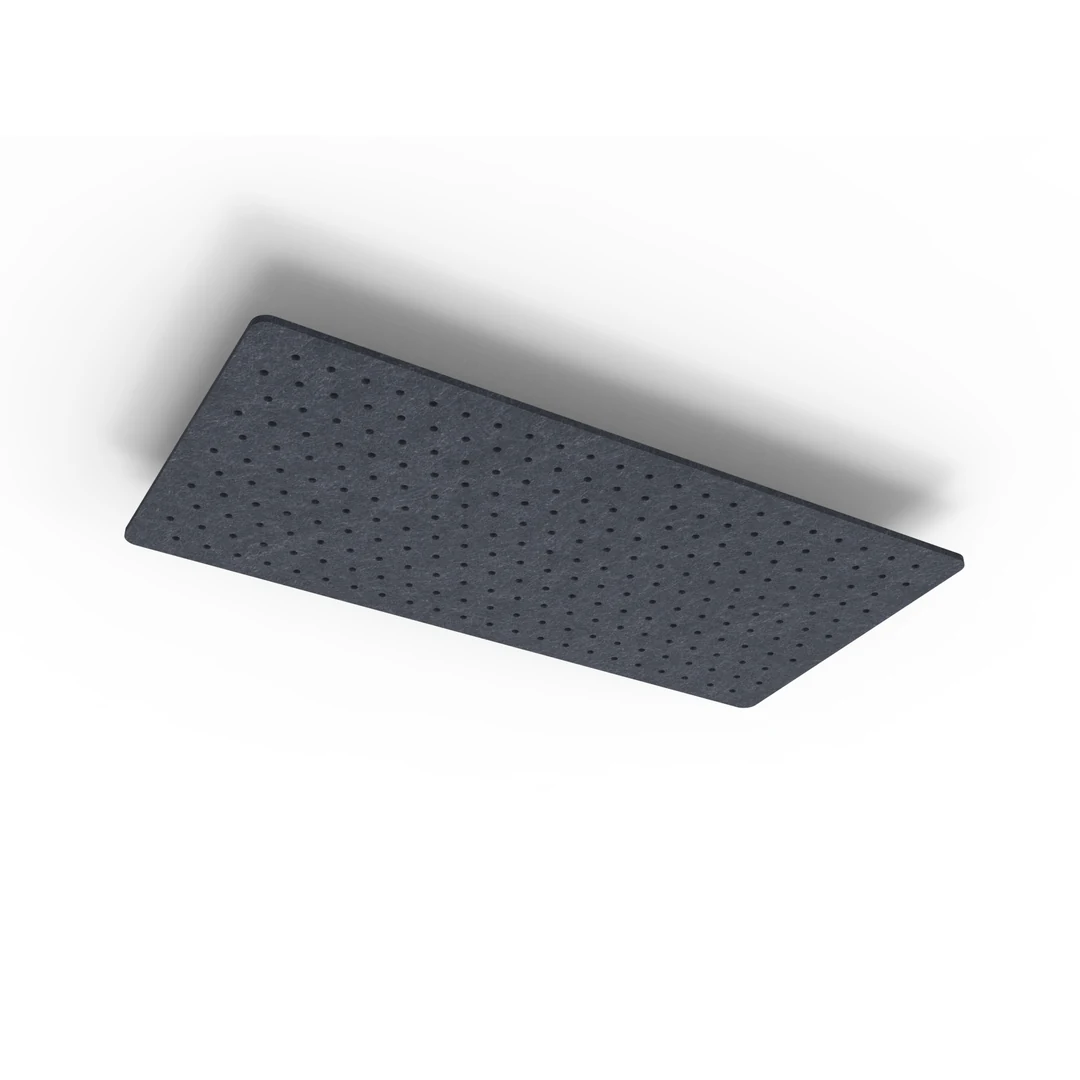

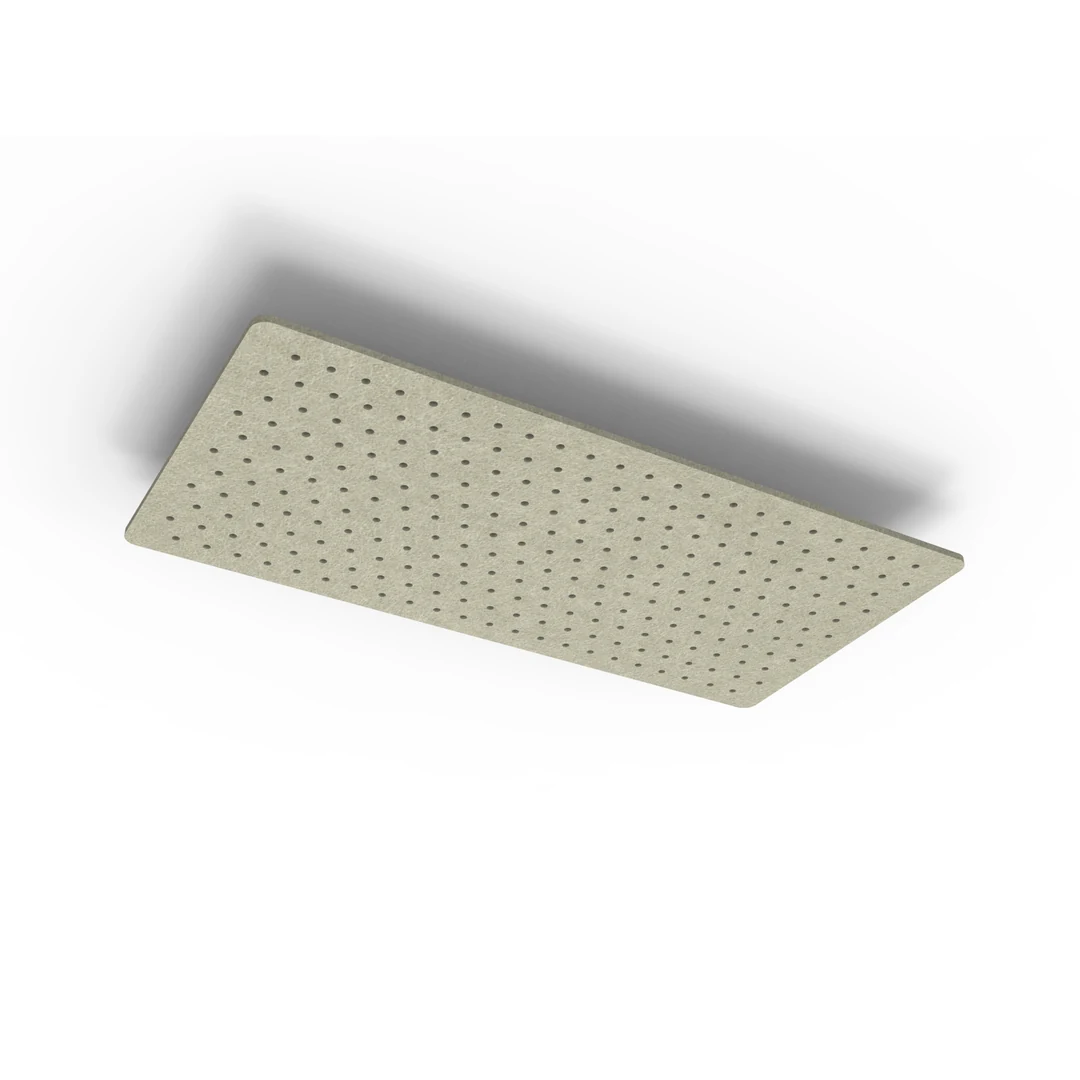

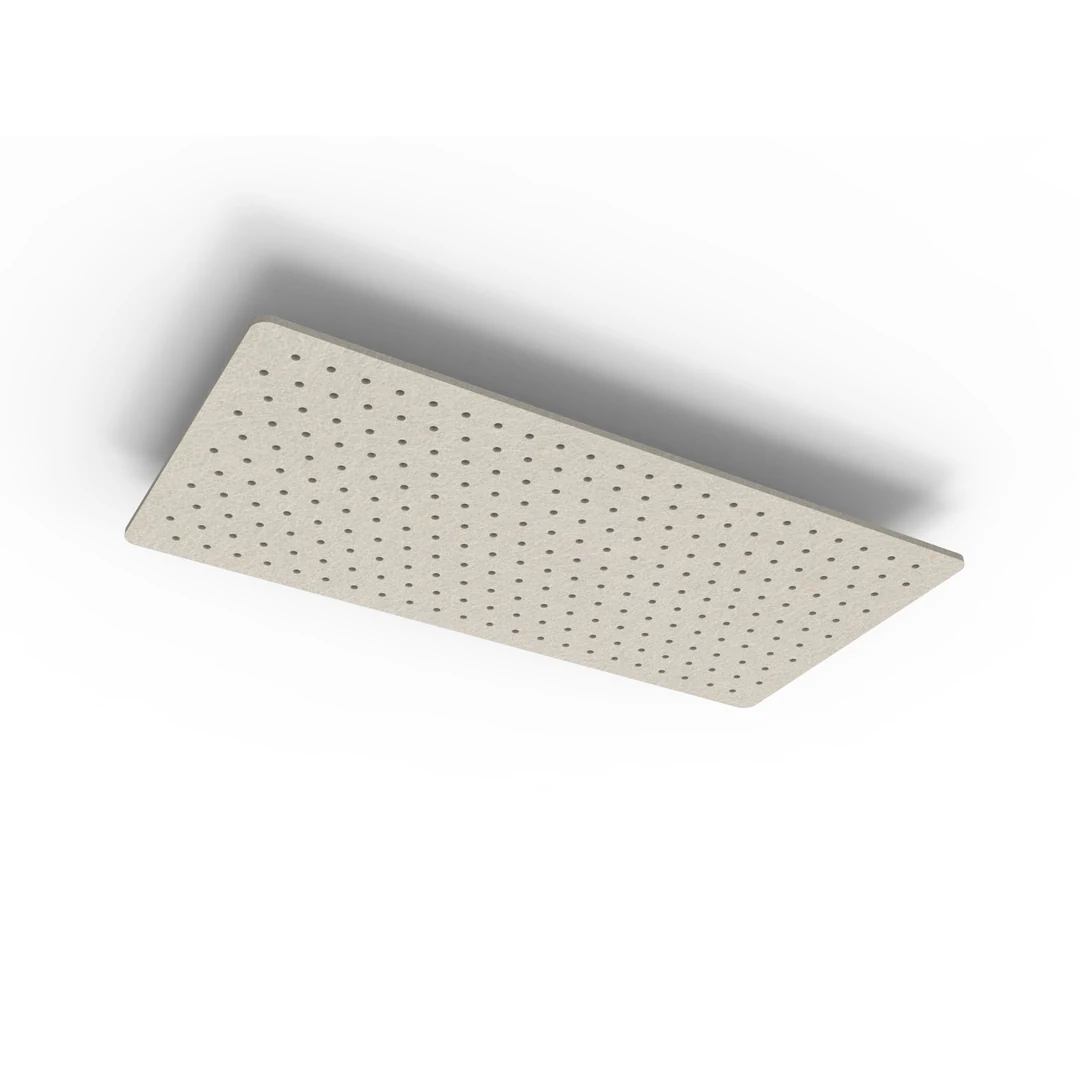

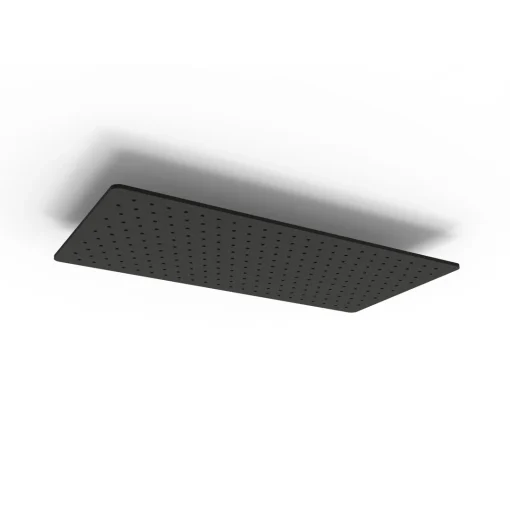

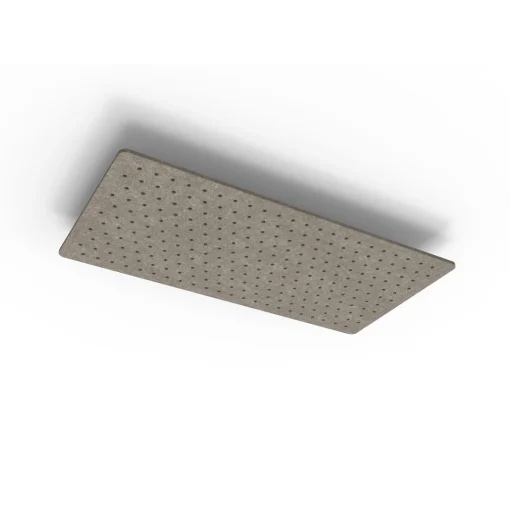

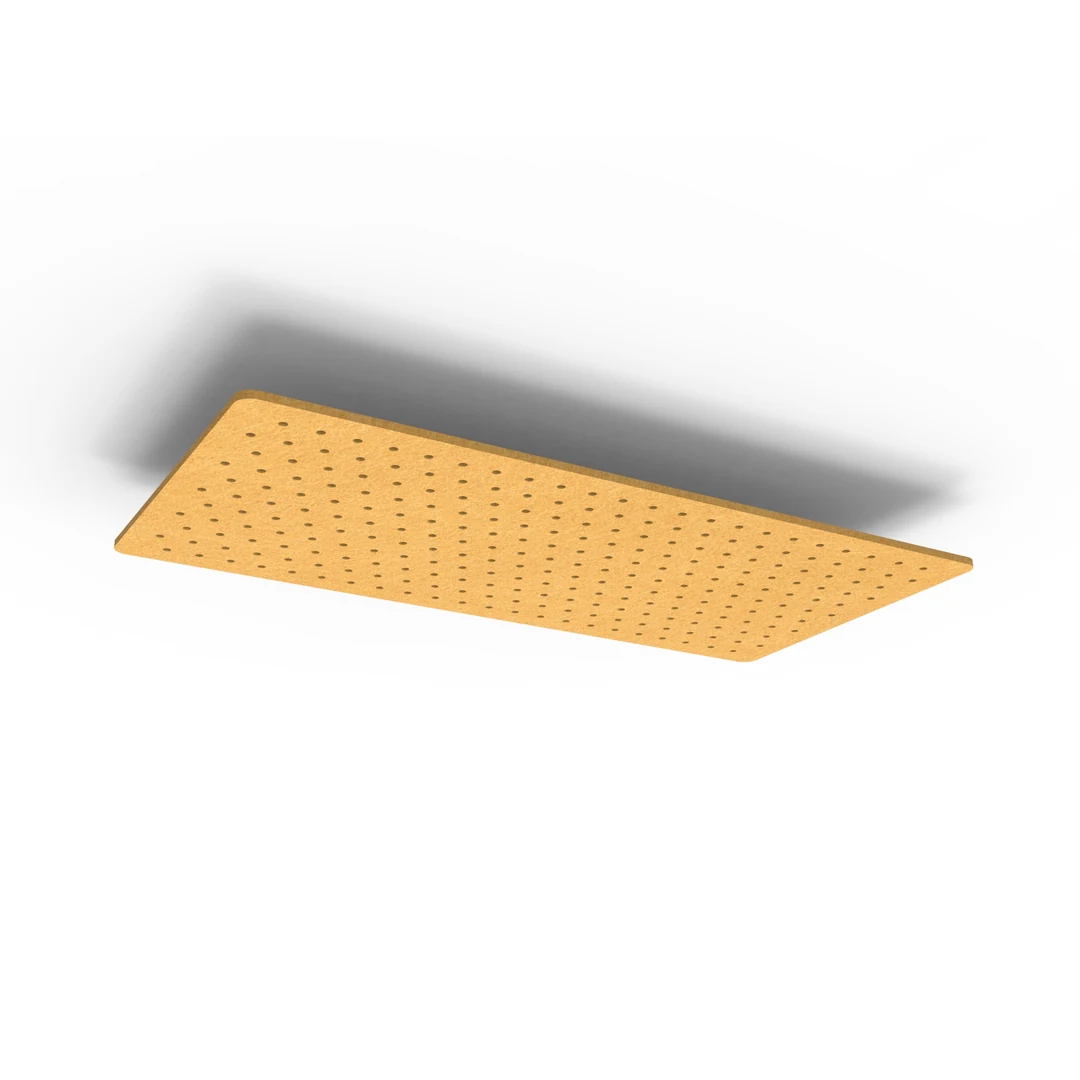

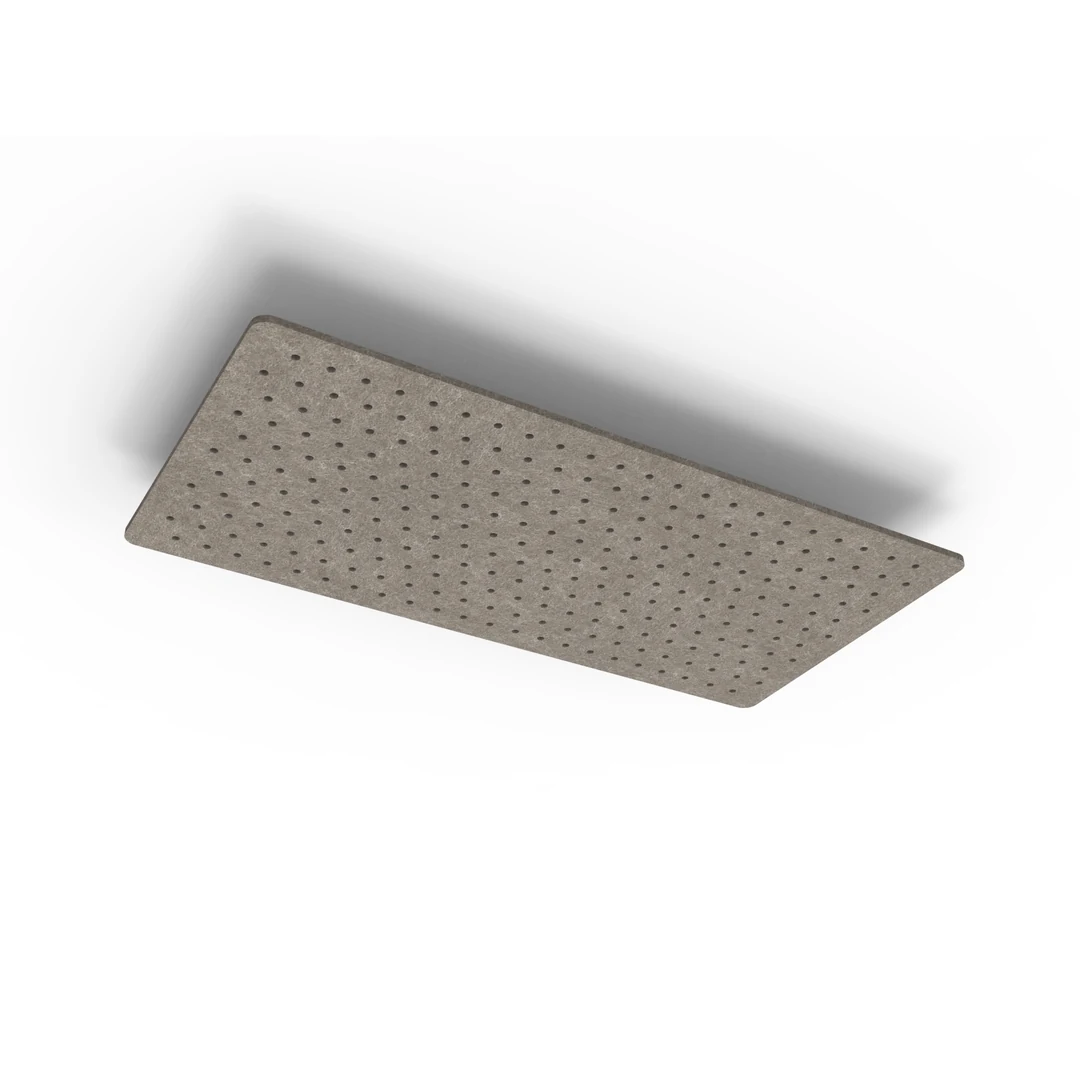

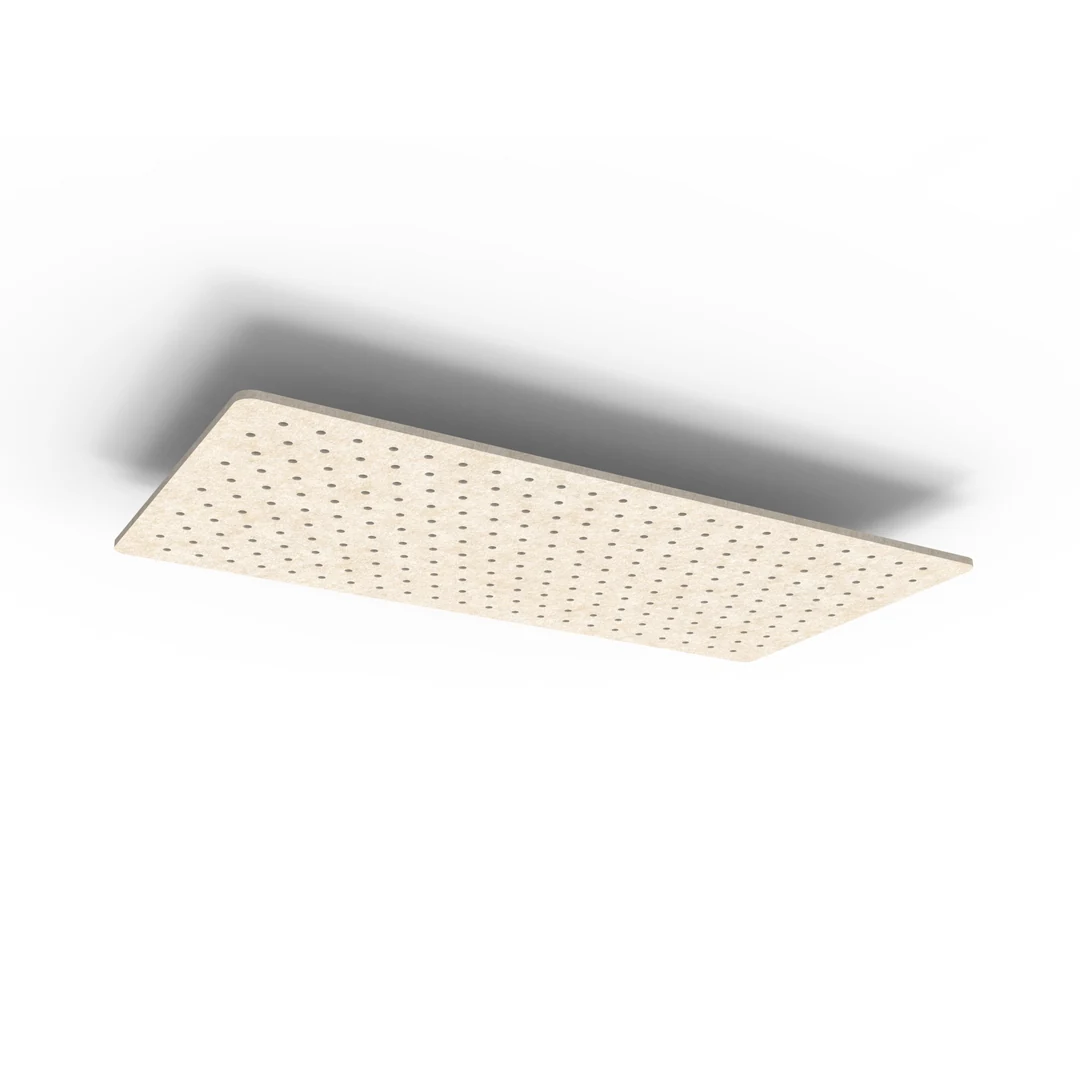

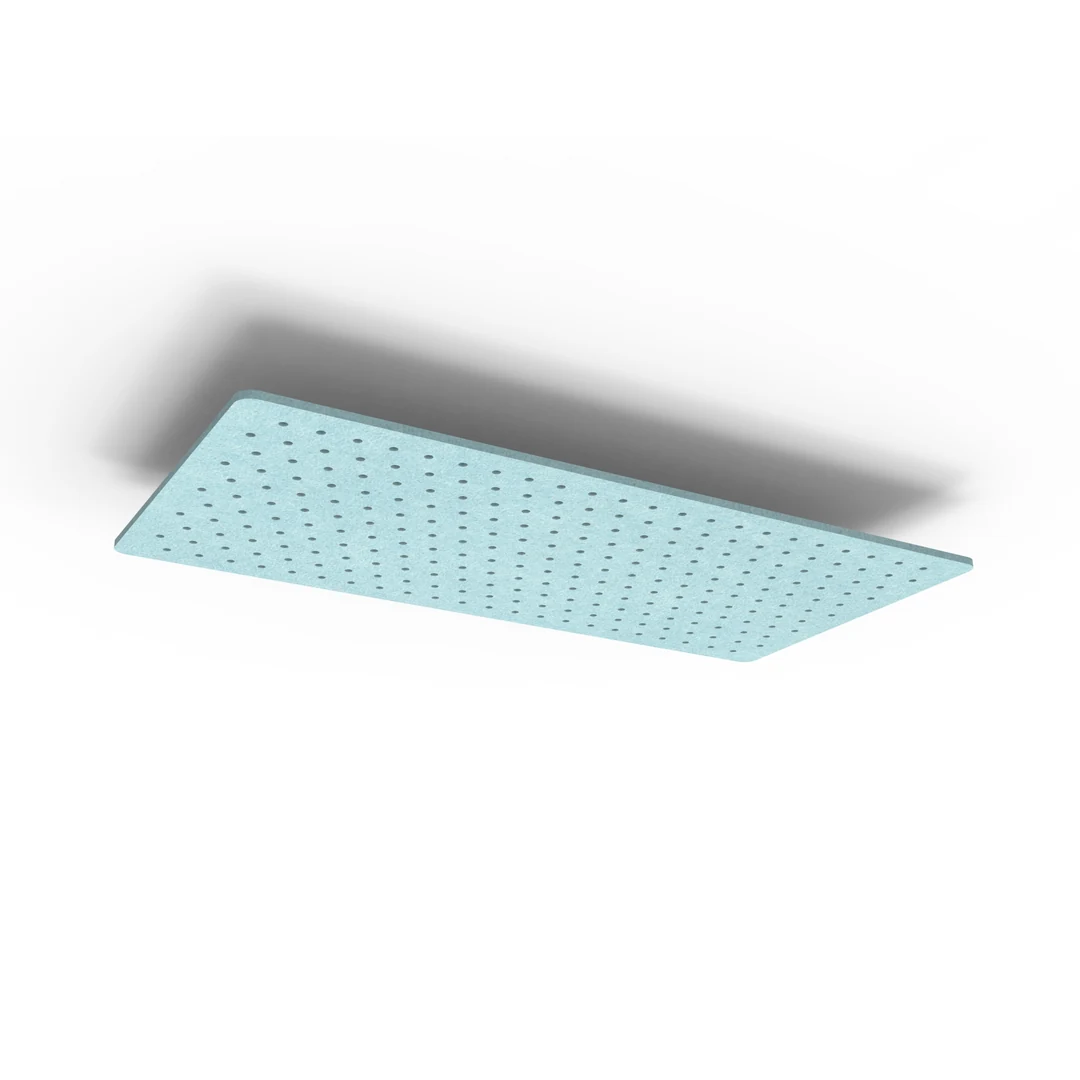

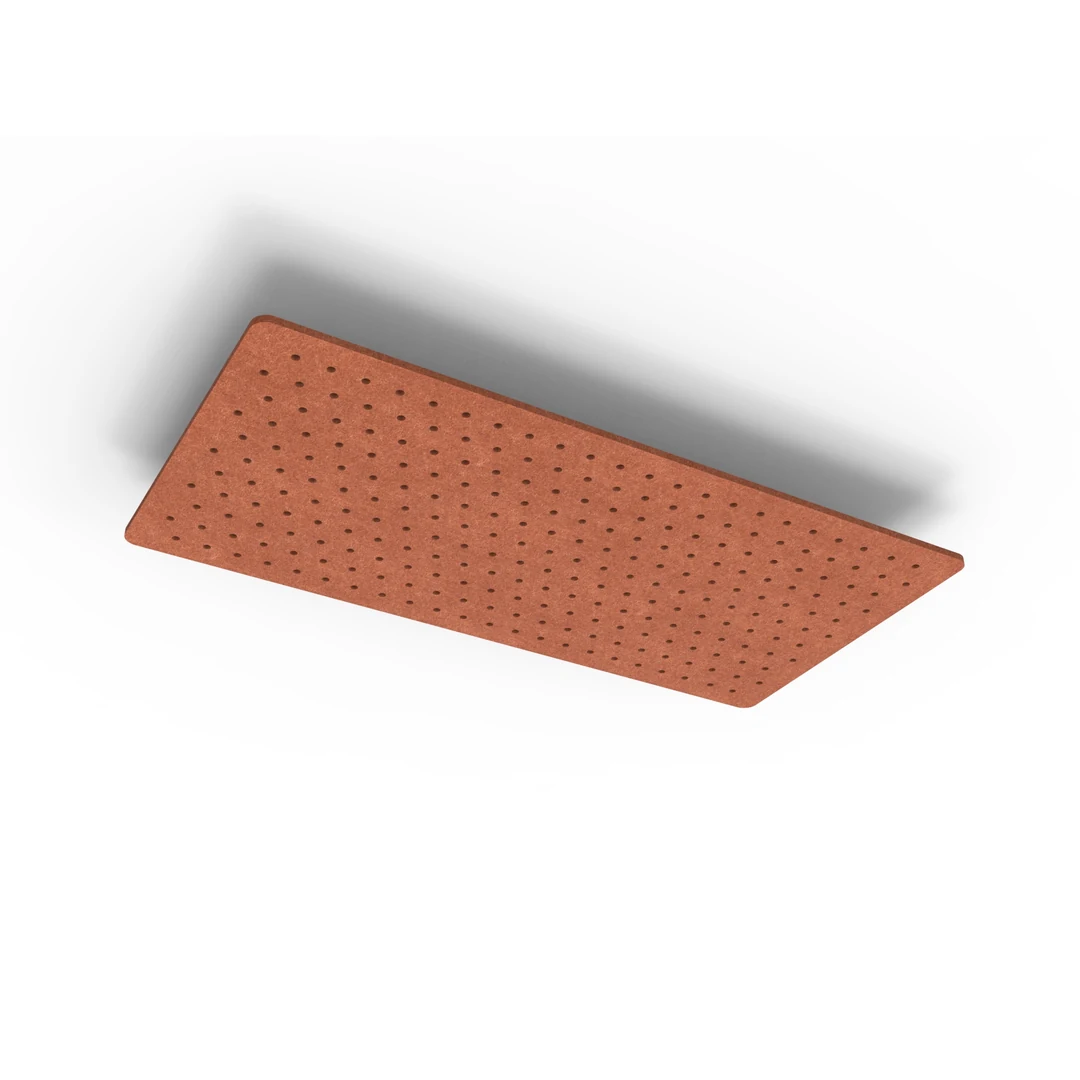

Images show representative sizes and colour examples from this product range. Refer to your selected dimensions when ordering.
