Description

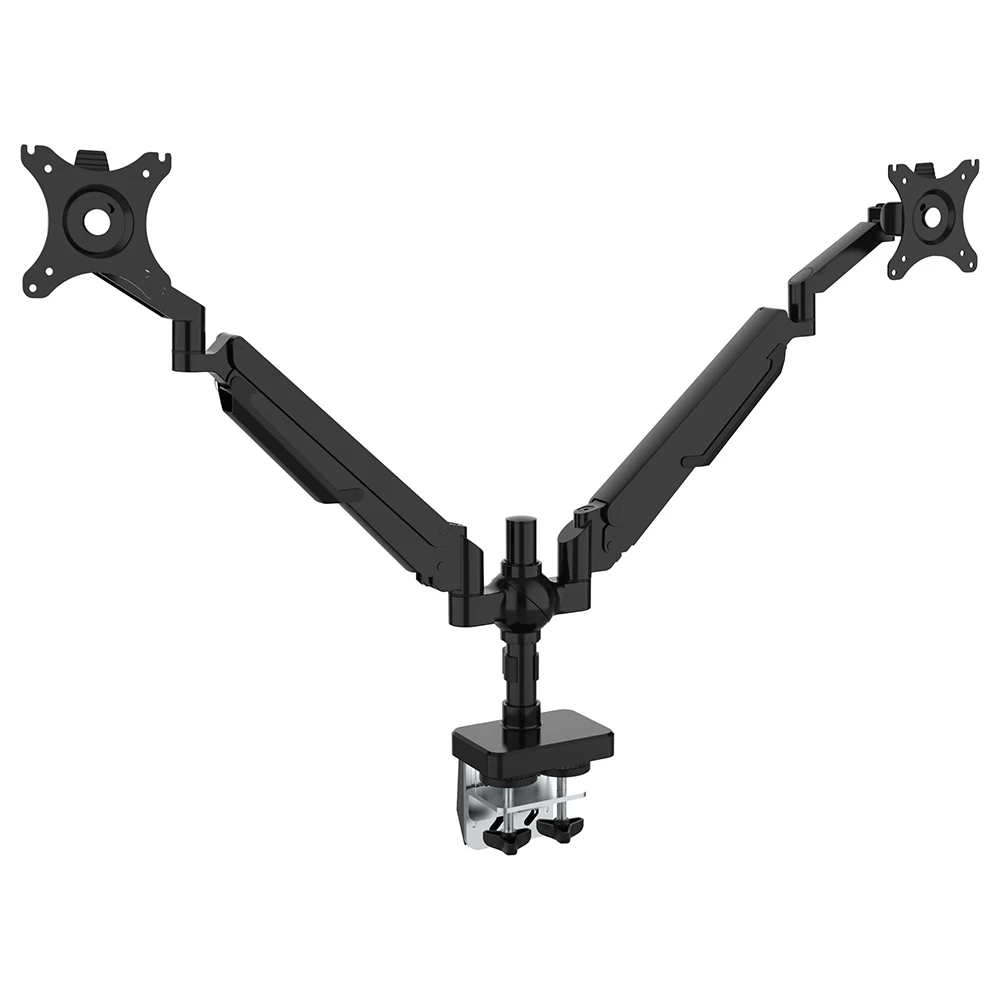

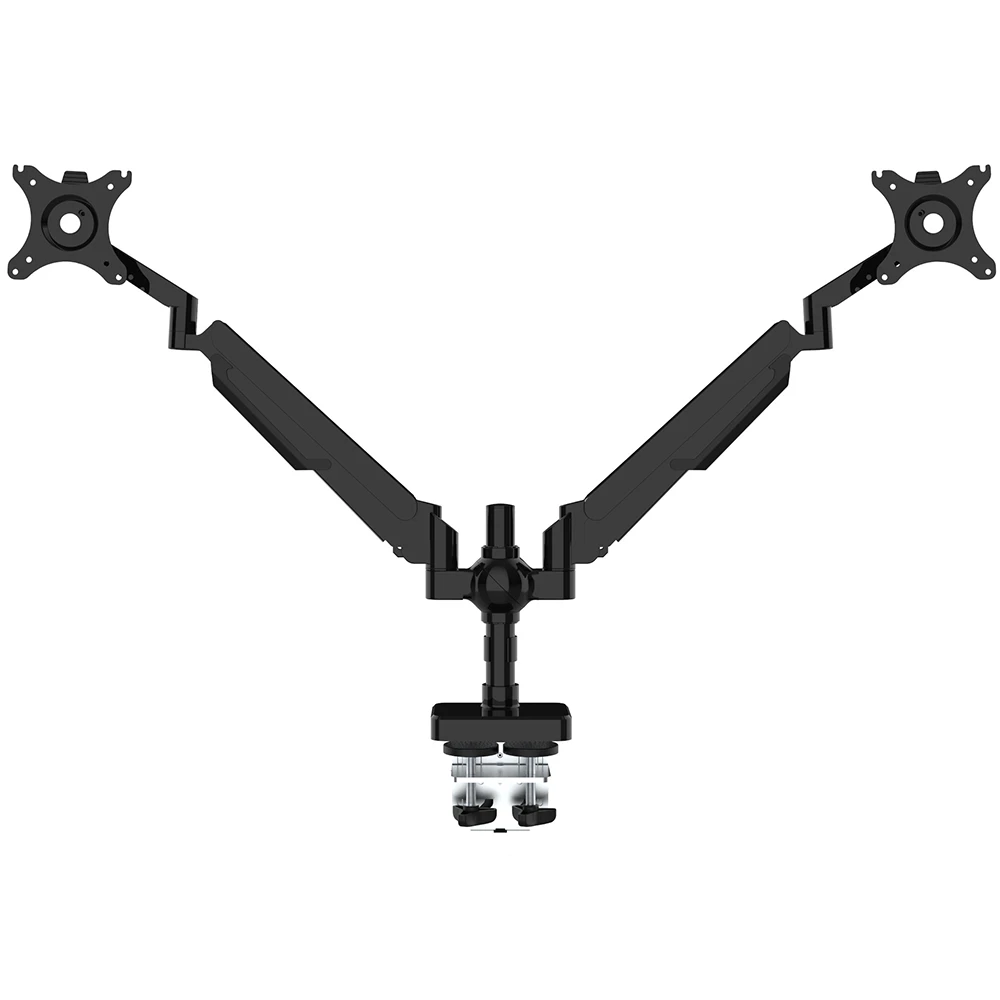

The Core Dual Gas Spring Monitor Arm provides adjustable desk-mounted support for two monitors measuring between 17 and 30 inches. Each arm supports a compatible screen weighing from 2kg to 9kg, making the system suitable for commercial workstations that require a two-screen configuration.
The two gas-spring arms allow the monitor positions to be adjusted independently. Each screen can be tilted from −90 to +15 degrees and rotated through 360 degrees, supporting portrait, landscape and intermediate orientations.
Quick-release VESA plates simplify attaching or removing compatible monitors during installation and equipment changes. Each plate accommodates 75 × 75mm and 100 × 100mm mounting patterns.
The arms provide a maximum individual reach of approximately 495mm and a maximum illustrated height of 560mm. Clamp and grommet-hole fixing kits are included for installation on compatible work surfaces up to 60mm thick.
Finished in black, the Core Dual monitor arm is backed by a ten-year manufacturer’s warranty. Before ordering, confirm that both monitors individually meet the screen-size, weight and VESA requirements. The desk must also be capable of supporting the combined weight of the arm and both displays. Plan cable management options alongside the arm so leads can move through its adjustment range without pulling on the connections.
Key features and benefits
- Dual-screen configuration: Supports two monitors from one desk-mounted base.
- Independent gas-spring arms: Allows each screen position to be adjusted separately.
- Screen compatibility: Designed for two monitors measuring between 17 and 30 inches.
- Verified per-screen capacity: Supports monitors weighing from 2kg to 9kg each.
- Quick-release VESA plates: Simplify monitor installation, removal and equipment changes.
- Two VESA patterns: Accommodates 75 × 75mm and 100 × 100mm mounting points.
- Adjustable tilt: Provides a tilt range from −90 to +15 degrees for each screen.
- Full rotation: Allows each monitor to rotate through 360 degrees.
- Flexible orientation: Supports portrait, landscape and intermediate screen positions.
- Extended positioning range: Each arm provides up to approximately 495mm of horizontal reach.
- Two desktop mounting methods: Includes both clamp and grommet-hole fixing kits.
- Desktop space management: Raises both displays above the work surface.
- Verified warranty: Covered by a ten-year manufacturer’s warranty.
